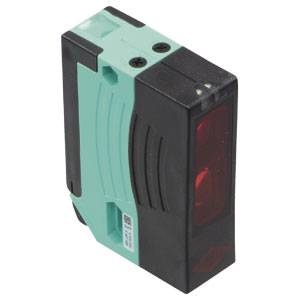

Pepperl+Fuchs Light barrier RLK28-55-Z/31/116 134130 Polarisation filter 1 pc(s)
EAN:
Part number:
Item no:
Product type
Light barrier
Functions
Polarisation filter
Max. operating voltage
240 V DC/AC
Connector
Compartment with 8 spring-loaded connectors
Type
RLK28-55-Z/31/116
Datasheet (PDF)
Technical specifications
- Light Spot Diameter: approx. 290 mm at a distance of 17 m, switching voltage max. 250 V AC/DC, limit range: 21m, type: bright/dark switch, switchable, operating range: 0 m-17m, switching current: 2 A
- Product type
Light barrier
- Type
RLK28-55-Z/31/116
- Functions
Polarisation filter
- Operating voltage
240 V DC/AC
- Min. operating voltage
12 V DC/AC
- Max. operating voltage
240 V DC/AC
- Operating voltage
12 - 240 V DC/AC
- Response time
20 ms
- Switching frequency
25 Hz
- Connector
Compartment with 8 spring-loaded connectors
- Enclosure material
Plastic
Acrylonitrile butadiene styrene
- Transmitter type
LED red
21 m
IP67
- Min. temperature
-40 °C
- Max. temperature
+60 °C
- Width
25.8 mm
- Height
88 mm
- Depth
65.5 mm
- Dim
(W x H x D) 25.8 x 88 x 65.5 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2131277 Pepperl+Fuchs Light barrier RLK28-55-Z/31/116 134130 Polarisation filter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2131277 Pepperl+Fuchs Light barrier RLK28-55-Z/31/116 134130 Polarisation filter 1 pc(s)
Conformity certificate
Conformity certificate 2131277 Pepperl+Fuchs Light barrier RLK28-55-Z/31/116 134130 Polarisation filter 1 pc(s)
Description
Reflection light beam with polarisation filter
This text is machine translated.
This text is machine translated.
Hints
For more information on this 134130, please refer to its datasheet under 'downloadable documents'
