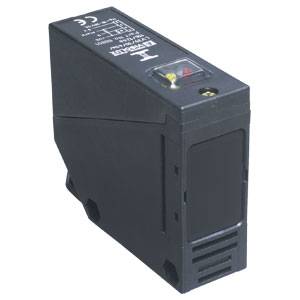

Pepperl+Fuchs Light barrier RLK39-54-Z/31/40a/116 088823 Polarisation filter, Timer, Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Light barrier
Functions
Polarisation filter
Timer
Switch (light-ON/dark-ON)
Max. operating voltage
240 V DC
Connector
PG9 terminal compartment
Datasheet (PDF)
Technical specifications
- Switching voltage 240 V/AC, 150 V/DC, limit range: 6 m, type: bright/dark switch, operating range: 0 m-5m, switching current 3 A
- Packaging type
Single
- Product type
Light barrier
- Type
RLK39-54-Z/31/40a/116
- Functions
Polarisation filter
Timer
Switch (light-ON/dark-ON)
- Operating voltage
240 V DC
- Min. operating voltage
12 V DC
- Max. operating voltage
240 V DC
- Operating voltage
12 - 240 V DC
- Response time
20 ms
- Outputs
Relay
- Connector
PG9 terminal compartment
- Enclosure material
PBT
- Transmitter type
LED red
6 m
IP67
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- Width
25 mm
- Height
64 mm
- Depth
75 mm
- Dim
(W x H x D) 25 x 64 x 75 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2131290 Pepperl+Fuchs Light barrier RLK39-54-Z/31/40a/116 088823 Polarisation filter, Timer, Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2131290 Pepperl+Fuchs Light barrier RLK39-54-Z/31/40a/116 088823 Polarisation filter, Timer, Switch (light-ON/dark-ON) 1 pc(s)
Description
Reflection light barrier for standard applications, polarizing filter, Range 7 m, red light, timer, sensitivity adjuster, light/dark switching, relay output, clamping area
This text is machine translated.
This text is machine translated.
Hints
For more information on this 088823, please refer to its datasheet under 'downloadable documents'
