Name: Pepperl+Fuchs One-way light barrier OBE12M-R100-SEP-IO-0,3M-V3 281002 Switch (light-ON/dark-ON) 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2629273

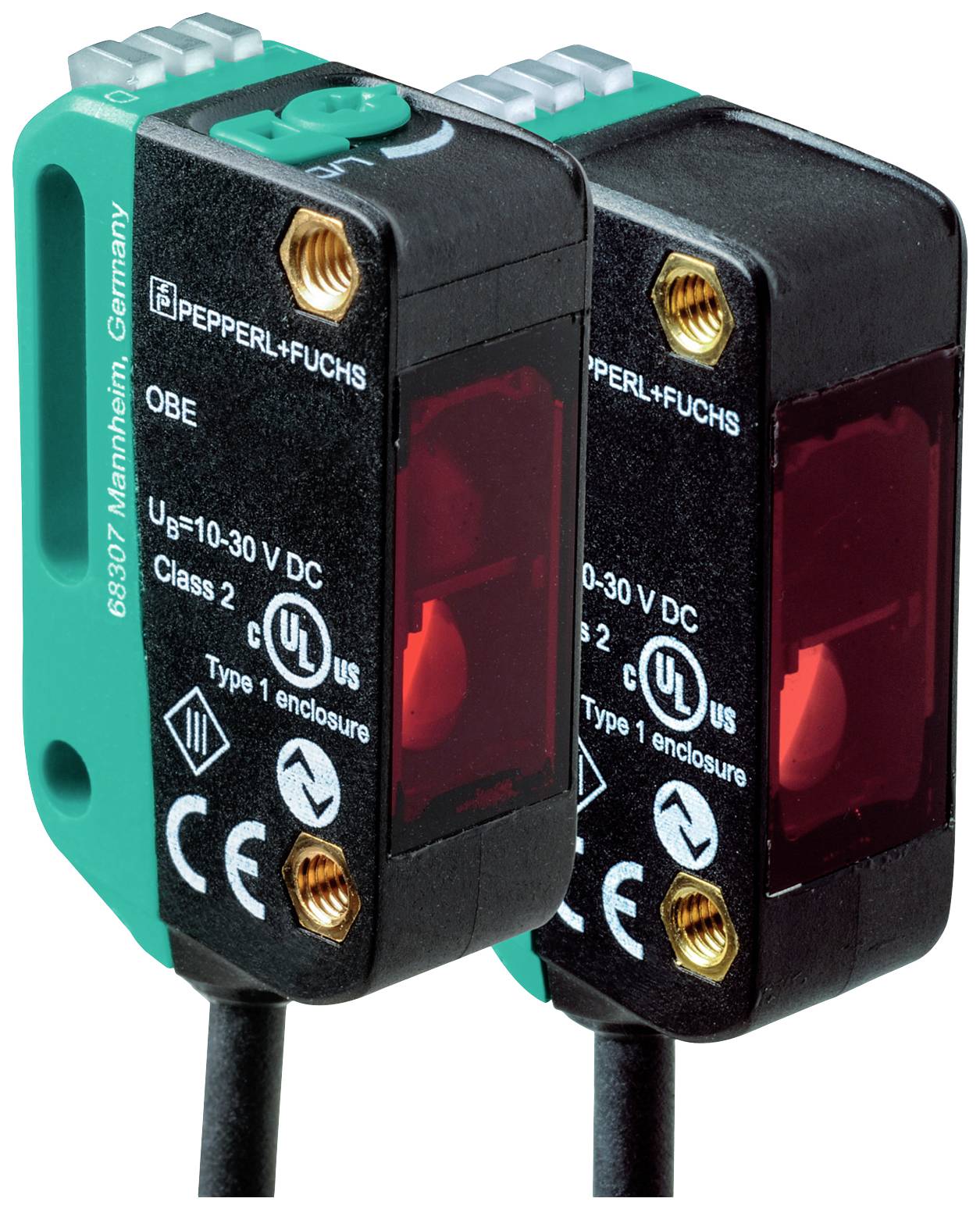

Two black optical sensors with red light windows are shown, each labelled with cables and technical specifications.

Image similar

Product type

One-way light barrier

Functions

Switch (light-ON/dark-ON)

Max. operating voltage

30 V DC

Connector

Type

OBE12M-R100-SEP-IO-0,3M-V3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: One-way light barrier

Type: OBE12M-R100-SEP-IO-0,3M-V3

Functions: Switch (light-ON/dark-ON)

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 0.5 ms

Contact type: 1 PNP

Outputs: NPN NO
PNP NC

Switching frequency: 1000 Hz

Connector: M8

Cable length: 0.3 m

Enclosure material: Polycarbonate (PC)

Transmitter type: LED red

: 15 m

Features: LED indicator

Min. temperature: -40 °C

Max. temperature: 60 °C

Width: 11 mm

Height: 37.1 mm

Depth: 21.5 mm

Dim: (W x H x D) 11 x 37.1 x 21.5 mm

Content: 1 pc(s)

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2629273 Pepperl+Fuchs One-way light barrier OBE12M-R100-SEP-IO-0,3M-V3 281002 Switch (light-ON/dark-ON) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2629273 Pepperl+Fuchs One-way light barrier OBE12M-R100-SEP-IO-0,3M-V3 281002 Switch (light-ON/dark-ON) 1 pc(s)

Description

Operating range: 0 ... 12 m, light transmitter: LED, light type: Red, changeover light, signal output: 1 push-pull output, Short-circuit-proof, polarity reversal protected, overvoltage-proof, interface type: IO-Link ( via C/Q = pin 4 ), circuit type: The switching type of the sensor can be switched. The delivery status is: C/Q - Pin4: NPN NO / dark switching, PNP NC / light switching, IO-Link, connection: Fixed cable 300 mm with plug M8 x 1, 3-pin, operating voltage: 10 ... 30 V DC, ambient temperature: -40 ... 60 °C (-40 ... 140 °F) , cable laid fixed -25 ... 60 °C (-13 ... 140 °F) , cable movable not suitable for drag chains

This text is machine translated.

Features

Individual componentsTRANSMITTER: OBE12M-R100-S-IO-0.3M-V3RECEIVER: OBE12M-R100-EP-IO-0.3M-V3General dataOperating range: 0 ... 12 mLimit range: 15 m.Light transmitter: LEDLight: red, modulated lightLED risk group identification: Free groupLight spot diameter: Approx. 65 mm at a distance of 1 m.Aperture angle: 3.7 °Ambient light limit: EN 60947-5-2 : 30000 LuxFunctional safety characteristicsMTTFd: 462 aService life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED: | static on - Power-On | flashing (4 Hz) - Short circuit | flashing with short interruption (1 Hz) - IO-Link modeFunction display: Yellow LED: | static on - light path free | static off - object detected | flashing (4 Hz) - undershooting of the function reserveControls: Receiver: Light/dark switchControls: Receiver: Sensitivity adjusterConfiguration display: IO-Link communication: LED turns off briefly green (1 Hz)Electrical DataOperating voltage 10 ... 30 V DCRipple: Max. 10%No-load current: Transmitter: ≤ 14 mA | Receiver: ≤ 13 mA at 24 V supply voltageProtection class IIIInterfaceInterface type: IO-Link ( via C/Q = pin 4 )IO-Link version: 1.1Device ID: Transmitter: 0x110401 (1115137) | Receiver: 0x110301 (1114881)Transfer rate: COM2 (38.4 kBit/s)Min Cycle time: 2.3 msProcess data width: Sender: | Process data output: 2 bits | Receiver: | Process data input: 2 bits | Process data output: 2 bits"SIO Mode" support: YesCompatible master port type: A.InputTest input: Transmitter cut-off at +UBoutputSwitching type: The switching type of the sensor can be switched. The delivery status is: | C/Q - Pin4: NPN NO / dark switching, PNP NC / light switching, IO-LinkSignal output: 1 push-pull output, short-circuit proof, polarity reversal protected, overvoltage proofSwitching voltage 30 V/DC maxSwitching current: Max. 100 mA, resistive loadUsage category: DC-12 and DC-13Voltage drop: ≤ 1.5 V DCSwitching frequency 1000 HzResponse time < 0.5 msComplianceCommunication interface: IEC 61131-9Product standard EN 60947-5-2Approvals and certificatesEAC COMPLIANCE: TR CU 020/2011UL approval: E87056 , cULus listed , "Class 2" power supply , Type rating 1Ambient conditionsAmbient temperature: -40 ... 60 °C (-40 ... 140 °F) , cable laid fixed | -25 ... 60 °C (-13 ... 140 °F) , cable movable not suitable for drag chainsStorage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Case width 11 mmCase height: 37.1 mmHousing depth 21.5 mmPROTECTION CLASS IP67 / IP69 / IP69KConnection: Fixed cable 300 mm with plug M8 x 1, 3-pinMaterials Housing: PC (polycarbonate) Light emission: PMMAMass: Transmitter: Approx. 10 g Receiver: Approx. 10 gCable length 0.3 m.

Hints

For more information on this 281002, please refer to its datasheet under 'downloadable documents'
