Name: Pepperl+Fuchs Photo sensor PROSCAN-T/32/76a 419579 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2628888

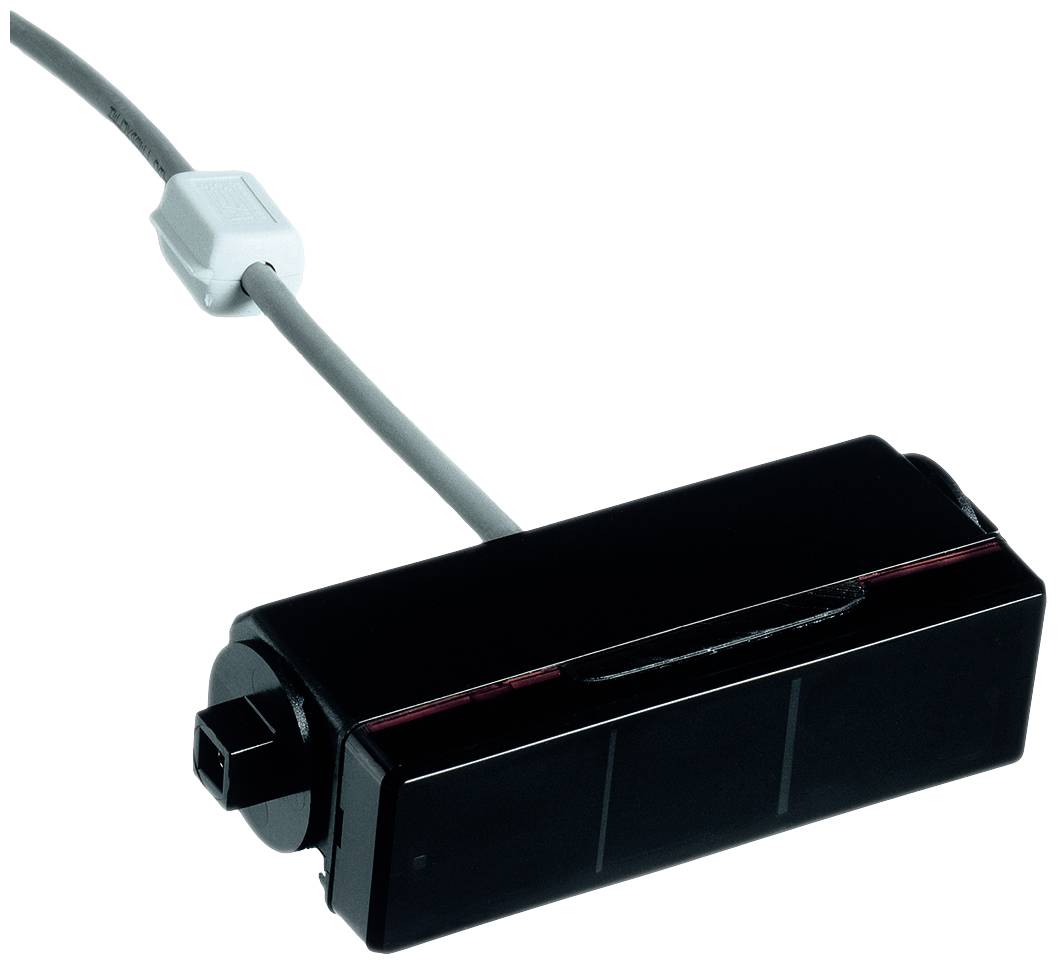

A rectangular, black sensor with a cable and white plug. The sensor has a smooth surface and is rectangular in shape.

Image similar

Product type

Photo sensor

Max. operating voltage

38 V DC

Connector

Cable

Type

PROSCAN-T/32/76a

Min. operating voltage

12 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Photo sensor

Type: PROSCAN-T/32/76a

Min. operating voltage: 12 V DC

Max. operating voltage: 38 V DC

Operating voltage: 12 - 38 V DC

Response time: 50 ms

Outputs: PNP

Connector: Cable

Cable length: 3 m

Enclosure material: Acrylonitrile butadiene styrene

Material properties: halogen-free

Transmitter type: IRED

Features: LED indicator

Min. temperature: -25 °C

Max. temperature: 60 °C

Content: 1 pc(s)

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2628888 Pepperl+Fuchs Photo sensor PROSCAN-T/32/76a 419579 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2628888 Pepperl+Fuchs Photo sensor PROSCAN-T/32/76a 419579 1 pc(s)

Description

Type of light: infrared, changeover light, signal output: 1 PNP, short-circuit proof, reverse polarity protected, Open collector, type of circuit: Output active / inactive programmable, connection: Fixed cable 3 m, halogen-free, with ferrite core, flame resistance according to UN/ECE-R118 or ISO 14572, operating voltage: 12 ... 38 V DC, ambient temperature: -20 ... 60 °C (-4 ... 140 °F)

This text is machine translated.

Features

General dataKeypad: Full field: 2300 mm x 80 mm | Left/right field: 1150 mm x 80 mm | Field center: 1000 mm x 80 mm || (values for mounting height 2 m)Light transmitter 12 x IREDType of light: infrared, alternating lightLearning time: Approx. 4 s.Open Time: 3 s /10 s, programmableFunctional safety characteristicsMTTFd: 630 a.Service life (TM): 20 a.Diagnostic coverage (DC): 60%Displays/controlsFunction display: LED red: On during object detection, flashes during programming phaseControl elements: Programming switch for circuit type, open time, touch fieldElectrical DataOperating voltage 12 ... 38 V DCRipple: 10%Load current: 100 mAInputTest input: Transmitter cut-off with +UbOutputSwitching mode: Output active / inactive programmableSignal output: 1 PNP, short circuit proof, reverse polarity protected, open collectorSwitching voltage: 38 V/DCSwitching current: 200 mAResponse time < 50 msFall time: 200 msCompliance with standards and directivesCompliance Product standard EN 60947-5-2 Standards: EN 50155 Chapter 12.2.3 / 12.2.5 / 12.2.7 / 12.2.8 / 12.2.11 / 12.2.14 | See test report for details Flammability: Flame resistance according to UN/ECE-R118 or ISO 14572Approvals and certificatesUN/ECE Regulation No 10 (E1): Type-approval number: 046982Ambient conditionsAmbient temperature: -25 ... 60 °C (-13 ... 140 °F)Storage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Mounting height: 1000 ... 2500 mmProtection class: IP52Connection: Fixed cable 3 m, halogen-free, with ferrite coreMaterials ABS casing Light emission: PMMAWeight approx. 100 g

Hints

For more information on this 419579, please refer to its datasheet under 'downloadable documents'
