Pepperl+Fuchs Pushbutton ML100-8-1000-RT/103/115b 223590 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
30 V DC
Connector
Cable, M12 3-pin plug
Type
ML100-8-1000-RT/103/115b
Datasheet (PDF)
Technical specifications
- Light Spot Diameter: approx. 75 mm at a distance of 1000 mm, switching voltage max. 30 V/DC, switching current 100 mA
- Product type
Pushbutton
- Type
ML100-8-1000-RT/103/115b
- Functions
Switch (light-ON/dark-ON)
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Response time
0.5 ms
- Outputs
PNP
- Switching frequency
1000 Hz
- Connector
Cable, M12 3-pin plug
- Cable length
30.00 cm
- Enclosure material
PC
- Transmitter type
LED red
1000 mm
IP67
- Min. temperature
-30 °C
- Max. temperature
+60 °C
- Width
11 mm
- Height
31 mm
- Depth
20 mm
- (Ø)
75 mm
- Dim
(Ø x H) 75 mm x 31 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2130298 Pepperl+Fuchs Pushbutton ML100-8-1000-RT/103/115b 223590 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2130298 Pepperl+Fuchs Pushbutton ML100-8-1000-RT/103/115b 223590 Switch (light-ON/dark-ON) 1 pc(s)
Conformity certificate
Conformity certificate 2130298 Pepperl+Fuchs Pushbutton ML100-8-1000-RT/103/115b 223590 Switch (light-ON/dark-ON) 1 pc(s)
Description

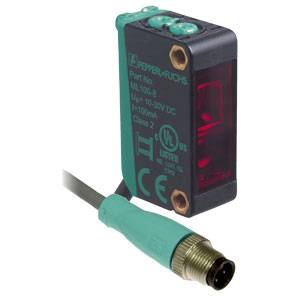

Reflective light sensor, energetic, plastic housing, scan width 1000 mm adjustable, red light, light/dark switching, PNP output, fixed cable with M12 connector
This text is machine translated.
This text is machine translated.
Hints
For more information on this 223590, please refer to its datasheet under 'downloadable documents'
