Pepperl+Fuchs Pushbutton ML100-8-H-100/115/127/162 243928 Light-ON 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pushbutton
Functions
Light-ON
Max. operating voltage
30 V DC
Connector
Cable
Datasheet (PDF)
Technical specifications
- Light spot diameter: 3 light spots, light spot size 4 mm at a distance of 50 mm, light spot 8 mm apart, light spot size 2.5 mm at a distance of 80 mm, light spot 12 mm apart, light spot size 4 mm at a distance of 100 mm, light spot 15 mm apart (outer point to outer point)
- Packaging type
Piece
- Product type
Pushbutton
- Type
ML100-8-H-100/115/127/162
- Functions
Light-ON
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
NPN
- Connector
Cable
- Cable length
2.00 m
- Enclosure material
PC
- Transmitter type
LED red
100 mm
IP67
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2130575 Pepperl+Fuchs Pushbutton ML100-8-H-100/115/127/162 243928 Light-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2130575 Pepperl+Fuchs Pushbutton ML100-8-H-100/115/127/162 243928 Light-ON 1 pc(s)
Conformity certificate
Conformity certificate 2130575 Pepperl+Fuchs Pushbutton ML100-8-H-100/115/127/162 243928 Light-ON 1 pc(s)
Description

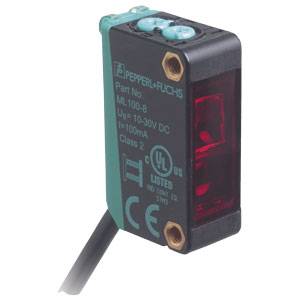

Reflective light sensors with special light spots for pcb detection, background suppression, miniature design, sensing range 100 mm, red light, light circuit, NPN outputs, fixed cable
This text is machine translated.
This text is machine translated.
Hints
For more information on this 243928, please refer to its datasheet under 'downloadable documents'
