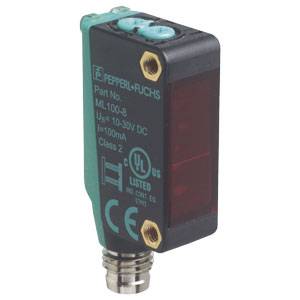

Pepperl+Fuchs Pushbutton ML100-8-H-100/95/120/162 243925 Light-ON, Background suppression 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Functions
Light-ON
Background suppression
Max. operating voltage
30 V DC
Connector
M8 connector (4-pin)
Type
ML100-8-H-100/95/120/162
Datasheet (PDF)
Technical specifications
- Light spot diameter: 3 light spots, light spot size 4 mm at a distance of 50 mm, light spot 8 mm apart, light spot size 2.5 mm at a distance of 80 mm, light spot 12 mm apart, light spot size 4 mm at a distance of 100 mm, light spot 15 mm apart (outer point to outer point)
- Product type
Pushbutton
- Type
ML100-8-H-100/95/120/162
- Functions
Light-ON
Background suppression
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Connector
M8 connector (4-pin)
- Enclosure material
PC
- Transmitter type
LED red
100 mm
IP67
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2130576 Pepperl+Fuchs Pushbutton ML100-8-H-100/95/120/162 243925 Light-ON, Background suppression 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2130576 Pepperl+Fuchs Pushbutton ML100-8-H-100/95/120/162 243925 Light-ON, Background suppression 1 pc(s)
Conformity certificate
Conformity certificate 2130576 Pepperl+Fuchs Pushbutton ML100-8-H-100/95/120/162 243925 Light-ON, Background suppression 1 pc(s)
Description
Reflective light sensors with special light spots for pcb detection, background suppression, miniature design, sensing range 100 mm, red light, light circuit, PNP outputs, M8 connector
This text is machine translated.
This text is machine translated.
Hints
For more information on this 243925, please refer to its datasheet under 'downloadable documents'
