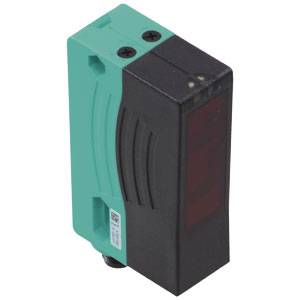

Pepperl+Fuchs Pushbutton RL28-8-H-700-IR/49/105 419616 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
30 V DC
Connector
M12 plug (5-pin)
Type
RL28-8-H-700-IR/49/105
Datasheet (PDF)
Technical specifications
- Light Spot Diameter: approx. 24 mm at a distance of 700 mm, switching voltage max. 30 V/DC, type: bright/dark switch, switchable, switching current 200 mA
- Product type
Pushbutton
- Type
RL28-8-H-700-IR/49/105
- Functions
Switch (light-ON/dark-ON)
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Response time
2 ms
- Switching frequency
250 Hz
- Connector
M12 plug (5-pin)
- Enclosure material
Plastic
Acrylonitrile butadiene styrene
- Transmitter type
LED IR
- Features
Incl. background suppression
IP67
- Min. temperature
-40 °C
- Max. temperature
+60 °C
- Width
25.8 mm
- Height
88 mm
- Depth
54.3 mm
- Dim
(W x H x D) 25.8 x 88 x 54.3 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2130711 Pepperl+Fuchs Pushbutton RL28-8-H-700-IR/49/105 419616 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2130711 Pepperl+Fuchs Pushbutton RL28-8-H-700-IR/49/105 419616 Switch (light-ON/dark-ON) 1 pc(s)
Conformity certificate
Conformity certificate 2130711 Pepperl+Fuchs Pushbutton RL28-8-H-700-IR/49/105 419616 Switch (light-ON/dark-ON) 1 pc(s)
Description
Reflective light sensors with background suppression
This text is machine translated.
This text is machine translated.
Hints
For more information on this 419616, please refer to its datasheet under 'downloadable documents'
