Pepperl+Fuchs Pushbutton VT18-8-400-M-LAS/32/40a/118 801134 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pushbutton
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
30 V DC
Connector
M12 plug (4-pin)
Datasheet (PDF)
Technical specifications
- Light Spot Diameter: approx. 0.5 mm at a distance of 120 mm, switching voltage: 30 V/DC, type: bright/dark switch, switchable, switching current 200 mA
- Packaging type
Piece
- Product type
Pushbutton
- Type
VT18-8-400-M-LAS/32/40a/118
- Functions
Switch (light-ON/dark-ON)
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Response time
1 ms
- Outputs
PNP
- Switching frequency
500 Hz
- Connector
M12 plug (4-pin)
- Size
M18
- Enclosure material
Brass
- Transmitter type
Laser diode
- Laser class
1
- Wavelength
655 nm
400 mm
IP67
- Min. temperature
-25 °C
- Max. temperature
+55 °C
- (Ø)
18 mm
- Dim
(Ø) 18 mm
- Content
1 pc(s)
- Smallest detectable object size (diameter)
0.5 mm
Documents & Downloads
Datasheet
Datasheet 2130558 Pepperl+Fuchs Pushbutton VT18-8-400-M-LAS/32/40a/118 801134 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2130558 Pepperl+Fuchs Pushbutton VT18-8-400-M-LAS/32/40a/118 801134 Switch (light-ON/dark-ON) 1 pc(s)
Conformity certificate
Conformity certificate 2130558 Pepperl+Fuchs Pushbutton VT18-8-400-M-LAS/32/40a/118 801134 Switch (light-ON/dark-ON) 1 pc(s)
Description

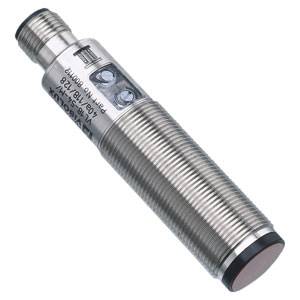

Reflective light sensor, energetic, thread M18, metal casing, sensing range 400 mm, laser diode red, touch wide no controller, light/dark switching, PNP output, M12 plug
This text is machine translated.
This text is machine translated.
Hints
For more information on this 801134, please refer to its datasheet under 'downloadable documents'
