Name: Pepperl+Fuchs Retroreflective light barrier ML100-55-5575 256578 Switch (light-ON/dark-ON) 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2627778

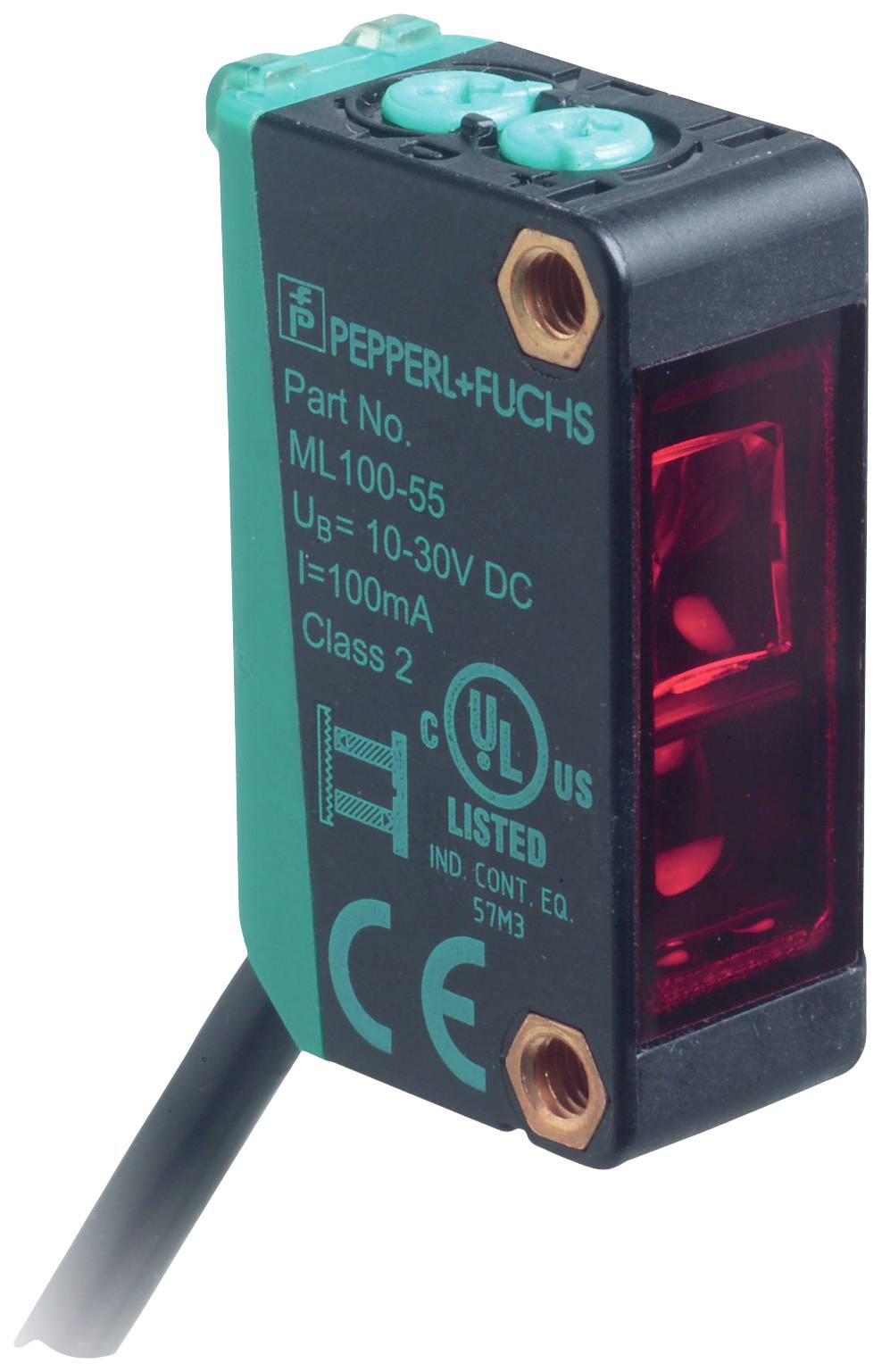

A rectangular sensor from Pepperl+Fuchs with the model number ML100-55. It features voltage and current ratings on the front side.

Image similar

Product type

Retroreflective light barrier

Functions

Switch (light-ON/dark-ON)

Max. operating voltage

30 V DC

Connector

M8 (4-pin)

Type

ML100-55-5575

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective light barrier

Type: ML100-55-5575

Functions: Switch (light-ON/dark-ON)

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 0.5 ms

Outputs: PNP

Switching frequency: 1000 Hz

Connector: M8 (4-pin)

Cable length: 0.3 m

Enclosure material: Polycarbonate (PC)

Transmitter type: LED red

: 4.5 m

Min. temperature: -30 °C

Max. temperature: 60 °C

Width: 11 mm

Height: 31 mm

Depth: 20 mm

Dim: (W x H x D) 11 x 31 x 20 mm

Content: 1 pc(s)

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2627778 Pepperl+Fuchs Retroreflective light barrier ML100-55-5575 256578 Switch (light-ON/dark-ON) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2627778 Pepperl+Fuchs Retroreflective light barrier ML100-55-5575 256578 Switch (light-ON/dark-ON) 1 pc(s)

Description

Operating range: 0 ... 3.5 m, light transmitter: LED, light type: Red, changeover light, signal output: 1 PNP output, Short-circuit-proof, reverse polarity protected, open collector, circuit type: The switching type of the sensor can be switched. The delivery status is: Light switching, connection: Fixed cable 300 mm with M8 plug, 4-pole, operating voltage: 10 ... 30 V DC, ambient temperature: -30 ... 60 °C (-22 ... 140 °F)

This text is machine translated.

Features

General dataOperating range: 0 ... 3.5 mReflector distance: 0.01 ... 3.5 mLimit range: 4.5 m.Reference object: Reflector H50Light transmitter: LEDLight: red, modulated lightPolarization filter: YesLight spot diameter: Approx. 350 mm at a distance of 4.5 m.Angle of detection 4 °Light emission: FrontalAmbient light limit: EN 60947-5-2:2007+A1:2012Functional safety characteristicsMTTFd: 860 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED: Power on (power on)Function display: Yellow LED: Lights up when the transmission beam is received; flashes when the function reserve is undershot; off when the beam is interruptedControls: Sensitivity adjusterControls: Light/dark switchElectrical DataOperating voltage 10 ... 30 V DCRipple: Max. 10%Idle current: 20 mAOutputSwitching type: The switching type of the sensor can be switched. The delivery status is: Light switchingSignal output: 1 PNP output, short circuit proof, reverse polarity protected, open collectorSwitching voltage 30 V/DC maxSwitching current: Max. 100 mA, resistive loadVoltage drop: ≤ 1.5 V DCSwitching frequency 1000 HzResponse time < 0.5 msComplianceProduct standard EN 60947-5-2Approvals and certificatesEAC COMPLIANCE: TR CU 020/2011UL approval: CULus listed, Class 2 power source or UL listed power supply with limited voltage output with (possibly integrated) fuse (max. 3.3 A according to UL248), type 1 housingCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -30 ... 60 °C (-22 ... 140 °F)Storage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Case width 11 mmHousing height 31 mmCasing depth 20 mmProtection class IP67Connection: Fixed cable 300 mm with M8 plug, 4-pinMaterials Housing: PC (polycarbonate) Light emission: PMMAApproximate weight 20 gTightening torque for fixing screws: 0.6 NmCable length 0.3 m.

Hints

For more information on this 256578, please refer to its datasheet under 'downloadable documents'
