Name: Pepperl+Fuchs Retroreflective light barrier ML100-55-G/103/115 297836 Light-ON 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2628876

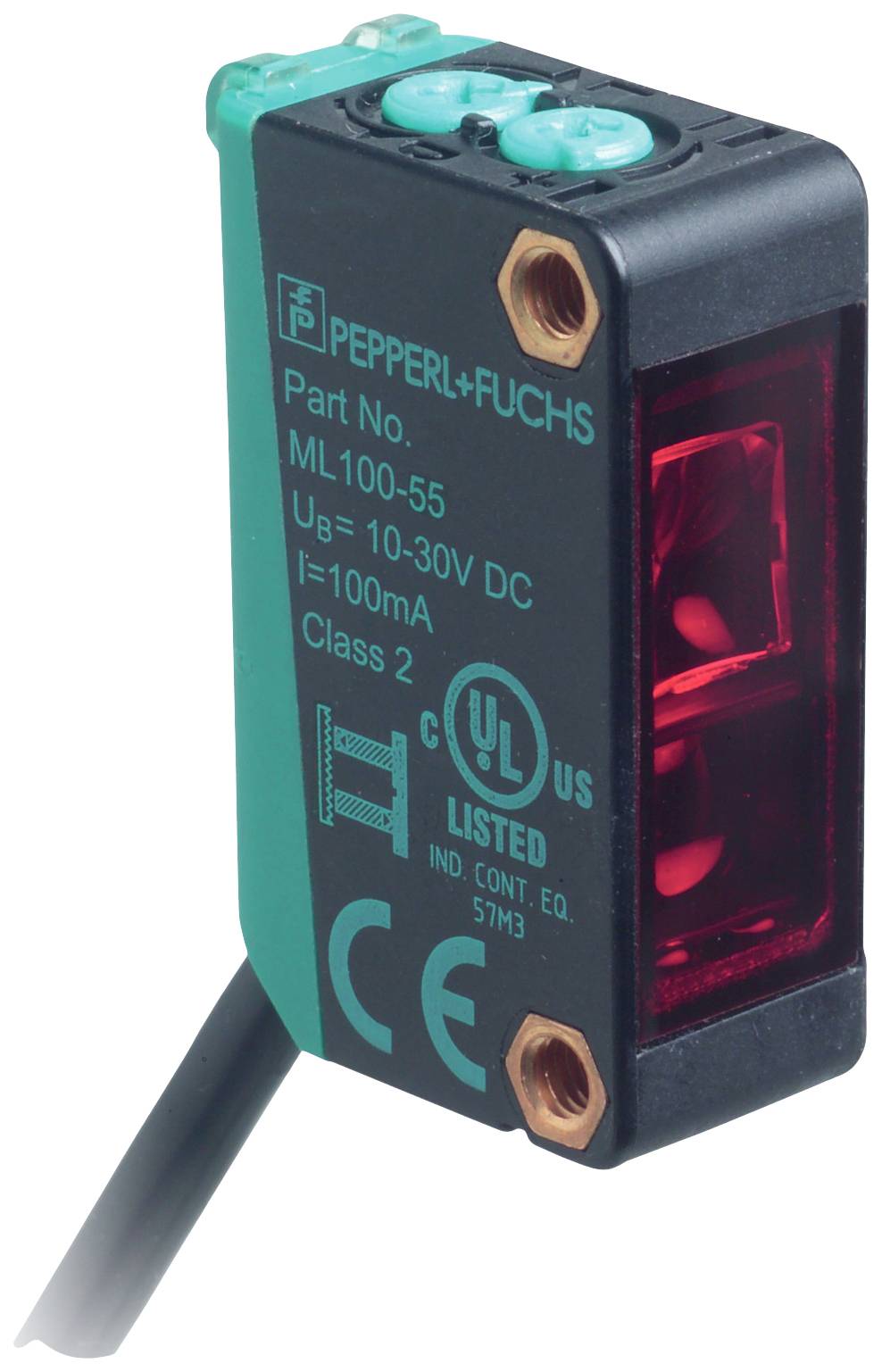

A rectangular optoelectronic sensor from Pepperl+Fuchs with a black and turquoise housing and a red lens.

Image similar

Product type

Retroreflective light barrier

Functions

Light-ON

Max. operating voltage

30 V DC

Connector

Cable

Type

ML100-55-G/103/115

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective light barrier

Type: ML100-55-G/103/115

Functions: Light-ON

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 0.5 ms

Contact type: 1 PNP

Outputs: PNP

Switching frequency: 1000 Hz

Connector: Cable

Cable length: 2 m

Enclosure material: Polycarbonate (PC)

Transmitter type: LED red

Light emission: axial

: 2.5 m

Features: LED indicator

Min. temperature: -30 °C

Max. temperature: 60 °C

Width: 11 mm

Height: 31 mm

Depth: 20 mm

Dim: (W x H x D) 11 x 31 x 20 mm

Content: 1 pc(s)

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2628876 Pepperl+Fuchs Retroreflective light barrier ML100-55-G/103/115 297836 Light-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2628876 Pepperl+Fuchs Retroreflective light barrier ML100-55-G/103/115 297836 Light-ON 1 pc(s)

Description

Operating range: 0 ... 2.5 m, light transmitter: LED, light type: Red, changeover light, signal output: 1 PNP output, Short-circuit-proof, reverse polarity protected, open collector, circuit type: The switching type of the sensor can be switched. The delivery status is: Light switching, connection: Fixed cable 2 m, operating voltage: 10 ... 30 V DC, ambient temperature: -30 ... 60 °C (-22 ... 140 °F)

This text is machine translated.

Features

General dataOperating range: 0 ... 2.5 mReflector distance: 0.05 ... 2.5 mLimit range: 2.5 m.Reference object: Reflector H50Light transmitter: LEDLight: red, modulated lightPolarization filter: YesLight spot diameter: Approx. 180 mm at a distance of 2.5 m.Angle of detection 4 °Light emission: FrontalAmbient light limit: EN 60947-5-2:2007+A1:2012Functional safety characteristicsMTTFd: 860 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED: Power on (power on) Teach-in: Yellow/green LEDs; flashing in the same phase; 2.5 Hz Teach error: Yellow/green LEDs; flashing in the opposite phase; 8.0 HzFunction display: Yellow LED: Lights up when the transmission beam is received when the beam is interruptedControls: Teach-in rotary switchControls: Light/dark switch preset to light switchingContrast detection levels: 18 % - clear glass bottles | 40 % - colored glass or non-transparent materials | adjustable by teach-in switch | Electrical DataOperating voltage 10 ... 30 V DCRipple: Max. 10%Idle current: 20 mAOutputSwitching type: The switching type of the sensor can be switched. The delivery status is: Light switchingSignal output: 1 PNP output, short circuit proof, reverse polarity protected, open collectorSwitching voltage 30 V/DC maxSwitching current: Max. 100 mA, resistive loadVoltage drop: ≤ 1.5 V DCSwitching frequency 1000 HzResponse time < 0.5 msComplianceProduct standard EN 60947-5-2Approvals and certificatesEAC COMPLIANCE: TR CU 020/2011UL approval: CULus listed, Class 2 power source or UL listed power supply with limited voltage output with (possibly integrated) fuse (max. 3.3 A according to UL248), type 1 housingCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -30 ... 60 °C (-22 ... 140 °F)Storage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Case width 11 mmHousing height 31 mmCasing depth 20 mmProtection class IP67Anschluss: Festkabel 2 mMaterials Housing: PC (polycarbonate) Light emission: PMMAApproximate weight 50 gTightening torque for fixing screws: 0.6 NmCable length: 2 m

Hints

For more information on this 297836, please refer to its datasheet under 'downloadable documents'
