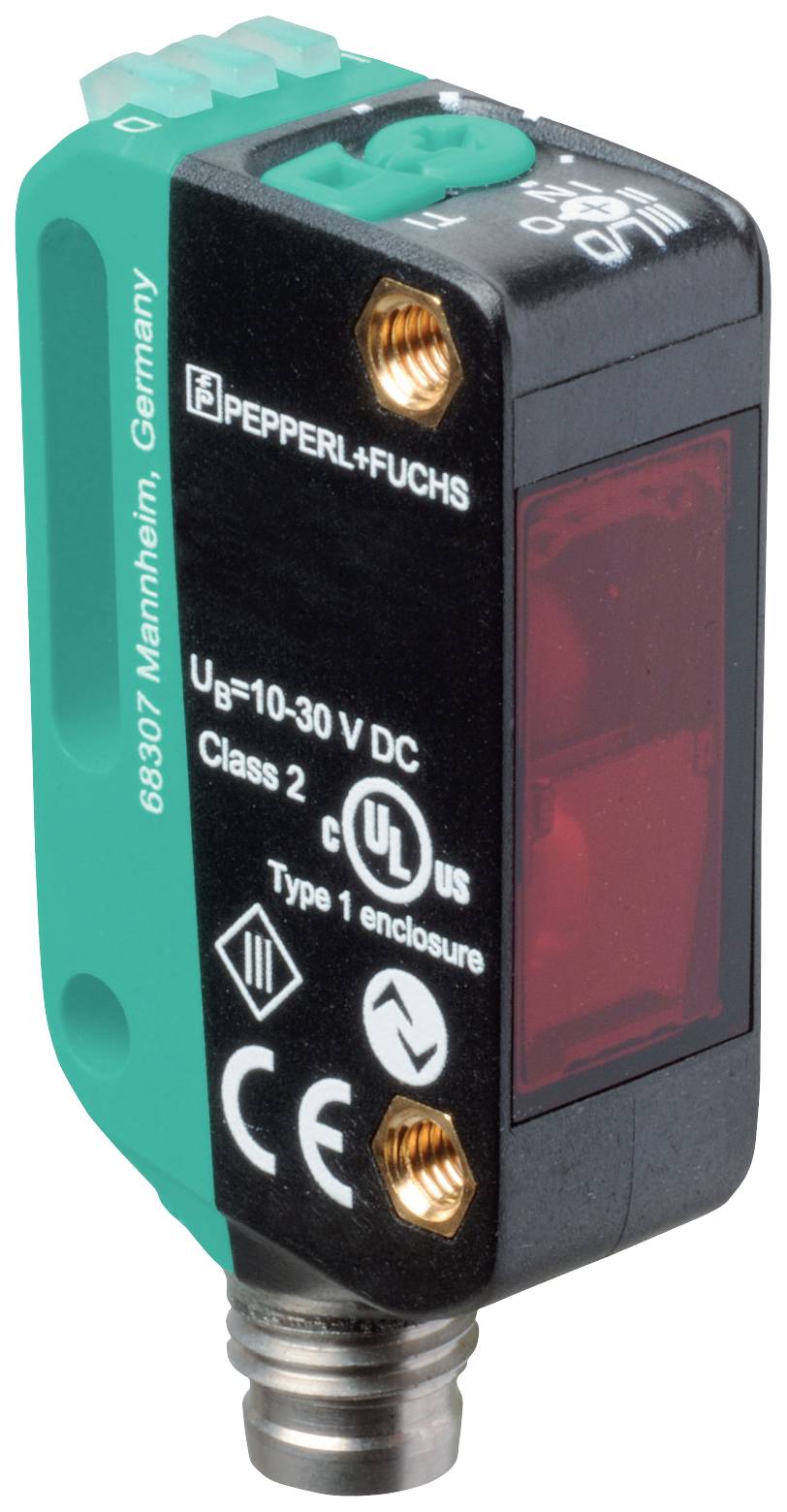

Pepperl+Fuchs Retroreflective light barrier OBG5000-R100-E5F-IO-V31 267075-100485 Background suppression 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Background suppression
Max. operating voltage
30 V DC
Connector
M8 (4-pin)
Type
OBG5000-R100-E5F-IO-V31
Datasheet (PDF)
Technical specifications
- Product type
Retroreflective light barrier
- Type
OBG5000-R100-E5F-IO-V31
- Functions
Background suppression
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Response time
1 ms
- Contact type
1 PNP
- Outputs
PNP NC
PNP NO
- Switching frequency
500 Hz
- Connector
M8 (4-pin)
- Enclosure material
Polycarbonate (PC)
- Transmitter type
LED red
6 m
- Features
Incl. background suppression
- Min. temperature
-20 °C
- Max. temperature
60 °C
- Width
11 mm
- Height
44.5 mm
- Depth
21.5 mm
- Dim
(W x H x D) 11 x 44.5 x 21.5 mm
- Content
1 pc(s)
- Wireless charging
No
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627728 Pepperl+Fuchs Retroreflective light barrier OBG5000-R100-E5F-IO-V31 267075-100485 Background suppression 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2627728 Pepperl+Fuchs Retroreflective light barrier OBG5000-R100-E5F-IO-V31 267075-100485 Background suppression 1 pc(s)
Description
Operating range: 0 ... 3.5 m in teach mode ; 0 ... 5 m with switch position "N", light transmitter: LED, light type: Red, changeover light, signal output: 1 PNP, Short-circuit-proof, reverse polarity protected, interface type: IO-Link ( via C/Q = pin 4 ), circuit type: The circuit type of the sensor can be switched. The delivery status is: C/Q - Pin4: PNP NO / dark switching, IO-Link Alarm output - Pin2: PNP NC, connection: Device plug M8 x 1, 4-pole, operating voltage: 10 ... 30 V DC, ambient temperature: -20 ... 60 °C (-4 ... 140 °F)
This text is machine translated.
This text is machine translated.
Features
- General dataOperating range: 0 ... 3.5 m in teach mode ; 0 ... 5 m with switch position "N"Reflector distance: 0 ... 3.5 m in teach mode ; 0 ... 5 m with switch position "N"Limit range: 6 m.Reference object: Reflector H85-2Light transmitter: LEDLight: red, modulated lightLED risk group identification: Free groupLight spot diameter: Approx. 170 mm at a distance of 3.5 m.Angle of detection 5 °Ambient light limit: EN 60947-5-2Functional safety characteristicsMTTFd: 600 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED: | static on - Power-On | flashing (4 Hz) - Short circuit | flashing with short interruption (1 Hz) - IO-Link modeFunction display: Yellow LED: | static on - light path free | static off - object detected | flashing (4 Hz) - undershooting of the function reserveControls: Teach-in buttonControls: 5-stage rotary switch for selecting operating modesContrast detection levels: 10 % - clean, water-filled PET bottles | 18 % - clear glass bottles | 40 % - color glass or non-transparent materials | adjustable via rotary switchElectrical DataOperating voltage 10 ... 30 V DCRipple: Max. 10%No-load current < 25 mA at 24 V supply voltageProtection class IIIInterfaceInterface type: IO-Link ( via C/Q = pin 4 )IO-Link version: 1.1Device ID: 0x110A08 (1116680)Transfer rate: COM2 (38.4 kBit/s)Min Cycle time: 2.3 msProcess data width: Process data input 2 bits | Process data output 2 bitsSIO mode support: YesCompatible master port type: A.OutputFail-safe output: 1 PNP function reserve output (alarm), short-circuit proof, reverse polarity protected, open collectorSwitching type: The switching type of the sensor can be switched. The delivery status is: | C/Q - Pin4: PNP NO / dark switching, IO-Link | Alarm output - Pin2: PNP NCSignal output: 1 PNP, short circuit proof, reverse polarity protectedSwitching voltage 30 V/DC maxSwitching current: Max. 100 mA, resistive loadUsage category: DC-12 and DC-13Voltage drop: ≤ 1.5 V DCSwitching frequency 500 HzResponse time 1 msComplianceCommunication interface: IEC 61131-9Product standard EN 60947-5-2Approvals and certificatesEAC COMPLIANCE: TR CU 020/2011UL approval: E87056 , cULus listed , "Class 2" power supply , Type rating 1Ambient conditionsAmbient temperature: -20 ... 60 °C (-4 ... 140 °F) | Storage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Case width 11 mmHousing height 44.5 mmHousing depth 21.5 mmPROTECTION CLASS IP67 / IP69 / IP69KConnection: Device plug M8 x 1, 4-pinMaterials Housing: PC (polycarbonate) Light emission: PMMAApproximate weight 10 g
Hints
For more information on this 267075-100485, please refer to its datasheet under 'downloadable documents'
