Name: Pepperl+Fuchs Retroreflective light barrier OBG5000-R101-2EP-IO-0,3M-V1 267075-100067 Push-pull (inverted) Teach-in 1 pc
Brand: Pepperl+Fuchs
SKU: 2628752

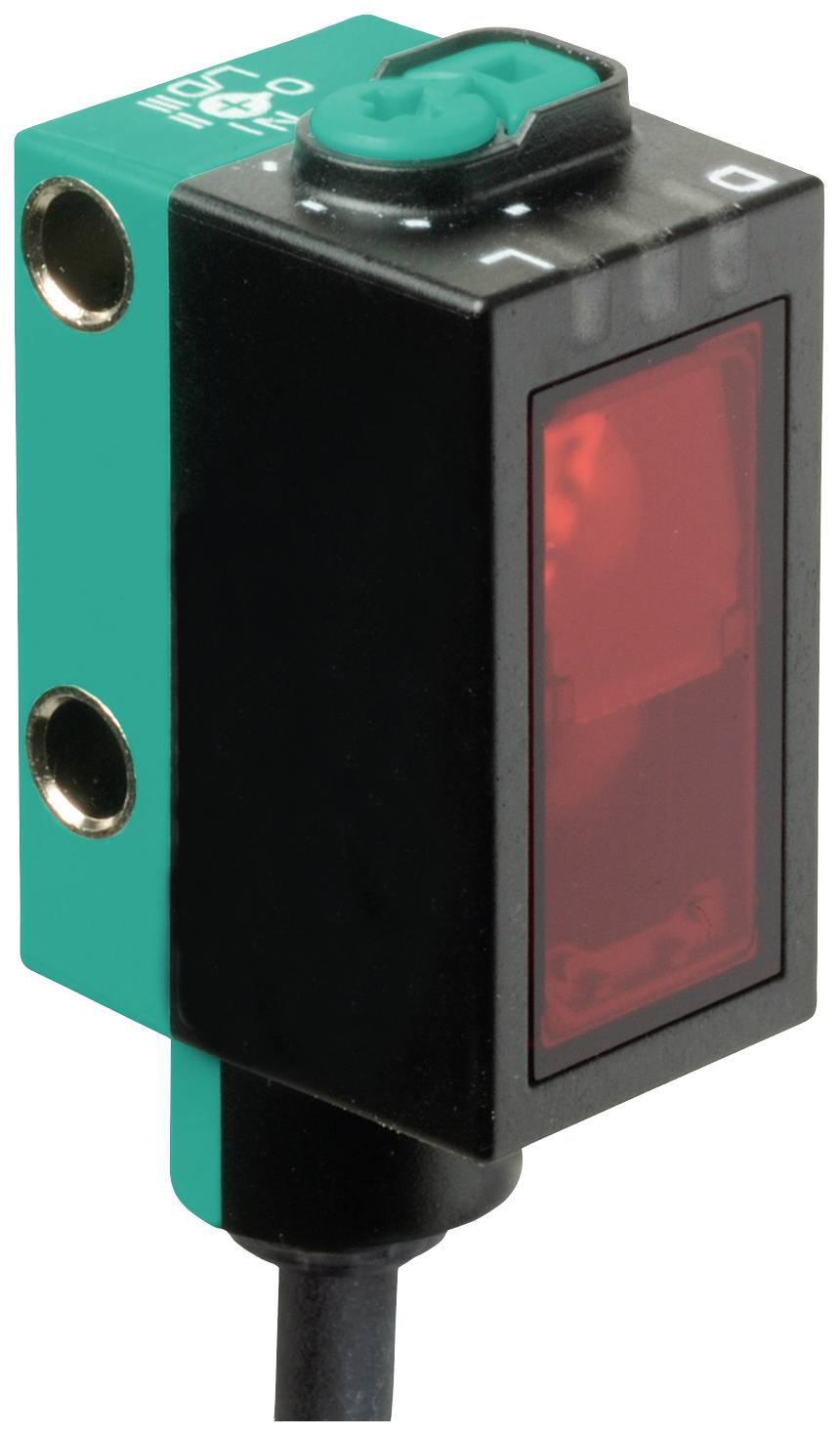

Inductive proximity sensor with a rectangular housing, green and black design, featuring two metal connections and a red sight window.

Image similar

Packaging type

Piece

Product type

Retroreflective light barrier

Functions

Teach-in

Max. operating voltage

30 V DC

Connector

M12 (4-pin)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Retroreflective light barrier

Type: OBG5000-R101-2EP-IO-0,3M-V1

Model: Push-pull (inverted)

Functions: Teach-in

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 1 ms

Outputs: NPN NC
NPN NO
PNP NC
PNP NO

Switching frequency: 500 Hz

Connector: M12 (4-pin)

Cable length: 0.3 m

Enclosure material: Polycarbonate (PC)

Material properties: Polycarbonate

Transmitter type: LED red

: 6 m

Features: LED indicator

Min. temperature: -20 °C

Max. temperature: 60 °C

Width: 13.9 mm

Height: 33.8 mm

Depth: 18.3 mm

Dim: (W x H x D) 13.9 x 33.8 x 18.3 mm

Content: 1 pc(s)

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2628752 Pepperl+Fuchs Retroreflective light barrier OBG5000-R101-2EP-IO-0,3M-V1 267075-100067 Push-pull (inverted) Teach-in 1 pc

User & Safety Instructions

User & Safety Instructions 2628752 Pepperl+Fuchs Retroreflective light barrier OBG5000-R101-2EP-IO-0,3M-V1 267075-100067 Push-pull (inverted) Teach-in 1 pc

Description

Operating range: 0 ... 3.5 m in teach mode ; 0 ... 5 m with switch position "N", light transmitter: LED, light type: Red, changeover light, signal output: 2 push-pull outputs, Short-circuit-proof, polarity reversal protected, overvoltage-proof, interface type: IO-Link ( via C/Q = pin 4 ), circuit type: The switching type of the sensor can be switched. The delivery status is: C/Q - Pin4: NPN NO / dark switching, PNP NC / light switching, IO-Link /Q - Pin2: NPN NC / light switching, PNP NO / dark switching, connection: Fixed cable 300 mm with plug M12 x 1, 4-pole, operating voltage: 10 ... 30 V DC, ambient temperature: -20 ... 60 °C (-4 ... 140 °F) , cable movable not suitable for drag chains

This text is machine translated.

Features

General dataOperating range: 0 ... 3.5 m in teach mode ; 0 ... 5 m with switch position "N"Reflector distance: 0 ... 3.5 m in teach mode ; 0 ... 5 m with switch position "N"Limit range: 6 m.Reference object: Reflector H85-2Light transmitter: LEDLight: red, modulated lightLED risk group identification: Free groupLight spot diameter: Approx. 170 mm at a distance of 3.5 m.Angle of detection 5 °Ambient light limit: EN 60947-5-2Functional safety characteristicsMTTFd: 600 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED: | static on - Power-On | flashing (4 Hz) - Short circuit | flashing with short interruption (1 Hz) - IO-Link modeFunction display: Yellow LED: | static on - light path free | static off - object detected | flashing (4 Hz) - undershooting of the function reserveControls: Teach-in buttonControls: 5-stage rotary switch for selecting operating modesContrast detection levels: 10 % - clean, water-filled PET bottles | 18 % - clear glass bottles | 40 % - color glass or non-transparent materials | adjustable via rotary switchElectrical DataOperating voltage 10 ... 30 V DCRipple: Max. 10%No-load current < 25 mA at 24 V supply voltageProtection class IIIInterfaceInterface type: IO-Link ( via C/Q = pin 4 )IO-Link version: 1.1Device ID: 0x110A01 (1116673)Transfer rate: COM2 (38.4 kBit/s)Min Cycle time: 2.3 msProcess data width: Process data input 2 bits | Process data output 2 bits"SIO Mode" support: YesCompatible master port type: A.OutputSwitching type: The switching type of the sensor can be switched. The delivery status is: | C/Q - Pin4: NPN NO / dark switching, PNP NC / light switching, IO-Link | /Q - Pin2: NPN NC / light switching, PNP NO / dark switchingSignal output: 2 push-pull outputs, short-circuit proof, polarity reversal protected, overvoltage proofSwitching voltage 30 V/DC maxSwitching current: Max. 100 mA, resistive loadUsage category: DC-12 and DC-13Voltage drop: ≤ 1.5 V DCSwitching frequency 500 HzResponse time 1 msComplianceCommunication interface: IEC 61131-9Product standard EN 60947-5-2Approvals and certificatesUL approval: E87056 , cULus listed , "Class 2" power supply , Type rating 1Ambient conditionsAmbient temperature: -20 ... 60 °C (-4 ... 140 °F) , cable movable not suitable for drag chainsStorage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Case width 13.9 mmHousing height 33.8 mmCasing depth 18.3 mmPROTECTION CLASS IP67 / IP69 / IP69KConnection: Fixed cable 300 mm with plug M12 x 1, 4-pinMaterials Housing: PC (polycarbonate) Light emission: PMMAApproximate weight 17 gCable length 0.3 m.

Hints

For more information on this 267075-100067, please refer to its datasheet under 'downloadable documents'
