Name: Pepperl+Fuchs Retroreflective light barrier OBR7500-R100-E5F-IO 267075-100491 Retroreflective 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2627734

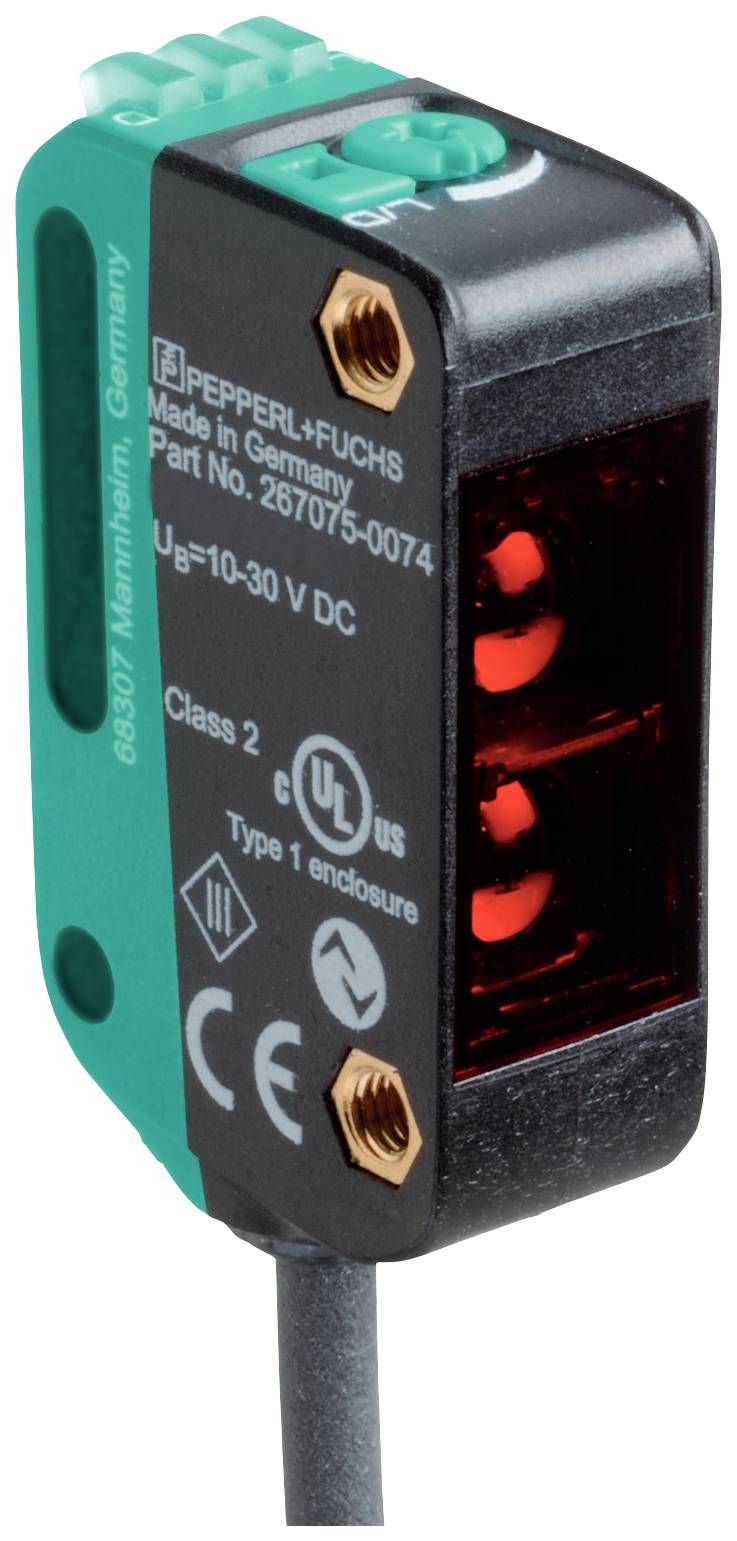

Inductive proximity sensor by Pepperl+Fuchs with red light, rectangular housing, suitable for voltages of 10-30 V DC.

Image similar

Packaging type

Piece

Product type

Retroreflective light barrier

Functions

Retroreflective

Max. operating voltage

30 V DC

Connector

Cable

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Retroreflective light barrier

Type: OBR7500-R100-E5F-IO

Functions: Retroreflective

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 0.5 ms

Contact type: 1 PNP

Outputs: PNP NC
PNP NO

Switching frequency: 1000 Hz

Connector: Cable

Cable length: 2 m

Enclosure material: Polycarbonate (PC)

Transmitter type: LED red

: 10 m

Features: LED indicator

Min. temperature: -40 °C

Max. temperature: 60 °C

Width: 11 mm

Height: 37.1 mm

Depth: 21.5 mm

Dim: (W x H x D) 11 x 37.1 x 21.5 mm

Content: 1 pc(s)

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2627734 Pepperl+Fuchs Retroreflective light barrier OBR7500-R100-E5F-IO 267075-100491 Retroreflective 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2627734 Pepperl+Fuchs Retroreflective light barrier OBR7500-R100-E5F-IO 267075-100491 Retroreflective 1 pc(s)

Description

Operating range: 0 ... 7.5 m, light transmitter: LED, light type: Red, changeover light, signal output: 1 PNP, Short-circuit-proof, reverse polarity protected, interface type: IO-Link ( via C/Q = pin 4 ), circuit type: The circuit type of the sensor can be switched. The delivery status is: C/Q - BK: PNP NO / dark switching, IO-Link Alarm output - WH: PNP NC contact, connection: 2 m fixed cable, operating voltage: 10 ... 30 V DC, ambient temperature: -40 ... 60 °C (-40 ... 140 °F) , cable laid fixed -25 ... 60 °C (-13 ... 140 °F) , cable movable not suitable for drag chains

This text is machine translated.

Features

General dataOperating range: 0 ... 7.5 mReflector distance: 0.03 ... 7.5 mLimit range: 10 m.Reference object: Reflector H85-2Light transmitter: LEDLight: red, modulated lightLED risk group identification: Free groupPolarization filter: YesLight spot diameter: Approx. 65 mm at a distance of 1 m.Aperture angle: 3.7 °Ambient light limit: EN 60947-5-2Functional safety characteristicsMTTFd: 724 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED: | static on - Power-On | flashing (4 Hz) - Short circuit | flashing with short interruption (1 Hz) - IO-Link modeFunction display: Yellow LED: | static on - light path free | static off - object detected | flashing (4 Hz) - undershooting of the function reserveControls: Light/dark switchControls: Sensitivity adjusterConfiguration display: IO-Link communication: LED turns off briefly green (1 Hz)Electrical DataOperating voltage 10 ... 30 V DCRipple: Max. 10%No-load current < 25 mA at 24 V supply voltageProtection class IIIInterfaceInterface type: IO-Link ( via C/Q = pin 4 )IO-Link version: 1.1Unit ID: 0x110212 (1114642)Transfer rate: COM2 (38.4 kBit/s)Min Cycle time: 2.3 msProcess data width: Process data input 2 bits | Process data output 2 bitsSIO mode support: YesCompatible master port type: A.OutputFail-over output: 1 PNP, inactive if the reserve falls below the function after approx. 5 s. | immediately inactive if 4 beam interruptions occur within the flash time.Switching type: The switching type of the sensor can be switched. The delivery status is: | C/Q - BK: PNP NO / dark switching, IO-Link | Alarm output - WH: PNP NC contactSignal output: 1 PNP, short circuit proof, reverse polarity protectedSwitching voltage 30 V/DC maxSwitching current: Max. 100 mA, resistive loadUsage category: DC-12 and DC-13Voltage drop: ≤ 1.5 V DCSwitching frequency 1000 HzResponse time < 0.5 msComplianceCommunication interface: IEC 61131-9Product standard EN 60947-5-2Approvals and certificatesEAC COMPLIANCE: TR CU 020/2011UL approval: E87056 , cULus listed , "Class 2" power supply , Type rating 1Ambient conditionsAmbient temperature: -40 ... 60 °C (-40 ... 140 °F) , cable laid fixed | -25 ... 60 °C (-13 ... 140 °F) , cable movable not suitable for drag chainsStorage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Case width 11 mmCase height: 37.1 mmHousing depth 21.5 mmPROTECTION CLASS IP67 / IP69 / IP69KConnection 2 m fixed cableMaterials Housing: PC (polycarbonate) Light emission: PMMAApproximate weight 36 gCable length: 2 m

Hints

For more information on this 267075-100491, please refer to its datasheet under 'downloadable documents'
