Name: Pepperl+Fuchs Retroreflective photo sensor ML100-8-W-200-RT/102/115b 235964 Light-ON 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2629255

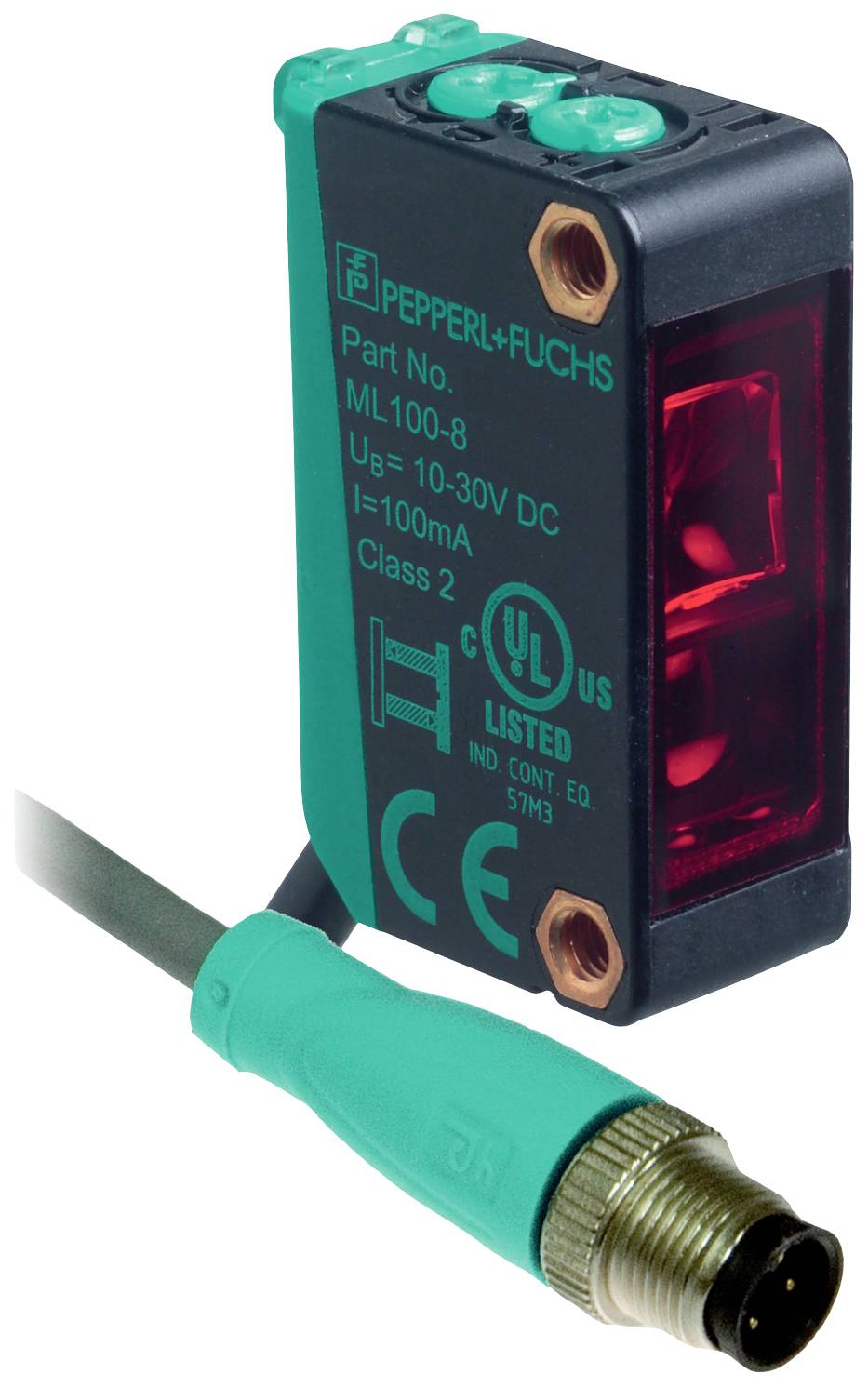

A rectangular sensor by Pepperl+Fuchs, Model ML100-8, with red light and cable connection. Voltage 10-30V DC, current 100mA.

Image similar

Packaging type

Piece

Product type

Retroreflective photo sensor

Functions

Light-ON

Max. operating voltage

30 V DC

Connector

M12 (4-pin)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: Retroreflective photo sensor

Type: ML100-8-W-200-RT/102/115b

Functions: Light-ON

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 0.5 ms

Outputs: NPN

Switching frequency: 1000 Hz

Connector: M12 (4-pin)

Cable length: 0.3 m

Enclosure material: Polycarbonate (PC)

Transmitter type: LED red

: 200 mm

Features: LED indicator

Min. temperature: -30 °C

Max. temperature: 60 °C

Length: 0.3 m

Width: 11 mm

Height: 31 mm

Depth: 20 mm

(Ø): 170 mm

Dim: (Ø x H) 170 mm x 31 mm

Content: 1 pc(s)

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2629255 Pepperl+Fuchs Retroreflective photo sensor ML100-8-W-200-RT/102/115b 235964 Light-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2629255 Pepperl+Fuchs Retroreflective photo sensor ML100-8-W-200-RT/102/115b 235964 Light-ON 1 pc(s)

Description

Sensing range: 0 ... 200 mm, light transmitter: LED, light type: Red, changeover light, signal output: 1 NPN output, Short-circuit-proof, reverse polarity protected, open collector, circuit type: The switching type of the sensor can be switched. The delivery status is: Light switching, connection: Fixed cable 300 mm with device plug M12 x 1, 4-pin, operating voltage: 10 ... 30 V DC, ambient temperature: -30 ... 60 °C (-22 ... 140 °F)

This text is machine translated.

Features

General dataSensing range: 0 ... 200 mmSetting range: 15 ... 200 mmReference object: Standard white , 200 mm x 200 mmLight transmitter: LEDLight: red, modulated lightPolarization filter: no.Light spot diameter: Approx. 170 mm at a distance of 200 mmLight emission: FrontalAmbient light limit: EN 60947-5-2:2007+A1:2012Functional safety characteristicsMTTFd: 860 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED: Power on (power on)Function display: Yellow LED, lights up when the receiver is illuminatedControls: Sensitivity adjusterControls: Light/dark switchElectrical DataOperating voltage 10 ... 30 V DCRipple: Max. 10%Idle current: 20 mAOutputSwitching type: The switching type of the sensor can be switched. The delivery status is: Light switchingSignal output: 1 NPN output, short circuit proof, reverse polarity protected, open collectorSwitching voltage 30 V/DC maxSwitching current: Max. 100 mA, resistive loadVoltage drop: ≤ 1.5 V DCSwitching frequency 1000 HzResponse time < 0.5 msComplianceProduct standard EN 60947-5-2Approvals and certificatesEAC COMPLIANCE: TR CU 020/2011UL approval: CULus listed, Class 2 power source or UL listed power supply with limited voltage output with (possibly integrated) fuse (max. 3.3 A according to UL248), type 1 housingCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -30 ... 60 °C (-22 ... 140 °F)Storage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Case width 11 mmHousing height 31 mmCasing depth 20 mmProtection class IP67Connection: Fixed cable 300 mm with device plug M12 x 1, 4-pinMaterials Housing: PC (polycarbonate) Light emission: PMMAApproximate weight 20 gTightening torque for fixing screws: 0.6 NmCable length 0.3 m.
