Name: Pepperl+Fuchs Retroreflective photo sensor OBD1400-R201-2EP-IO-V31 295670-100055 Light-ON 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2627755

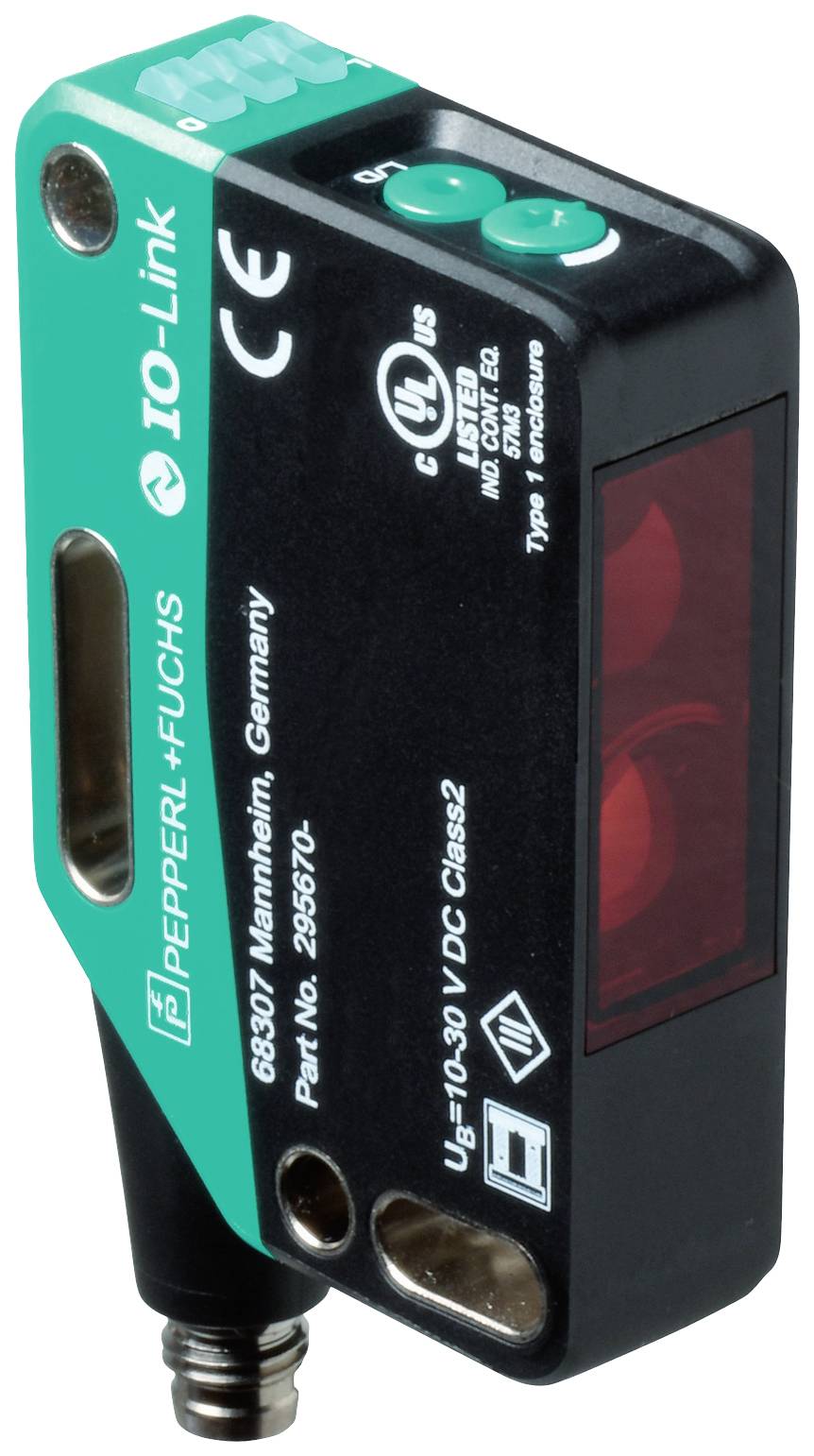

Optical sensor with manufacturer details, green-black surface, CE marking and technical specifications.

Image similar

Product type

Retroreflective photo sensor

Functions

Light-ON

Max. operating voltage

30 V DC

Connector

M8 (4-pin)

Type

OBD1400-R201-2EP-IO-V31

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective photo sensor

Type: OBD1400-R201-2EP-IO-V31

Functions: Light-ON

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 0.5 ms

Outputs: NPN NC
NPN NO
PNP NC
PNP NO

Switching frequency: 1000 Hz

Connector: M8 (4-pin)

Enclosure material: Polycarbonate (PC)

Transmitter type: LED red

: 1400 mm

Features: LED indicator

Min. temperature: -40 °C

Max. temperature: 60 °C

Width: 15 mm

Height: 61.7 mm

Depth: 41.7 mm

Dim: (W x H x D) 15 x 61.7 x 41.7 mm

Content: 1 pc(s)

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2627755 Pepperl+Fuchs Retroreflective photo sensor OBD1400-R201-2EP-IO-V31 295670-100055 Light-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2627755 Pepperl+Fuchs Retroreflective photo sensor OBD1400-R201-2EP-IO-V31 295670-100055 Light-ON 1 pc(s)

Description

Sensing range: 2 ... 1400 mm, light transmitter: LED, light type: Red, changeover light, signal output: 2 push-pull outputs, Short-circuit-proof, polarity reversal protected, overvoltage-proof, interface type: IO-Link ( via C/Q = pin 4 ), circuit type: The switching type of the sensor can be switched. The delivery status is: C/Q - Pin4: NPN NO / light-switching, PNP NC / dark-switching, IO-Link /Q - Pin2: NPN NC / dark-switching, PNP NO / light-switching, connection: Device plug M8 x 1, 4-pin, 90° rotatable, operating voltage: 10 ... 30 V DC, ambient temperature: -40 ... 60 °C (-40 ... 140 °F)

This text is machine translated.

Features

General dataSensing range: 2 ... 1400 mmMin. Scanning range: 100 ... 200 mmMax. Scanning range: 2 ... 1400 mmSetting range: 200 ... 1400 mmReference object: Standard white, 100 mm x 100 mmLight transmitter: LEDLight: red, modulated lightLED risk group identification: Free groupLight spot diameter: Approx. 50 mm at a distance of 1400 mmAperture angle: 2 °Ambient light limit: EN 60947-5-2 : 60000 LuxFunctional safety characteristicsMTTFd: 724 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED: | static on - Power-On | flashing (4 Hz) - Short circuit | flashing with short interruption (1 Hz) - IO-Link modeFunction display: Yellow LED: | static on - object detected | static off - object not detectedControls: Light/dark switchControls: Touch-width adjustmentElectrical DataOperating voltage 10 ... 30 V DCRipple: Max. 10%No-load current < 18 mA at 24 V operating voltageProtection class IIIInterfaceInterface type: IO-Link ( via C/Q = pin 4 )IO-Link version: 1.1Device profile: Identification and Diagnosis | smart sensor type 2.4Device ID: 0x111111 (1118481)Transfer rate: COM2 (38.4 kBit/s)Min Cycle time: 2.3 msProcess data width: Process data input 1 bit | Process data output 2 bit"SIO Mode" support: YesCompatible master port type: A.OutputSwitching type: The switching type of the sensor can be switched. The delivery status is: | C/Q - Pin4: NPN NO / light-switching, PNP NC / dark-switching, IO-Link | /Q - Pin2: NPN NC / dark-switching, PNP NO / light-switchingSignal output: 2 push-pull outputs, short-circuit proof, polarity reversal protected, overvoltage proofSwitching voltage 30 V/DC maxSwitching current: Max. 100 mA, resistive loadUsage category: DC-12 and DC-13Voltage drop: ≤ 1.5 V DCSwitching frequency 1000 HzResponse time < 0.5 msComplianceCommunication interface: IEC 61131-9Product standard EN 60947-5-2Approvals and certificatesEAC COMPLIANCE: TR CU 020/2011UL approval: E87056 , cULus listed , "Class 2" power supply , Type rating 1CCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -40 ... 60 °C (-40 ... 140 °F) | Storage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Case width 15 mmHousing height 61.7 mmCase depth 41.7 mmPROTECTION CLASS IP67 / IP69 / IP69KConnection: Device plug M8 x 1, 4-pin, 90° rotatableMaterials Housing: PC (polycarbonate) Light emission: PMMAApproximate weight 44 g
