Name: Pepperl+Fuchs Retroreflective photo sensor OBT150-R100-2EP1-IO-IR 267075-100502 Switch (light-ON/dark-ON) 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2627809

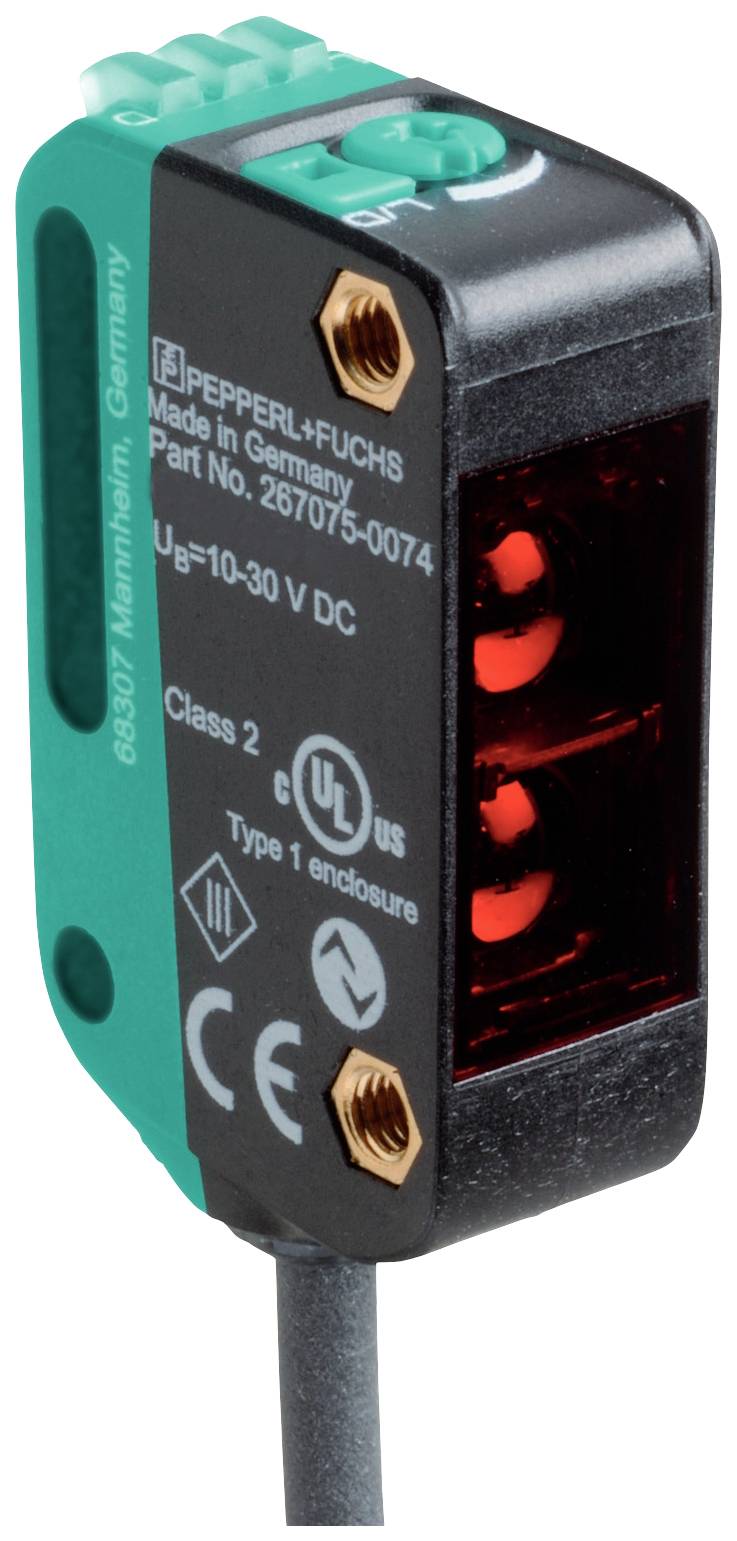

Sensor with green-black housing, two red lights and technical specifications, including 'Made in Germany', 'Uᵤ=10-30 V DC'.

Image similar

Product type

Retroreflective photo sensor

Functions

Switch (light-ON/dark-ON)

Max. operating voltage

30 V DC

Connector

Cable

Type

OBT150-R100-2EP1-IO-IR

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective photo sensor

Type: OBT150-R100-2EP1-IO-IR

Functions: Switch (light-ON/dark-ON)

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 1 ms

Outputs: NPN NC
NPN NO
PNP NC
PNP NO

Switching frequency: 500 Hz

Connector: Cable

Cable length: 2 m

Enclosure material: Polycarbonate (PC)

Transmitter type: LED IR

Wavelength: 850 nm

: 150 mm

Features: LED indicator

Min. temperature: -40 °C

Max. temperature: 60 °C

Width: 11 mm

Height: 37.1 mm

Depth: 21.5 mm

Dim: (W x H x D) 11 x 37.1 x 21.5 mm

Content: 1 pc(s)

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2627809 Pepperl+Fuchs Retroreflective photo sensor OBT150-R100-2EP1-IO-IR 267075-100502 Switch (light-ON/dark-ON) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2627809 Pepperl+Fuchs Retroreflective photo sensor OBT150-R100-2EP1-IO-IR 267075-100502 Switch (light-ON/dark-ON) 1 pc(s)

Description

Scanning range: 5 ... 150 mm, light transmitter: LED, light type: infrared, alternating light 850 nm, signal output: 2 push-pull outputs, Short-circuit-proof, polarity reversal protected, overvoltage-proof, interface type: IO-Link ( via C/Q = BK ), circuit type: The switching type of the sensor can be switched. The delivery status is: C/Q - BK: NPN NC / dark switching, PNP NO / light switching, IO-Link /Q - WH: NPN NO / light switching, PNP NC / dark switching, connection: Fixed cable 2 m, operating voltage: 10 ... 30 V DC, ambient temperature: -40 ... 60 °C (-40 ... 140 °F) , cable laid fixed -25 ... 60 °C (-13 ... 140 °F) , cable movable not suitable for drag chains

This text is machine translated.

Features

General dataScanning range: 5 ... 150 mmMin. Scanning range: 5 ... 25 mmMax. Scanning range: 5 ... 150 mmSetting range: 25 ... 150 mmReference object: Standard white, 100 mm x 100 mmLight transmitter: LEDLight type: infrared, alternating light 850 nmLED risk group identification: Free groupBlack and white difference (6%/90%): < 5% at 150 mmLight spot diameter: Approx. 12 mm at a distance of 150 mmAngle of detection 4 °Ambient light limit: EN 60947-5-2 : 40000 LuxFunctional safety characteristicsMTTFd: 600 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED: | static on - Power-On | flashing (4 Hz) - Short circuit | flashing with short interruption (1 Hz) - IO-Link modeFunction display: Yellow LED: | static on - object detected | static off - object not detectedControls: Light/dark switchControls: Touch-width adjustmentElectrical DataOperating voltage 10 ... 30 V DCRipple: Max. 10%No-load current < 25 mA at 24 V supply voltageProtection class IIIInterfaceInterface type: IO-Link ( via C/Q = BK )IO-Link version: 1.1Device profile: smart sensorDevice ID: 0x110611 (1115665)Transfer rate: COM2 (38.4 kBit/s)Min Cycle time: 2.3 msProcess data width: Process data input 1 bit | Process data output 2 bitSIO mode support: YesCompatible master port type: A.OutputSwitching type: The switching type of the sensor can be switched. The delivery status is: | C/Q - BK: NPN NC / dark switching, PNP NO / light switching, IO-Link | /Q - WH: NPN NO / light switching, PNP NC / dark switchingSignal output: 2 push-pull outputs, short-circuit proof, polarity reversal protected, overvoltage proofSwitching voltage 30 V/DC maxSwitching current: Max. 100 mA, resistive loadUsage category: DC-12 and DC-13Voltage drop: ≤ 1.5 V DCSwitching frequency 500 HzResponse time 1 msComplianceCommunication interface: IEC 61131-9Product standard EN 60947-5-2Approvals and certificatesEAC COMPLIANCE: TR CU 020/2011UL approval: E87056 , cULus listed , "Class 2" power supply , Type rating 1Ambient conditionsAmbient temperature: -40 ... 60 °C (-40 ... 140 °F) , cable laid fixed | -25 ... 60 °C (-13 ... 140 °F) , cable movable not suitable for drag chainsStorage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Case width 11 mmCase height: 37.1 mmHousing depth 21.5 mmPROTECTION CLASS IP67 / IP69 / IP69KAnschluss: Festkabel 2 mMaterials Housing: PC (polycarbonate) Light emission: PMMAApproximate weight 36 gCable length: 2 m

Hints

For more information on this 267075-100502, please refer to its datasheet under 'downloadable documents'
