Name: Pepperl+Fuchs Retroreflective photo sensor OBT350-R100-E5-IO-V31 267075-100586 Background suppression 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2629059

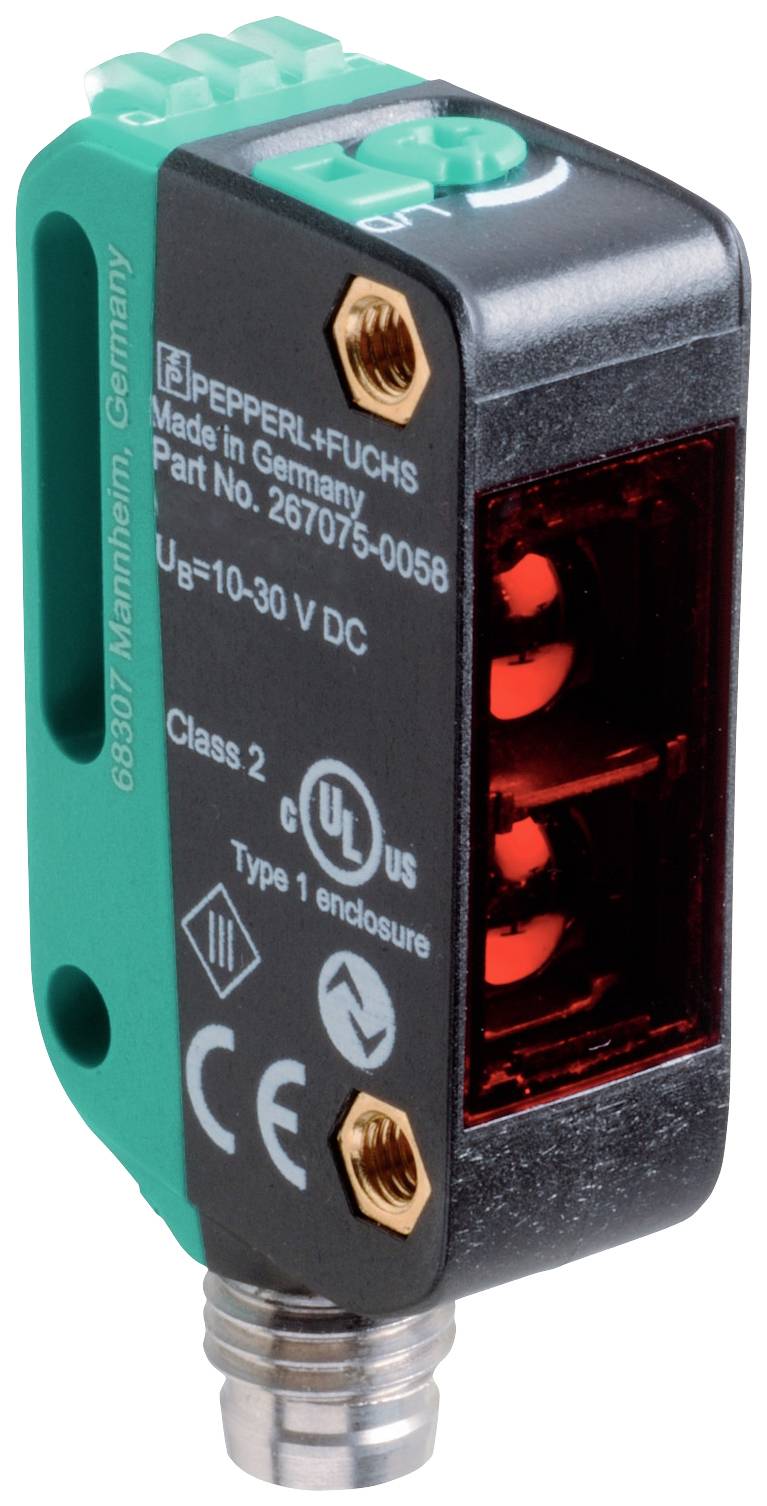

Electronic sensor with plastic casing. Printing shows 'Pepperl+Fuchs', CE marking, technical specifications and electrical voltage.

Image similar

Product type

Retroreflective photo sensor

Functions

Background suppression

Max. operating voltage

30 V DC

Connector

M8 (4-pin)

Type

OBT350-R100-E5-IO-V31

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective photo sensor

Type: OBT350-R100-E5-IO-V31

Functions: Background suppression

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 1 ms

Contact type: 1 PNP

Outputs: PNP NO

Switching frequency: 500 Hz

Connector: M8 (4-pin)

Enclosure material: PC

Transmitter type: LED red

: 350 mm

Features: Incl. background suppression

Min. temperature: -40 °C

Max. temperature: 60 °C

Width: 11 mm

Height: 44.5 mm

Depth: 21.5 mm

Dim: (W x H x D) 11 x 44.5 x 21.5 mm

Content: 1 pc(s)

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2629059 Pepperl+Fuchs Retroreflective photo sensor OBT350-R100-E5-IO-V31 267075-100586 Background suppression 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2629059 Pepperl+Fuchs Retroreflective photo sensor OBT350-R100-E5-IO-V31 267075-100586 Background suppression 1 pc(s)

Description

Scanning range: 5 ... 350 mm, light transmitter: LED, light type: Red, changeover light, signal output: 1 PNP, Short-circuit-proof, reverse polarity protected, interface type: IO-Link ( via C/Q = pin 4 ), circuit type: The circuit type of the sensor can be switched. The delivery status is: C/Q - BK: PNP NO / light switching, IO-Link , connection: Device plug M8 x 1, 4-pin, operating voltage: 10 ... 30 V DC, ambient temperature: -40 ... 60 °C (-40 ... 140 °F)

This text is machine translated.

Features

General dataScanning range: 5 ... 350 mmMin. Scanning range: 5 ... 25 mmMax. Scanning range: 5 ... 350 mmSetting range: 25 ... 350 mmReference object: Standard white, 100 mm x 100 mmLight transmitter: LEDLight: red, modulated lightLED risk group identification: Free groupBlack and white difference (6%/90%) < : 15% at 350 mmLight spot diameter: Approx. 20 mm at a distance of 350 mmAngle of detection 3 °Ambient light limit: EN 60947-5-2 : 40000 LuxFunctional safety characteristicsMTTFd: 600 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED: | static on - Power-On | flashing (4 Hz) - Short circuit | flashing with short interruption (1 Hz) - IO-Link modeFunction display: Yellow LED: | static on - object detected | static off - object not detectedControls: Light/dark switchControls: Touch-width adjustmentElectrical DataOperating voltage 10 ... 30 V DCRipple: Max. 10%No-load current < 25 mA at 24 V supply voltageProtection class IIIInterfaceInterface type: IO-Link ( via C/Q = pin 4 )IO-Link version: 1.1Device profile: smart sensorUnit ID: 0x110613 (1115667)Transfer rate: COM2 (38.4 kBit/s)Min Cycle time: 2.3 msProcess data width: Process data input 1 bit | Process data output 2 bitSIO mode support: YesCompatible master port type: A.OutputSwitching type: The switching type of the sensor can be switched. The delivery status is: | C/Q - BK: PNP NO / light switching, IO-Link | Signal output: 1 PNP, short circuit proof, reverse polarity protectedSwitching voltage 30 V/DC maxSwitching current: Max. 100 mA, resistive loadUsage category: DC-12 and DC-13Voltage drop: ≤ 1.5 V DCSwitching frequency 500 HzResponse time 1 msComplianceCommunication interface: IEC 61131-9Product standard EN 60947-5-2Approvals and certificatesEAC COMPLIANCE: TR CU 020/2011UL approval: E87056 , cULus listed , "Class 2" power supply , Type rating 1Ambient conditionsAmbient temperature: -40 ... 60 °C (-40 ... 140 °F) | Storage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Case width 11 mmHousing height 44.5 mmHousing depth 21.5 mmPROTECTION CLASS IP67 / IP69 / IP69KConnection: Device plug M8 x 1, 4-pinMaterials Housing: PC (polycarbonate) Light emission: PMMAApproximate weight 10 g

Hints

For more information on this 267075-100586, please refer to its datasheet under 'downloadable documents'
