Name: Pepperl+Fuchs Retroreflective photo sensor OBT80-R103-EP-IO-V3-L 267075-100291 Push-pull (inverted) Light-ON 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2628763

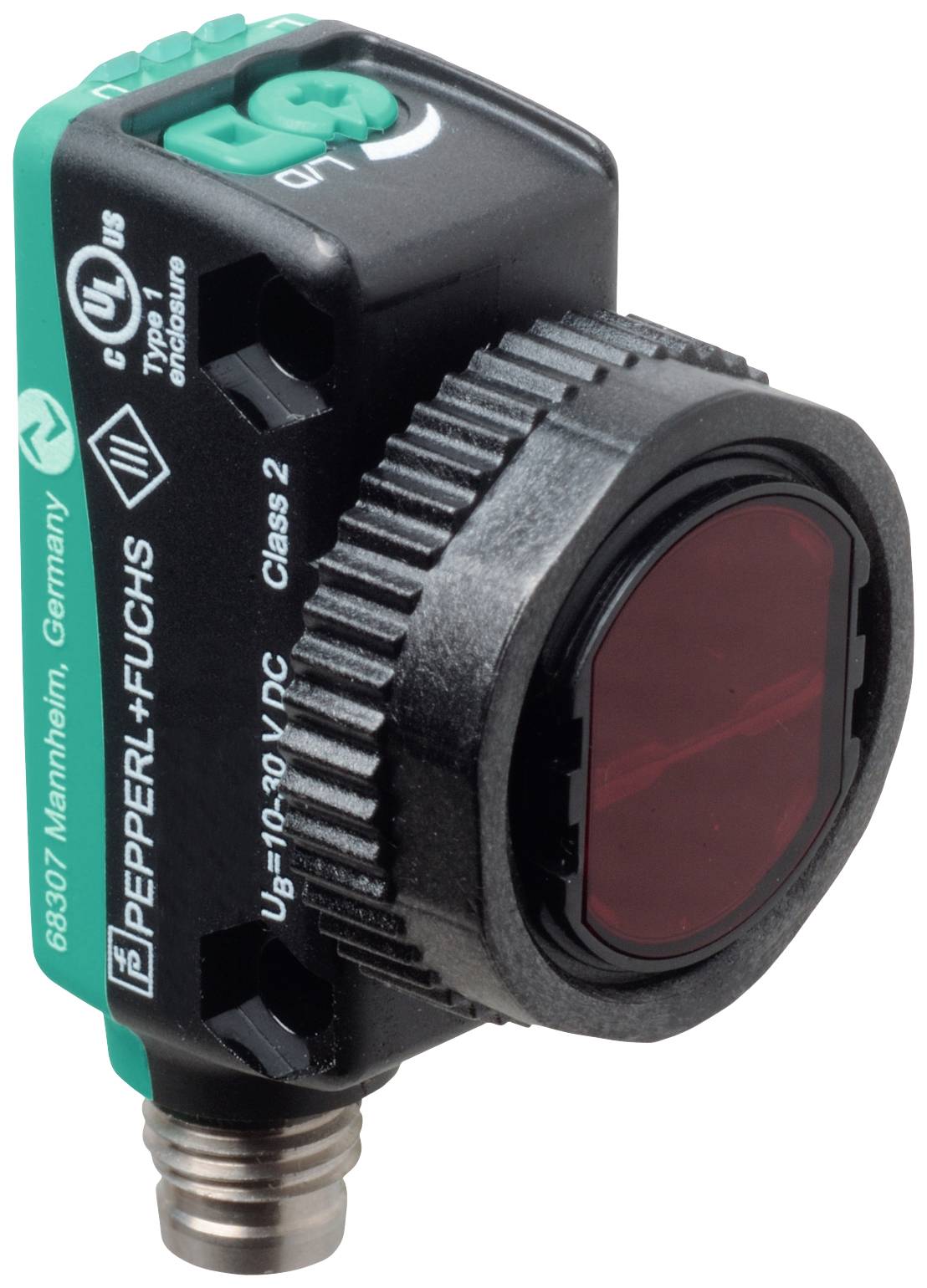

Industrial sensors from Pepperl+Fuchs with a black housing and red lens element, recognisable for industrial applications.

Image similar

Product type

Retroreflective photo sensor

Functions

Light-ON

Max. operating voltage

30 V DC

Connector

Type

OBT80-R103-EP-IO-V3-L

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective photo sensor

Type: OBT80-R103-EP-IO-V3-L

Model: Push-pull (inverted)

Functions: Light-ON

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 300 µs

Outputs: NPN NO
PNP NC

Switching frequency: 1650 Hz

Connector: M8

Enclosure material: Polycarbonate (PC)

Transmitter type: Laser diode

Laser class: 1

Wavelength: 680 nm

: 80 mm

Features: LED indicator

Min. temperature: -40 °C

Max. temperature: 60 °C

Width: 15 mm

Height: 43.9 mm

Depth: 26.7 mm

Dim: (W x H x D) 15 x 43.9 x 26.7 mm

Content: 1 pc(s)

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2628763 Pepperl+Fuchs Retroreflective photo sensor OBT80-R103-EP-IO-V3-L 267075-100291 Push-pull (inverted) Light-ON 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2628763 Pepperl+Fuchs Retroreflective photo sensor OBT80-R103-EP-IO-V3-L 267075-100291 Push-pull (inverted) Light-ON 1 pc(s)

Description

Scanning range: 7 ... 80 mm, light transmitter: Laser diode, light type: Red, changeover light, signal output: 1 push-pull output, Short-circuit-proof, polarity reversal protected, overvoltage-proof, interface type: IO-Link ( via C/Q = pin 4 ), circuit type: The switching type of the sensor can be switched. The delivery status is: C/Q - Pin4: NPN NO / light-switching, PNP NC / dark-switching, IO-Link, connection: Device plug M8 x 1, 3-pole, operating voltage: 10 ... 30 V DC, ambient temperature: -40 ... 60 °C (-40 ... 140 °F)

This text is machine translated.

Features

General dataScanning range: 7 ... 80 mmMin. Scanning range: 7 ... 25 mmMax. Scanning range: 7 ... 80 mmSetting range: 25 ... 80 mmReference object: Standard white, 100 mm x 100 mmLight transmitter: Laser diodeLight: red, modulated lightLaser characteristics NOTE: LASER LIGHT , DO NOT LOOK INTO THE BEAM Laser class: 1 Wavelength 680 nm Beam divergence: > 5 mrad d63 < 1 mm in the range 150 mm ... 250 mm Pulse duration: 3 µs Refresh rate approx. 13 kHz Max. Pulse Energy: 10.4 NJBlack/white difference (6%/90%): < 5% at 60 mmLight spot diameter: < 1 mm at a distance of 60 mmAngle of detection 0.3 °Ambient light limit: EN 60947-5-2 : 40000 LuxFunctional safety characteristicsMTTFd: 560 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED: | static on - Power-On | flashing (4 Hz) - Short circuit | flashing with short interruption (1 Hz) - IO-Link modeFunction display: Yellow LED: | static on - object detected | static off - object not detectedControls: Light/dark switchControls: Touch-width adjustmentElectrical DataOperating voltage 10 ... 30 V DCRipple: Max. 10%No-load current < : 20 mA at 24 V supply voltageProtection class IIIInterfaceInterface type: IO-Link ( via C/Q = pin 4 )Device profile: smart sensorTransfer rate: COM2 (38.4 kBit/s)IO-Link version: 1.1Min Cycle time: 2.3 msProcess data width: Process data input 1 bit | Process data output 2 bitSIO mode support: YesDevice ID: 0x110606 (1115654)Compatible master port type: A.OutputSwitching type: The switching type of the sensor can be switched. The delivery status is: | C/Q - Pin4: NPN NO / light-switching, PNP NC / dark-switching, IO-Link | Signal output: 1 push-pull output, short-circuit proof, polarity reversal protected, overvoltage proofSwitching voltage 30 V/DC maxSwitching current: Max. 100 mA, resistive loadUsage category: DC-12 and DC-13Voltage drop: ≤ 1.5 V DCSwitching frequency 1650 HzResponse time 300 µsComplianceCommunication interface: IEC 61131-9Product standard EN 60947-5-2Laser safety: EN 60825-1:2014Approvals and certificatesUL approval: E87056 , cULus listed , "Class 2" power supply , Type rating 1FDA approval: IEC 60825-1:2007 complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007Ambient conditionsAmbient temperature: -40 ... 60 °C (-40 ... 140 °F) | Storage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Case width 15 mmHousing height 43.9 mmHousing depth 26.7 mmPROTECTION CLASS IP67 / IP69 / IP69KConnection: Device plug M8 x 1, 3-pinMaterials Housing: PC (polycarbonate) Light emission: PMMAApproximate weight 12 g

Hints

For more information on this 267075-100291, please refer to its datasheet under 'downloadable documents'
