Name: Pepperl+Fuchs Retroreflective photo sensor OQT120-R103-2EP-IO 267075-100353 Teach-in 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2628961

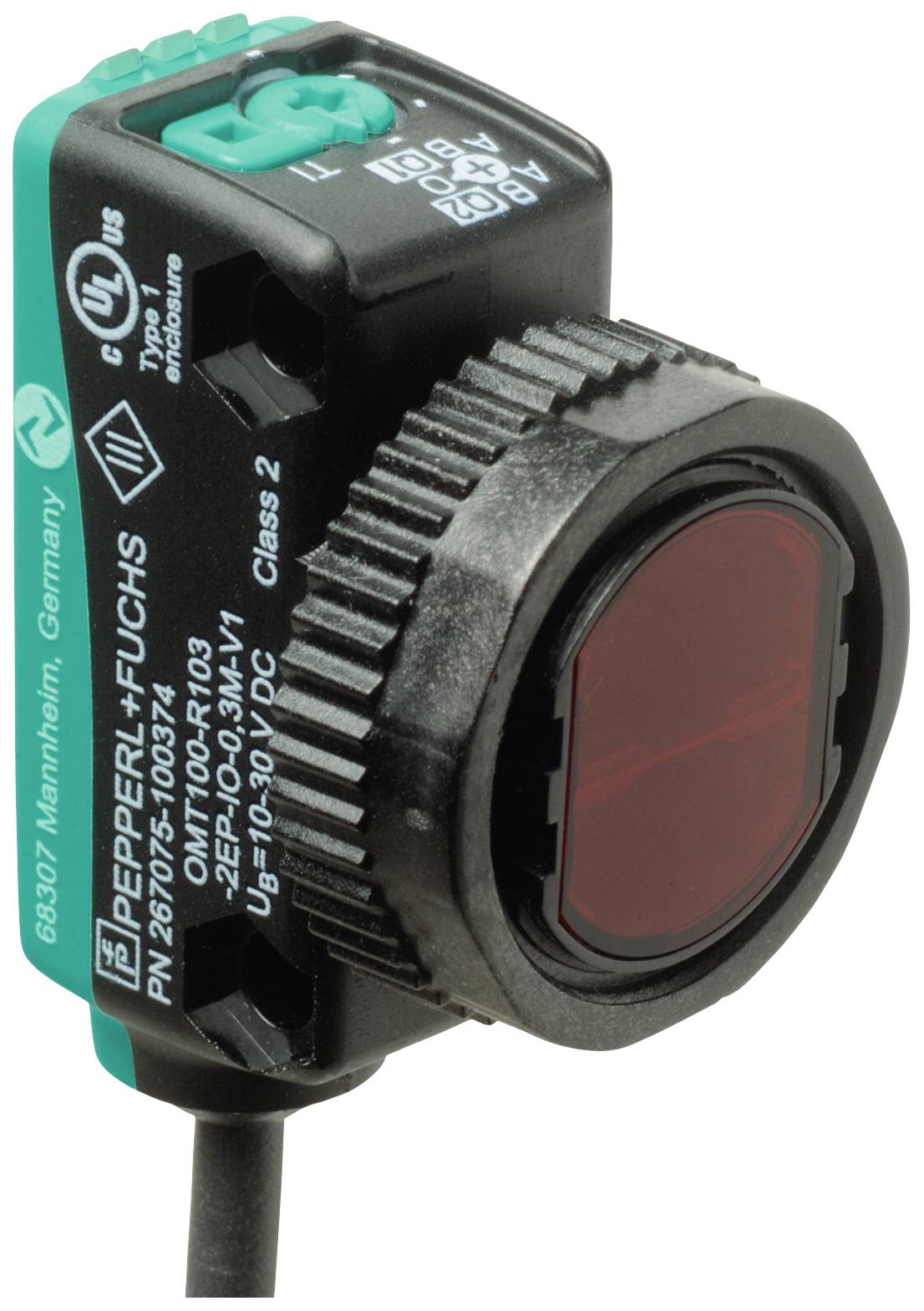

Sensor with a rectangular housing, red front window, and cable connection. Labelled with 'Pepperl + Fuchs', model number, and technical specifications.

Image similar

Product type

Retroreflective photo sensor

Functions

Teach-in

Max. operating voltage

30 V DC

Connector

Cable

Type

OQT120-R103-2EP-IO

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective photo sensor

Type: OQT120-R103-2EP-IO

Functions: Teach-in

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 2.3 ms

Contact type: Antivalent

Outputs: NPN NO
PNP NC

Switching frequency: 217 Hz

Connector: Cable

Cable length: 2 m

Enclosure material: Polycarbonate (PC)

Transmitter type: LED red

: 120 mm

Features: LED indicator

Min. temperature: -40 °C

Max. temperature: 60 °C

Width: 15 mm

Height: 36.5 mm

Depth: 26.7 mm

Dim: (W x H x D) 15 x 36.5 x 26.7 mm

Content: 1 pc(s)

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2628961 Pepperl+Fuchs Retroreflective photo sensor OQT120-R103-2EP-IO 267075-100353 Teach-in 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2628961 Pepperl+Fuchs Retroreflective photo sensor OQT120-R103-2EP-IO 267075-100353 Teach-in 1 pc(s)

Description

Scanning range: 5 ... 120 mm, light transmitter: LED, light type: Red, changeover light, signal output: 2 push-pull outputs, Short-circuit proof, reverse polarity protected, overvoltage-proof, interface type: IO-Link ( via C/Q = BK ), circuit type: The delivery status is: C/Q - BK: NPN NO, PNP NC, IO-Link Q2 - WH: NPN NO, PNP NC, NC, connection: 2 m fixed cable, operating voltage: 10 ... 30 V DC, ambient temperature: -40 ... 60 °C (-40 ... 140 °F) , cable laid fixed -25 ... 60 °C (-13 ... 140 °F) , cable movable not suitable for drag chains

This text is machine translated.

Features

General dataScanning range: 5 ... 120 mmMin. Scanning range: 5 ... 20 mmMax. Scanning range: 5 ... 120 mmSetting range: 20 ... 120 mmReference object: Standard white, 100 mm x 100 mmLight transmitter: LEDLight: red, modulated lightLED risk group identification: Free groupBlack/white difference (6%/90%): < 5% at 120 mmLight spot diameter: Approx. 8 mm at a distance of 120 mmAngle of detection 4 °Ambient light limit: EN 60947-5-2 : 30000 LuxFunctional safety characteristicsMTTFd: 600 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED: | static on - Power-On | flashing (4 Hz) - Short circuit | flashing with short interruption (1 Hz) - IO-Link modeFunction display: Yellow LED: Static on - switch output active-static off - switch output inactiveControls: Teach-in buttonControls: 5-stage rotary switch for selecting operating modesElectrical DataOperating voltage 10 ... 30 V DCRipple: Max. 10%No-load current < 25 mA at 24 V supply voltageProtection class IIIInterfaceInterface type: IO-Link ( via C/Q = BK )Device profile: smart sensorTransfer rate: COM2 (38.4 kBit/s)IO-Link version: 1.1Min Cycle time: 2.3 msProcess data width: Process data input 2 bits | Process data output 2 bitsSIO mode support: YesDevice ID: 0x110803 (1116163)Compatible master port type: A.OutputSwitching type: The delivery status is: | C/Q - BK: NPN NO, PNP NC, IO-Link | Q2 - WH: NPN NO, PNP NCSignal output: 2 push-pull outputs, short-circuit proof, polarity reversal protected, overvoltage proofSwitching voltage 30 V/DC maxSwitching current: Max. 100 mA, resistive loadUsage category: DC-12 and DC-13Voltage drop: ≤ 1.5 V DCSwitching frequency 217 HzResponse time 2.3 msComplianceCommunication interface: IEC 61131-9Product standard EN 60947-5-2Approvals and certificatesUL approval: E87056 , cULus listed , "Class 2" power supply , Type rating 1Ambient conditionsAmbient temperature: -40 ... 60 °C (-40 ... 140 °F) , cable laid fixed | -25 ... 60 °C (-13 ... 140 °F) , cable movable not suitable for drag chainsStorage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Case width 15 mmHousing height 36.5 mmHousing depth 26.7 mmPROTECTION CLASS IP67 / IP69 / IP69KConnection 2 m fixed cableMaterials Housing: PC (polycarbonate) Light emission: PMMAApproximate weight 38 gCable length: 2 m

Hints

For more information on this 267075-100353, please refer to its datasheet under 'downloadable documents'
