Name: Pepperl+Fuchs Retroreflective photo sensor OQT150-R100-EP-IO-0,3M-V3 267075-100154 Push-pull (inverted) Teach-in 1 pc(s)
Brand: Pepperl+Fuchs
SKU: 2628940

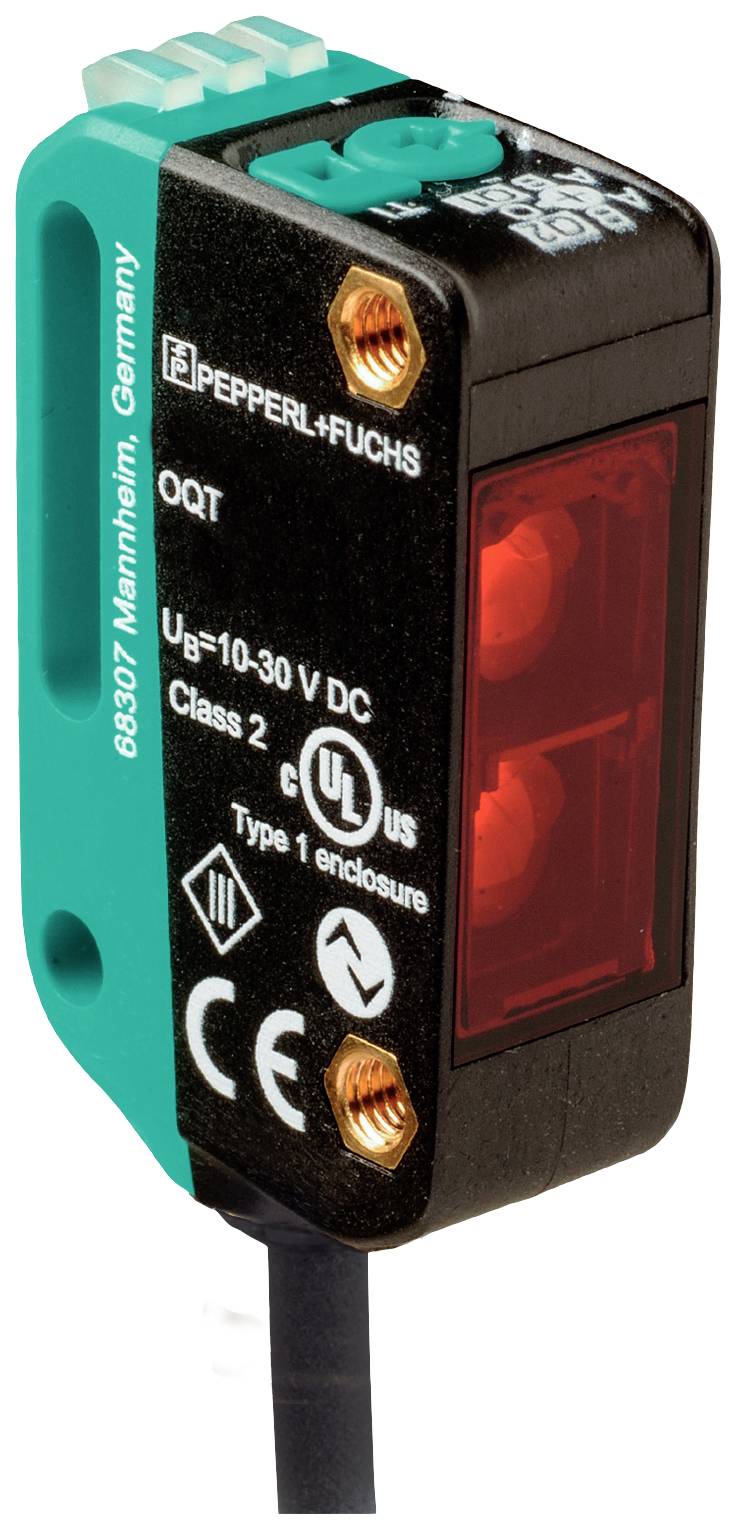

Sensor with the inscription 'Pepperl+Fuchs', showing electrical specifications: Voltage 10-30 V DC, CE marking.

Image similar

Product type

Retroreflective photo sensor

Functions

Teach-in

Max. operating voltage

30 V DC

Connector

Type

OQT150-R100-EP-IO-0,3M-V3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Retroreflective photo sensor

Type: OQT150-R100-EP-IO-0,3M-V3

Model: Push-pull (inverted)

Functions: Teach-in

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Response time: 2.3 ms

Contact type: 1 PNP

Outputs: NPN NO
PNP NC

Switching frequency: 217 Hz

Connector: M8

Cable length: 0.3 m

Enclosure material: Polycarbonate (PC)

Transmitter type: LED red

: 150 mm

Features: Incl. background suppression

Min. temperature: -40 °C

Max. temperature: 60 °C

Length: 0.3 m

Width: 11 mm

Height: 37.1 mm

Depth: 21.5 mm

Dim: (L x W x H) 0.3 m x 11 mm x 37.1 mm

Content: 1 pc(s)

Wireless charging: No

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2628940 Pepperl+Fuchs Retroreflective photo sensor OQT150-R100-EP-IO-0,3M-V3 267075-100154 Push-pull (inverted) Teach-in 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2628940 Pepperl+Fuchs Retroreflective photo sensor OQT150-R100-EP-IO-0,3M-V3 267075-100154 Push-pull (inverted) Teach-in 1 pc(s)

Description

Scanning range: 5 ... 150 mm, light transmitter: LED, light type: Red, changeover light, signal output: 1 push-pull output, Short-circuit proof, reverse polarity protected, overvoltage-proof, interface type: IO-Link ( via C/Q = pin 4 ), circuit type: The delivery status is: C/Q - Pin4: NPN NO, PNP NC, IO-Link, connection: Fixed cable 300 mm with plug M8 x 1, 3-pin, operating voltage: 10 ... 30 V DC, ambient temperature: -40 ... 60 °C (-40 ... 140 °F) , cable laid fixed -25 ... 60 °C (-13 ... 140 °F) , cable movable not suitable for drag chains

This text is machine translated.

Features

General dataScanning range: 5 ... 150 mmMin. Scanning range: 5 ... 20 mmMax. Scanning range: 5 ... 150 mmSetting range: 20 ... 150 mmReference object: Standard white, 100 mm x 100 mmLight transmitter: LEDLight: red, modulated lightLED risk group identification: Free groupBlack and white difference (6%/90%): < 5% at 150 mmLight spot diameter: Approx. 10 mm at a distance of 150 mmAngle of detection 4 °Ambient light limit: EN 60947-5-2 : 30000 LuxFunctional safety characteristicsMTTFd: 600 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Displays/controlsPower indicator: Green LED: | static on - Power-On | flashing (4 Hz) - Short circuit | flashing with short interruption (1 Hz) - IO-Link modeFunction display: Yellow LED: Static on - switch output active-static off - switch output inactiveControls: Teach-in buttonControls: 5-stage rotary switch for selecting operating modesElectrical DataOperating voltage 10 ... 30 V DCRipple: Max. 10%No-load current < 25 mA at 24 V supply voltageProtection class IIIInterfaceInterface type: IO-Link ( via C/Q = pin 4 )IO-Link version: 1.1Device profile: smart sensorDevice ID: 0x110801 (1116161)Transfer rate: COM2 (38.4 kBit/s)Min Cycle time: 2.3 msProcess data width: Process data input 2 bits | Process data output 2 bitsSIO mode support: YesCompatible master port type: A.OutputSwitching type: The delivery status is: | C/Q - Pin4: NPN NO, PNP NC, IO-Link | Signal output: 1 push-pull output, short-circuit proof, polarity reversal protected, overvoltage proofSwitching voltage 30 V/DC maxSwitching current: Max. 100 mA, resistive loadUsage category: DC-12 and DC-13Voltage drop: ≤ 1.5 V DCSwitching frequency 217 HzResponse time 2.3 msComplianceCommunication interface: IEC 61131-9Product standard EN 60947-5-2Approvals and certificatesEAC COMPLIANCE: TR CU 020/2011UL approval: E87056 , cULus listed , "Class 2" power supply , Type rating 1Ambient conditionsAmbient temperature: -40 ... 60 °C (-40 ... 140 °F) , cable laid fixed | -25 ... 60 °C (-13 ... 140 °F) , cable movable not suitable for drag chainsStorage temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Case width 11 mmCase height: 37.1 mmHousing depth 21.5 mmPROTECTION CLASS IP67 / IP69 / IP69KConnection: Fixed cable 300 mm with plug M8 x 1, 3-pinMaterials Housing: PC (polycarbonate) Light emission: PMMAApproximate weight 17 gCable length 0.3 m.
