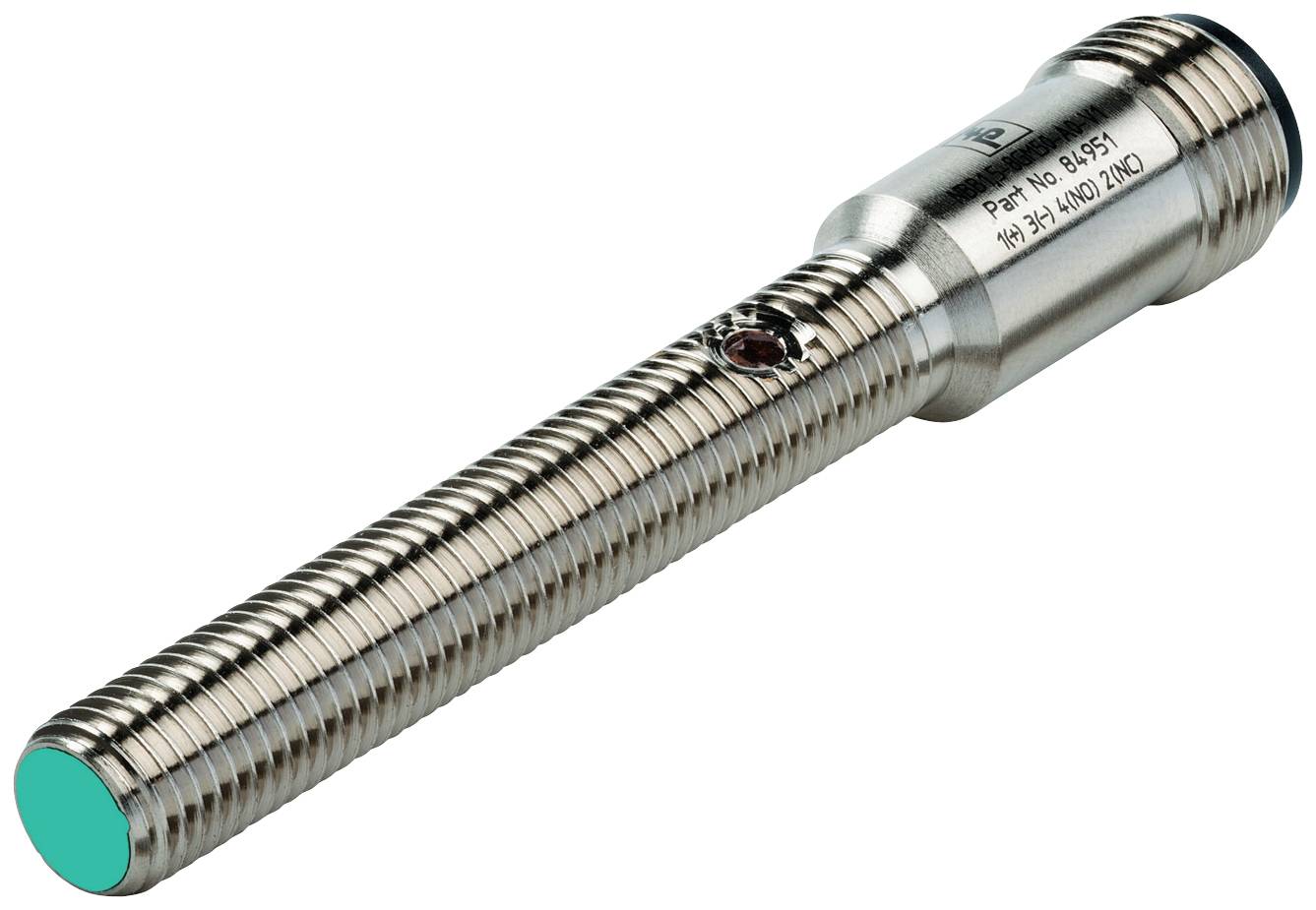

Image similar
Image similar
Pepperl+Fuchs Sensor Inductive NBB1,5-8GM50-A2-V1 089953 M12 shielded PNP
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V
Contact type
Antivalent
Switching distance (max.)
1.5 mm
Outputs
PNP
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NBB1,5-8GM50-A2-V1
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Contact type
Antivalent
- Switching distance (max.)
1.5 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
shielded
- Size
M12
- Connector
M12 plug (4-pin)
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
1500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627718 Pepperl+Fuchs Sensor Inductive NBB1,5-8GM50-A2-V1 089953 M12 shielded PNP
User & Safety Instructions
User & Safety Instructions 2627718 Pepperl+Fuchs Sensor Inductive NBB1,5-8GM50-A2-V1 089953 M12 shielded PNP
Description
Switching distance: 1.5 mm, installation: Flush, switching function: Antivalent, output type: PNP, operating voltage: 10 ... 30 V, operating current: 0 ... 100 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: AntivalentOutput type: PNPSwitching distance: 1.5 mmInstallation: FlushOutput polarity: DCSafe switching distance: 0 ... 1.215 mm.Reduction factor rAl: 0.45Reduction factor rCu: 0.35Reduction factor rV2A (1.4301) : 0.75Output type: 4-wireCharacteristicsOperating voltage 10 ... 30 VSwitching frequency: 0 ... 1500 HzReverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop ≤ 3 VOperating current: 0 ... 100 mAResidual current: 0 ... 0.5 mA type. 0.1 µA at 25 °C.No-load current ≤ 20 mASwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 2660 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesUL approval: CULus Listed, General PurposeAmbient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Mechanical data:Connection type: Device plug M12 x 1 , 4-pinHousing material: Nickel-plated brassFace: LCPProtection class IP67
