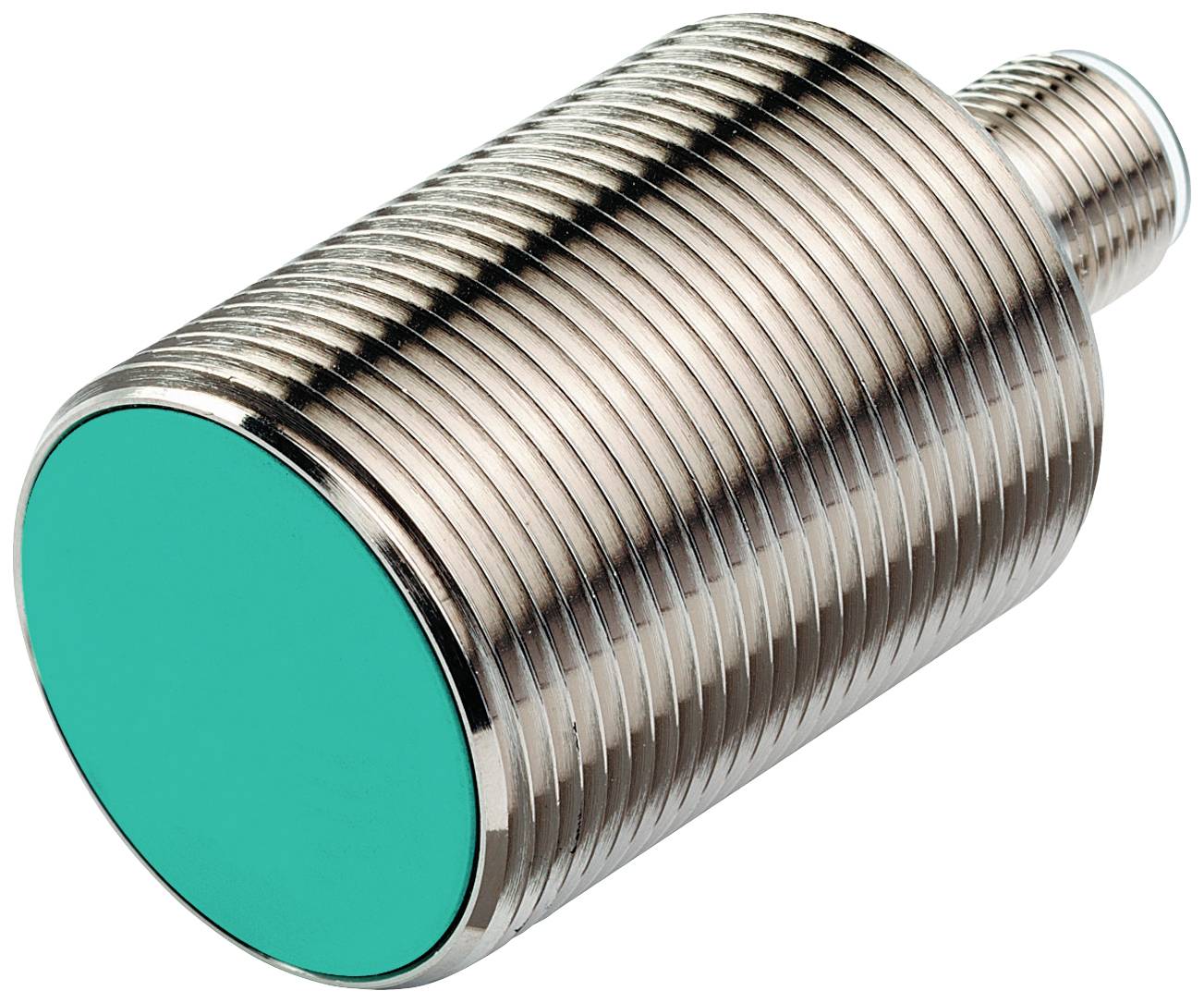

Pepperl+Fuchs Sensor Inductive NBB10-30GM40-Z3-V1 089216 M30 shielded Two-wire
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
60 V
Contact type
1 maker
Switching distance (max.)
10 mm
Outputs
Two-wire
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NBB10-30GM40-Z3-V1
- Min. operating voltage
5 V
- Max. operating voltage
60 V
- Operating voltage
5 - 60 V
- Contact type
1 maker
- Switching distance (max.)
10 mm
- Outputs
Two-wire
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
shielded
- Size
M30
- Connector
M12 plug (4-pin)
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
150 Hz
- UKCA
yes
