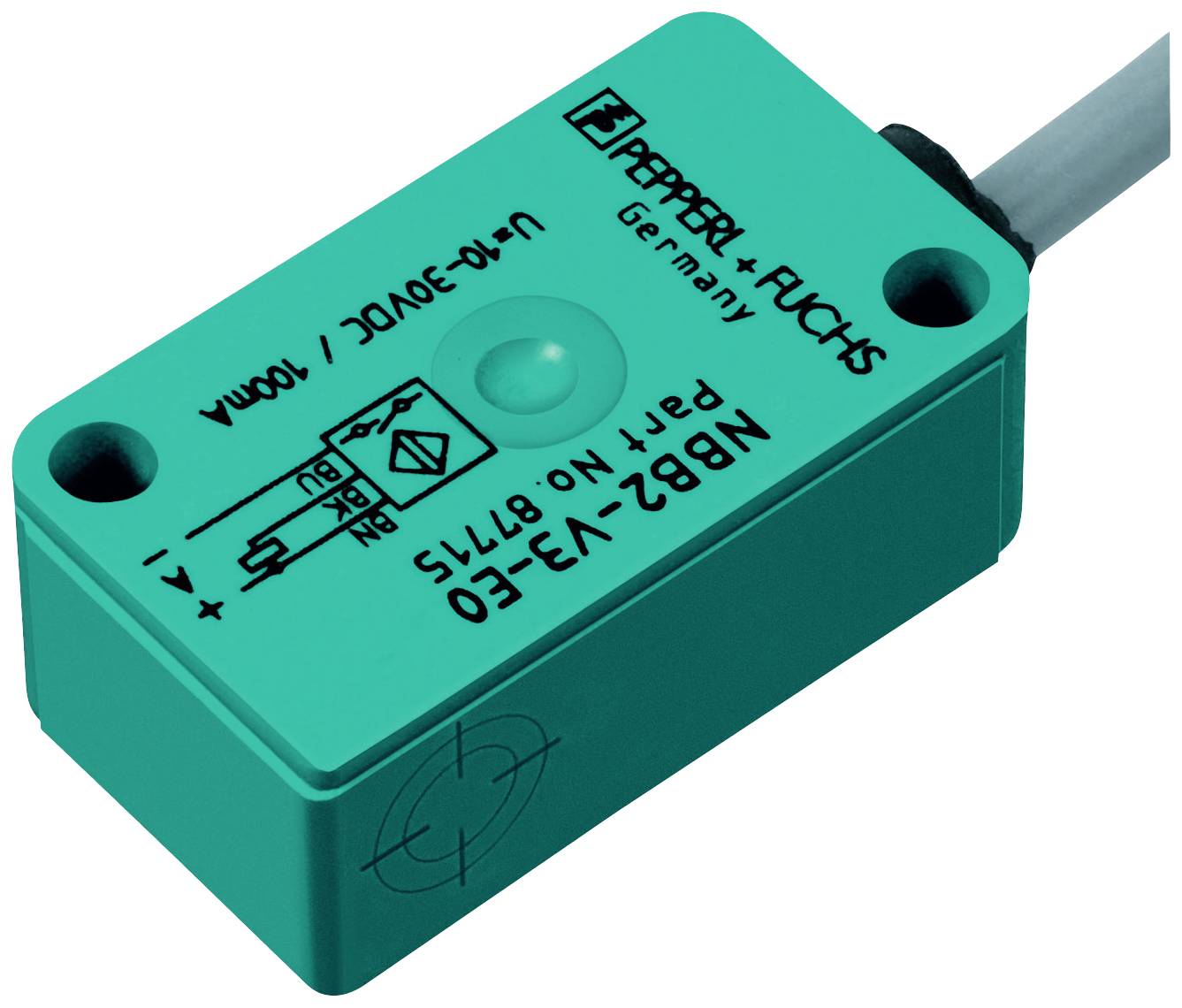

Image similar
Pepperl+Fuchs Sensor Inductive NBB2-V3-E2-0,2M-V3 104186 shielded PNP
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
2 mm
Outputs
PNP
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NBB2-V3-E2-0,2M-V3
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Outputs
PNP
- Enclosure material
PBT
- Model
Inductive
- Installation type
shielded
- Connector
Cable
- Cable length
200 mm
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
1000 Hz
Documents & Downloads
Datasheet
Datasheet 2628192 Pepperl+Fuchs Sensor Inductive NBB2-V3-E2-0,2M-V3 104186 shielded PNP
User & Safety Instructions
User & Safety Instructions 2628192 Pepperl+Fuchs Sensor Inductive NBB2-V3-E2-0,2M-V3 104186 shielded PNP
Description
Switching distance: 2 mm, installation: Flush, switching function: Normally open contact (NO), output type: PNP, operating voltage: 10 ... 30 V DC, operating current: 0 ... 100 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: PNPSwitching distance: 2 mmInstallation: FlushOutput polarity: DCSafe switching distance: 0 ... 1.62 mmReduction factor rAl: 0.35Reduction factor rCu: 0.2Reduction factor rV2A (1.4301) : 0.7Output type: 3-wireCharacteristicsOperating voltage 10 ... 30 V DCSwitching frequency: 0 ... 1000 HzReverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop ≤ 3 VOperating current: 0 ... 100 mAResidual current: 0 ... 0.5 mA type. 0.1 µA at 25 °C.No-load current ≤ 15 mASwitching status indicator: LED, yellowCompliance with standards and directivesCompliance Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesUL approval: CULus Listed, General PurposeCSA approved: CCSAus Listed, General PurposeCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Mechanical data:Connection type: Cable connector M8 x 1 , 3-pin with PVC cable 200 mmHousing material: PBTFace: PBTProtection class IP67
