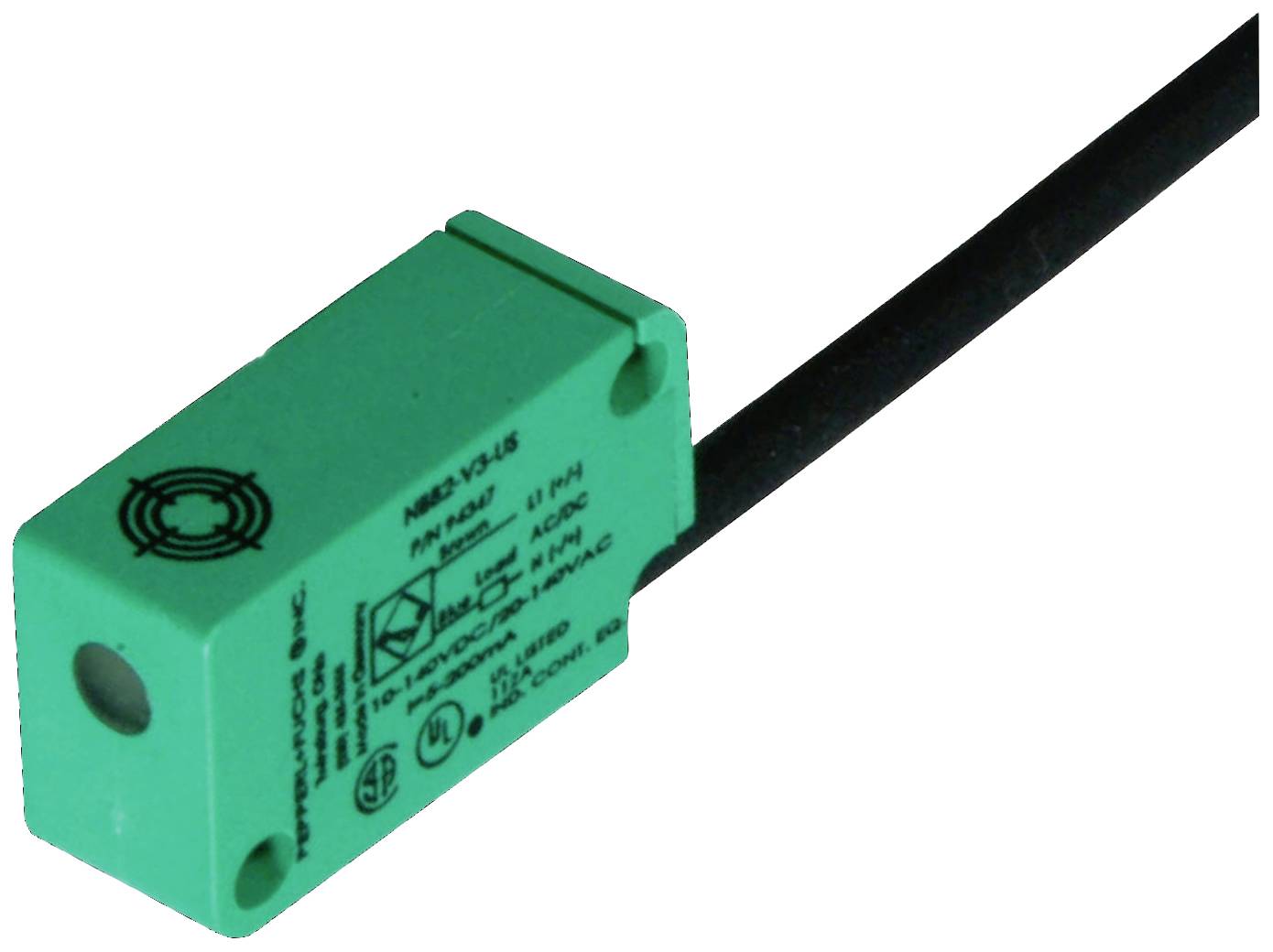

Image similar
Pepperl+Fuchs Sensor Inductive NBB2-V3-US 094347 shielded Two-wire
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
140 V DC/AC
Contact type
1 maker
Switching distance (max.)
2 mm
Outputs
Two-wire
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NBB2-V3-US
- Min. operating voltage
10 V DC
20 V AC
- Max. operating voltage
140 V DC/AC
- Operating voltage
10, 20 - 140 V DC/AC
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Outputs
Two-wire
- Enclosure material
PBT
- Model
Inductive
- Installation type
shielded
- Connector
Cable
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
25 Hz
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2627799 Pepperl+Fuchs Sensor Inductive NBB2-V3-US 094347 shielded Two-wire
User & Safety Instructions
User & Safety Instructions 2627799 Pepperl+Fuchs Sensor Inductive NBB2-V3-US 094347 shielded Two-wire
Description
Switching distance: 2 mm, installation: Flush mountable, switching function: Normally open contact (NO), output type: Two-wire, operating current: 5 ... 200 mA max.
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: Two-wireSwitching distance: 2 mmInstallation: Flush-mountableOutput polarity: AC/DCReduction factor rAl: 0.5Reduction factor rCu: 0.46Reduction factor rV2A (1.4301) : 0.9Reduction factor rSt37: 1Reduction factor rMS: 0.8CharacteristicsOperating voltage DC: 10 ... 140 VOperating voltage AC 20 ... 140 VSwitching frequency 25 HzReverse polarity protection: no.Short circuit protection: no.Voltage drop: ≤ 7 VOperating current: 5 ... 200 mA max.Residual current ≤ 0.8 mASwitching status indicator: LED, redCompliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Mechanical data:Connection type: PUR cable, 2 mWire cross-section 0.25 mm2Housing material: PBTFace: PBTProtection class IP67
