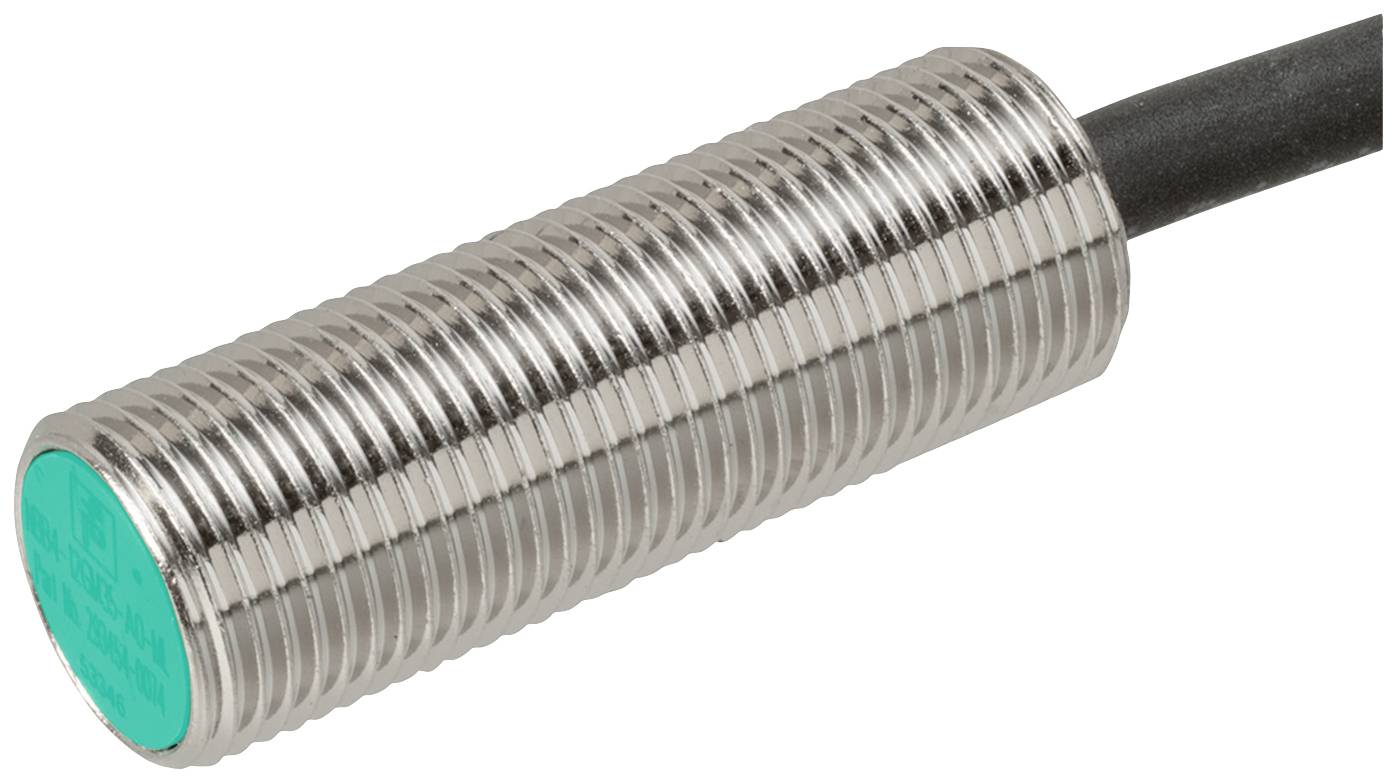

Pepperl+Fuchs Sensor Inductive NBB4-12GM35-A0-M1 293454-0074 M12 shielded NPN
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V
Contact type
Antivalent
Switching distance (max.)
4 mm
Outputs
NPN
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NBB4-12GM35-A0-M1
- Min. operating voltage
7 V
- Max. operating voltage
30 V
- Operating voltage
7 - 30 V
- Contact type
Antivalent
- Switching distance (max.)
4 mm
- Outputs
NPN
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
shielded
- Size
M12
- Connector
Cable
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP68
IP69K
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
2200 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628041 Pepperl+Fuchs Sensor Inductive NBB4-12GM35-A0-M1 293454-0074 M12 shielded NPN
User & Safety Instructions
User & Safety Instructions 2628041 Pepperl+Fuchs Sensor Inductive NBB4-12GM35-A0-M1 293454-0074 M12 shielded NPN
Description
Switching distance: 4 mm, installation: Flush, switching function: Antivalent, output type: NPN, operating voltage: 7 ... 30 V, operating current: 0 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: AntivalentOutput type: NPNSwitching distance: 4 mmInstallation: FlushOutput polarity: DCSafe switching distance: 0 ... 3.24 mmActuator: Structural steel, e.g. 1.0037, S235JR (formerly St37-2) | 12 mm x 12 mm x 1 mmReduction factor forAl: 0.4Reduction factor rCu: 0.3Reduction factor rV2A (1.4301) : 0.75Reduction factor rMS: 0.45Output type: 4-wireCharacteristicsOperating voltage 7 ... 30 VSwitching frequency: 0 ... 2200 HzHysteresis: type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop: ≤ 2 VOperating current: 0 ... 200 mAResidual current: 0 ... 0.5 mA type. 4 µA at 25 °C.No-load current ≤ 10 mAStandby delay: ≤ 100 msSwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 1484 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012 | EN 12895: 2015Approvals and certificatesUL recognized: CULus Listed, General Purpose, Class 2 power sourceCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.E1 type approval: 10R-04Ambient conditionsAmbient temperature: -40 ... 85 °C (-40 ... 185 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: PUR cable, 2 mWire cross-section 0.34 mm2Housing material: Nickel-plated brassFace: PBTProtection class IP68/IP69KWeight 66 gGeneral informationScope of delivery: Supplied with 2 nuts with locking teeth
