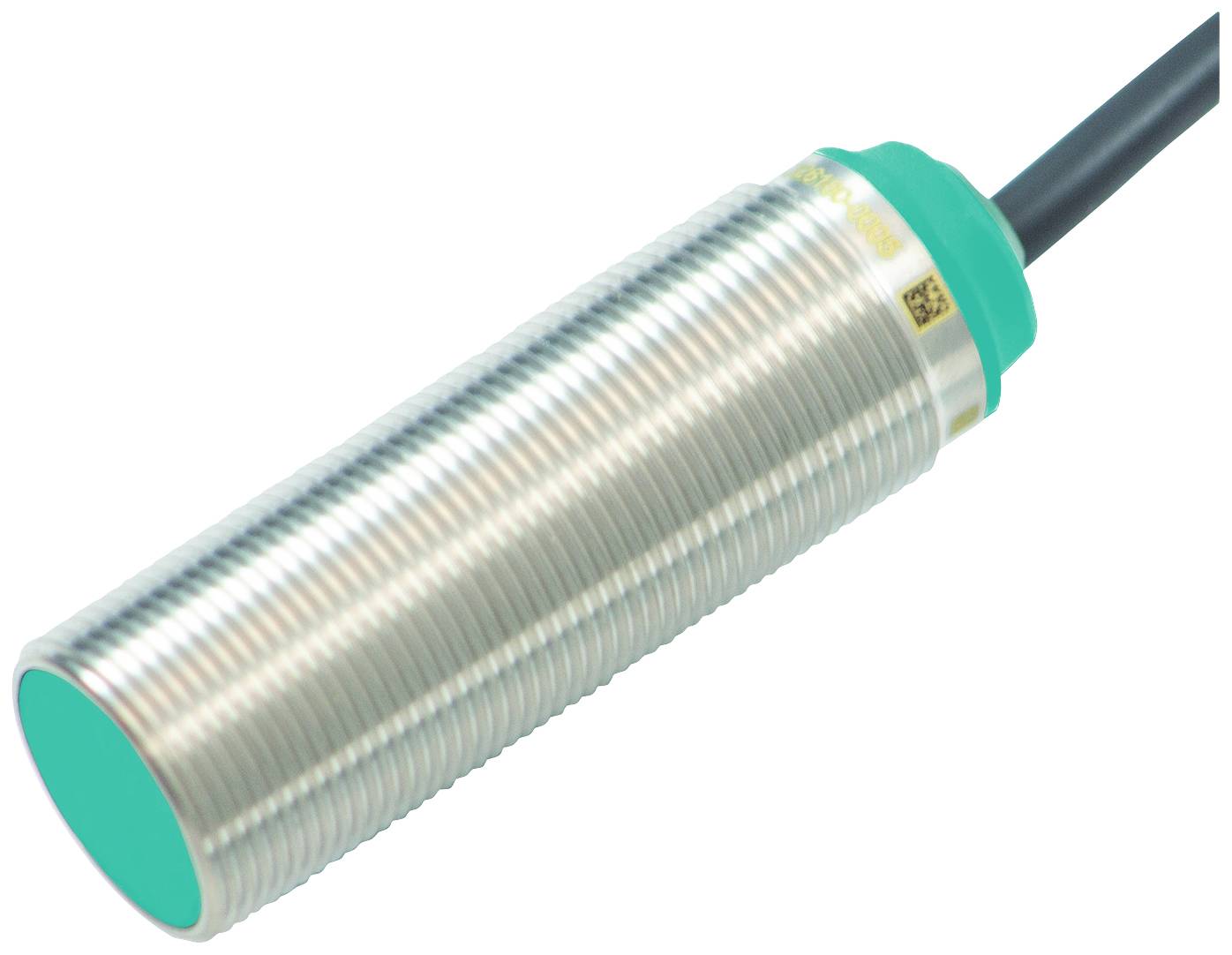

Pepperl+Fuchs Sensor Inductive NBB5-18GM50-E2 326161-0105 M18 shielded PNP (Ø x L) 18 mm x 56 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor
Max. operating voltage
36 V
Contact type
1 maker
Switching distance (max.)
5 mm
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Sensor
- Type
NBB5-18GM50-E2
- Min. operating voltage
5 V
- Max. operating voltage
36 V
- Operating voltage
5 - 36 V
- Contact type
1 maker
- Switching distance (max.)
5 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Installation type
shielded
- Size
M18
- Connector
Cable
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP68
- Length
56 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 56 mm
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
1950 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627197 Pepperl+Fuchs Sensor Inductive NBB5-18GM50-E2 326161-0105 M18 shielded PNP (Ø x L) 18 mm x 56 mm Piece
User & Safety Instructions
User & Safety Instructions 2627197 Pepperl+Fuchs Sensor Inductive NBB5-18GM50-E2 326161-0105 M18 shielded PNP (Ø x L) 18 mm x 56 mm Piece
Description
Switching distance: 5 mm, installation: Flush, switching function: Normally open contact (NO), output type: PNP, operating voltage: 5 ... 36 V, operating current: 0 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: PNPSwitching distance: 5 mmInstallation: FlushOutput polarity: DCSafe switching distance: 0 ... 4.05 mmActuator: Structural steel, e.g. 1.0037, S235JR (formerly St37-2) | 18 mm x 18 mm x 1 mmReduction factor rAl: 0.35Reduction factor rCu: 0.29Reduction factor rV2A (1.4301) : 0.73Reduction factor rMS: 0.44Output type: 3-wireCharacteristicsOperating voltage 5 ... 36 VSwitching frequency: 0 ... 1950 HzHysteresis: type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop: ≤ 1 VOperating current: 0 ... 200 mAResidual current: Max. 20 µANo-load current ≤ 10 mAStandby delay: ≤ 10 msSwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 1721 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%ComplianceLAB COMPLIANCE: VDMA 24364-C1/T100°C-W.Compliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012Approvals and certificatesEAC COMPLIANCE: TR CU 020/2011Protection class: II Rated insulation voltage 36 V. Rated surge voltage resistance 500 V.UL recognized: CULus Listed, General Purpose, Class 2 power sourceCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -40 ... 85 °C (-40 ... 185 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: CableHousing material: Brass , white bronze coatedFace: PBT, greenProtection class: IP68Cable Wire-end sleeves: Yes Cable diameter 4.3 mm ± 0.15 mm Bending radius > : 10 x cable diameter Material: PVC. Colour, black Core number: 3 Wire cross-section 0.34 mm2 Length: 2 mWeight 112 gTightening torque: 0 ... 30 NmGeneral informationScope of delivery: Supplied with 2 nuts with locking teeth
