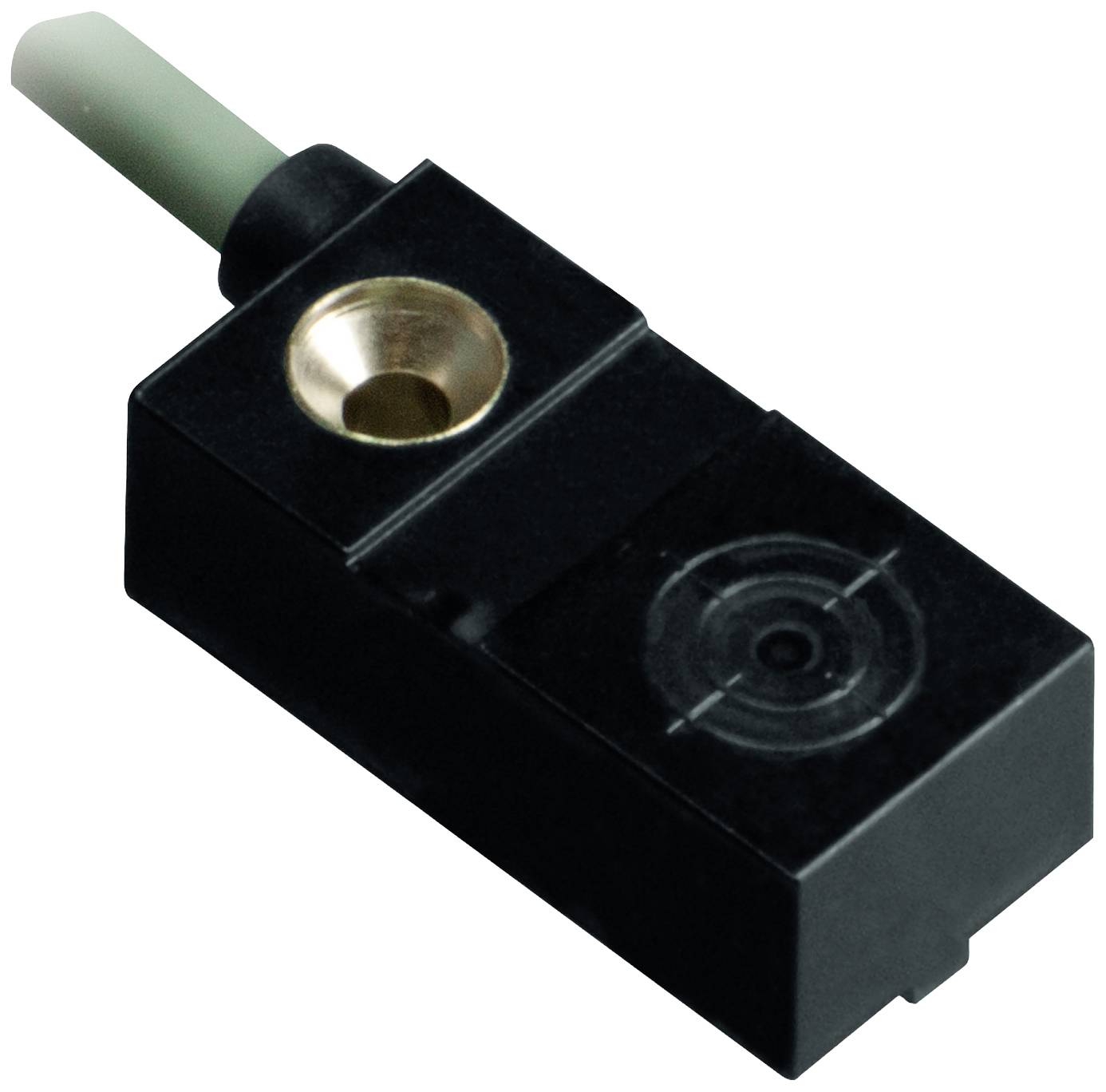

Pepperl+Fuchs Sensor Inductive NBN6-F29B-E3 226469 non-shielded
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V DC
Switching distance (max.)
6 mm
Model
Inductive
Connector
Cable
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NBN6-F29B-E3
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Switching distance (max.)
6 mm
- Enclosure material
PC
- Model
Inductive
- Installation type
non-shielded
- Connector
Cable
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
500 Hz
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2627999 Pepperl+Fuchs Sensor Inductive NBN6-F29B-E3 226469 non-shielded
User & Safety Instructions
User & Safety Instructions 2627999 Pepperl+Fuchs Sensor Inductive NBN6-F29B-E3 226469 non-shielded
Description
Switching distance: 6 mm, installation: Non-flush mountable, switching element function: PNP NC contact, operating voltage: 10 ... 30 V DC, operating current: 0 ... 100 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching distance: 6 mmInstallation: Non-flush mountableOutput polarity: DCSafe switching distance: 0 ... 4.86 mmReduction factor forAl: 0.4Reduction factor rCu: 0.3Reduction factor rV2A (1.4301) : 0.7Output type: 3-wireCharacteristicsOperating voltage 10 ... 30 V DCSwitching frequency: 0 ... 500 HzHysteresis: type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop ≤ 3 VOperating current: 0 ... 100 mAResidual current: 0 ... 0.5 mA type. 0.1 µA at 25 °C.No-load current ≤ 10 mAStandby delay: ≤ 5 msSwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 1340 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012Approvals and certificatesUL recognized: CULus Listed, General Purpose, Class 2 power sourceCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Mechanical data:Connection type: PVC cable, 2 mWire cross-section 0.14 mm2Housing material: PCProtection class IP67
