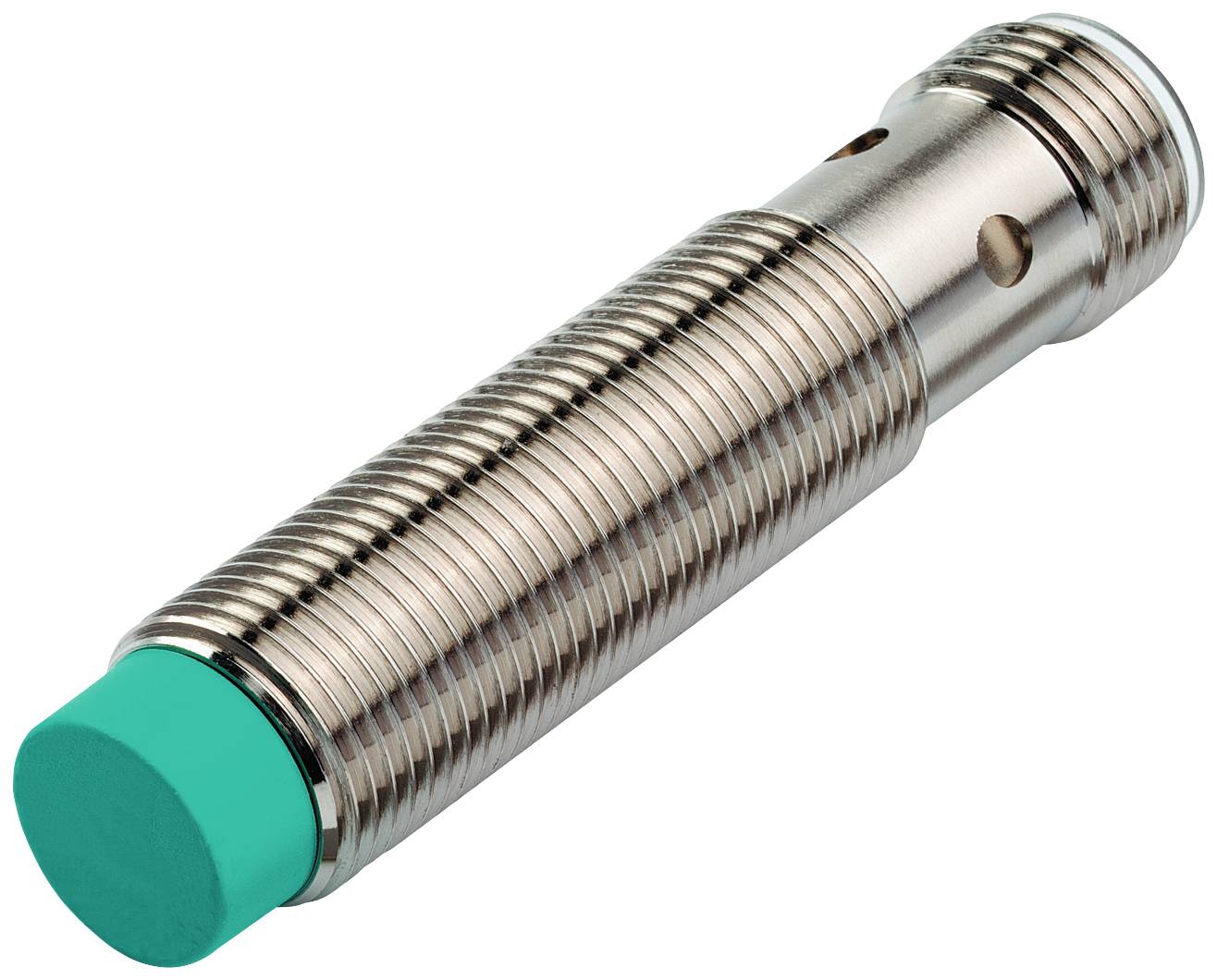

Pepperl+Fuchs Sensor Inductive NBN7-12GM50-E1-V1-M 240161 M12 non-shielded NPN
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
60 V
Contact type
1 breaker
Switching distance (max.)
7 mm
Outputs
NPN
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NBN7-12GM50-E1-V1-M
- Min. operating voltage
5 V
- Max. operating voltage
60 V
- Operating voltage
5 - 60 V
- Contact type
1 breaker
- Switching distance (max.)
7 mm
- Outputs
NPN
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
non-shielded
- Size
M12
- Connector
M12 plug (3-pin)
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP68
IP69K
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
1500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627205 Pepperl+Fuchs Sensor Inductive NBN7-12GM50-E1-V1-M 240161 M12 non-shielded NPN
User & Safety Instructions
User & Safety Instructions 2627205 Pepperl+Fuchs Sensor Inductive NBN7-12GM50-E1-V1-M 240161 M12 non-shielded NPN
Description
Switching distance: 7 mm, installation: Non-flush, switching function: NC contact (NC), output type: NPN, operating voltage: 5 ... 60 V, operating current: 0 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: NC contact (NC)Output type: NPNSwitching distance: 7 mmInstallation: Non-flushOutput polarity: DCSafe switching distance: 0 ... 5.67 mmReduction factor rAl: 0.5Reduction factor rCu: 0.35Reduction factor rV2A (1.4301) : 0.7Reduction factor rMS: 0.5Output type: 3-wireCharacteristicsOperating voltage 5 ... 60 VSwitching frequency: 0 ... 1500 HzHysteresis: type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousInduction protection: YesSwitch-on pulse cut-off: YesVoltage drop: ≤ 2 VRated insulation voltage 60 V.Operating current: 0 ... 200 mAResidual current: 0 ... 0.5 mA type. 0.1 µA at 25 °C.No-load current ≤ 7 mAStandby delay: ≤ 200 msSwitching status display: Multi-hole LED, yellowFunctional safety characteristicsMTTFd: 1183 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesUL recognized: CULus Listed, General Purpose, Class 2 power sourceCSA approved: CCSAus Listed, General Purpose, Class 2 power sourceCCC approval: Certified by China Compulsory Certification (CCC)E1 type approval: 10R-04Ambient conditionsAmbient temperature: -40 ... 85 °C (-40 ... 185 °F) | Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: Device plug M12 x 1 , 3-pinHousing material: Nickel-plated brassFace: PBTProtection class IP68/IP69KWeight 19 g
