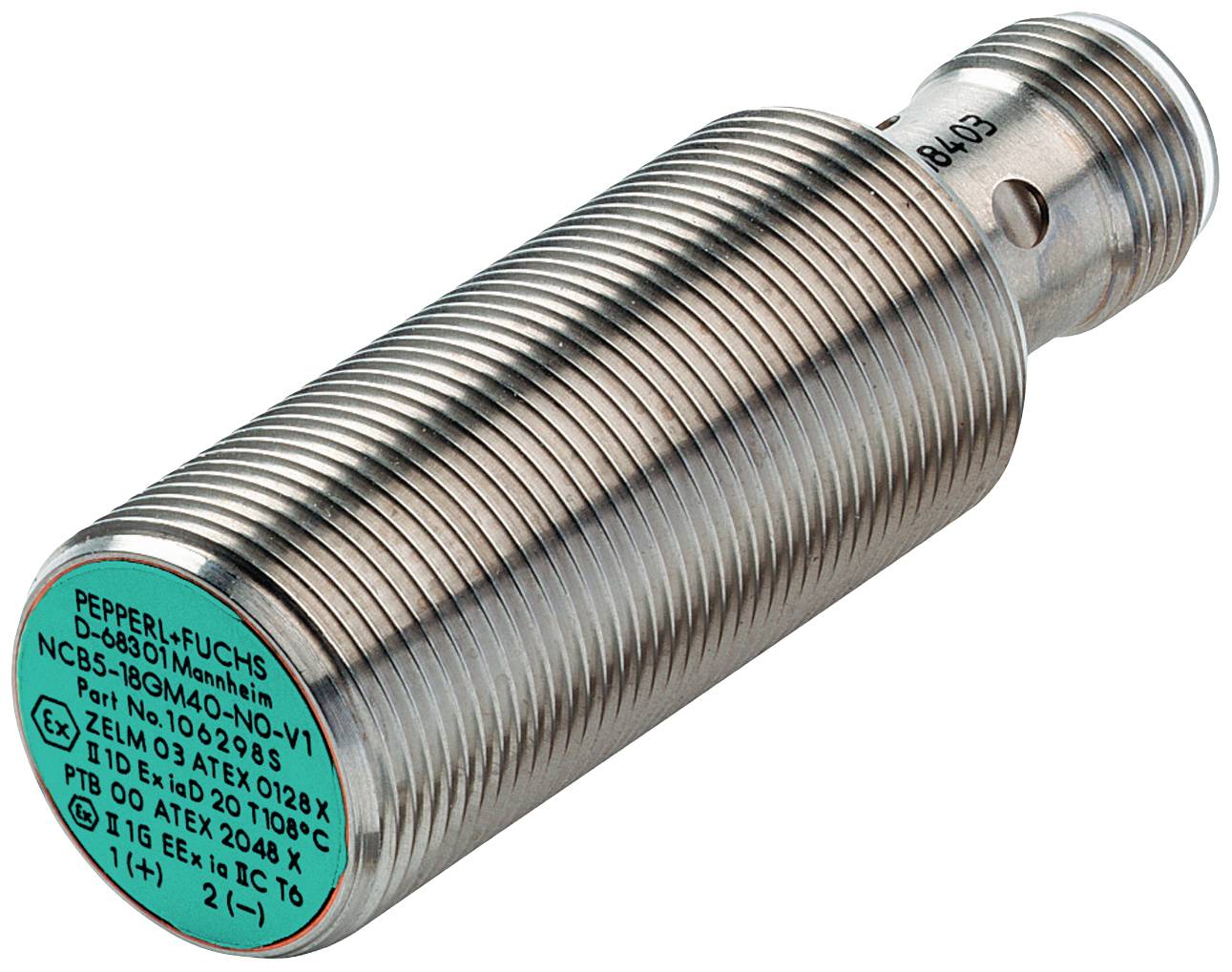

Pepperl+Fuchs Sensor Inductive NCB5-18GM40-N0-V1 70133057 M18 shielded NAMUR (Ø x L) 18 mm x 55 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
8.2 V
Contact type
1 breaker
Switching distance (max.)
5 mm
Outputs
NAMUR
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NCB5-18GM40-N0-V1
- Max. operating voltage
8.2 V
- Operating voltage
8.2 V (max)
- Contact type
1 breaker
- Switching distance (max.)
5 mm
- Outputs
NAMUR
- Enclosure material
Stainless steel V2A
- Model
Inductive
- Material properties
rust-proof
- Installation type
shielded
- Size
M18
- Connector
Plug
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
100 °C
IP66
IP67
- Length
55 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 55 mm
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
400 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628137 Pepperl+Fuchs Sensor Inductive NCB5-18GM40-N0-V1 70133057 M18 shielded NAMUR (Ø x L) 18 mm x 55 mm
User & Safety Instructions
User & Safety Instructions 2628137 Pepperl+Fuchs Sensor Inductive NCB5-18GM40-N0-V1 70133057 M18 shielded NAMUR (Ø x L) 18 mm x 55 mm
Description
Connection: 2-wireApplication-specific properties: Extended temperature rangeOutput type: NAMURDesign: CylindricalInstallation: FlushElectrical connection type: Device plug M12Detection principle: InductiveFunction: Inductive sensorsHousing design: CylindricalHousing material: Stainless steel (V2A)Housing material: Stainless steelDevice protection level: Da (zone 20)Device protection level: GA (zone 0)Equipment protection level: GB (zone 1)Equipment protection level: MB (mining)Max. Range: 5 mm 10 mmSwitching frequency 500 HzSwitching function: NC contact (NC)IP66 protection ratingProtection class IP67Safety integrity level: SIL 2Safety function: SIL 2Signal type: NAMURVoltage: DCMaximum ambient temperature +100 °C.Minimum ambient temperature -25 °C.Supply voltage: DCApprovals: ATEXApprovals: CCCEx/NEPSIApprovals: EACApprovals: IECExApprovals: UL-hazardous locationApprovals: UL-ordinary locationCylindrical design: Threaded sleeve M18
