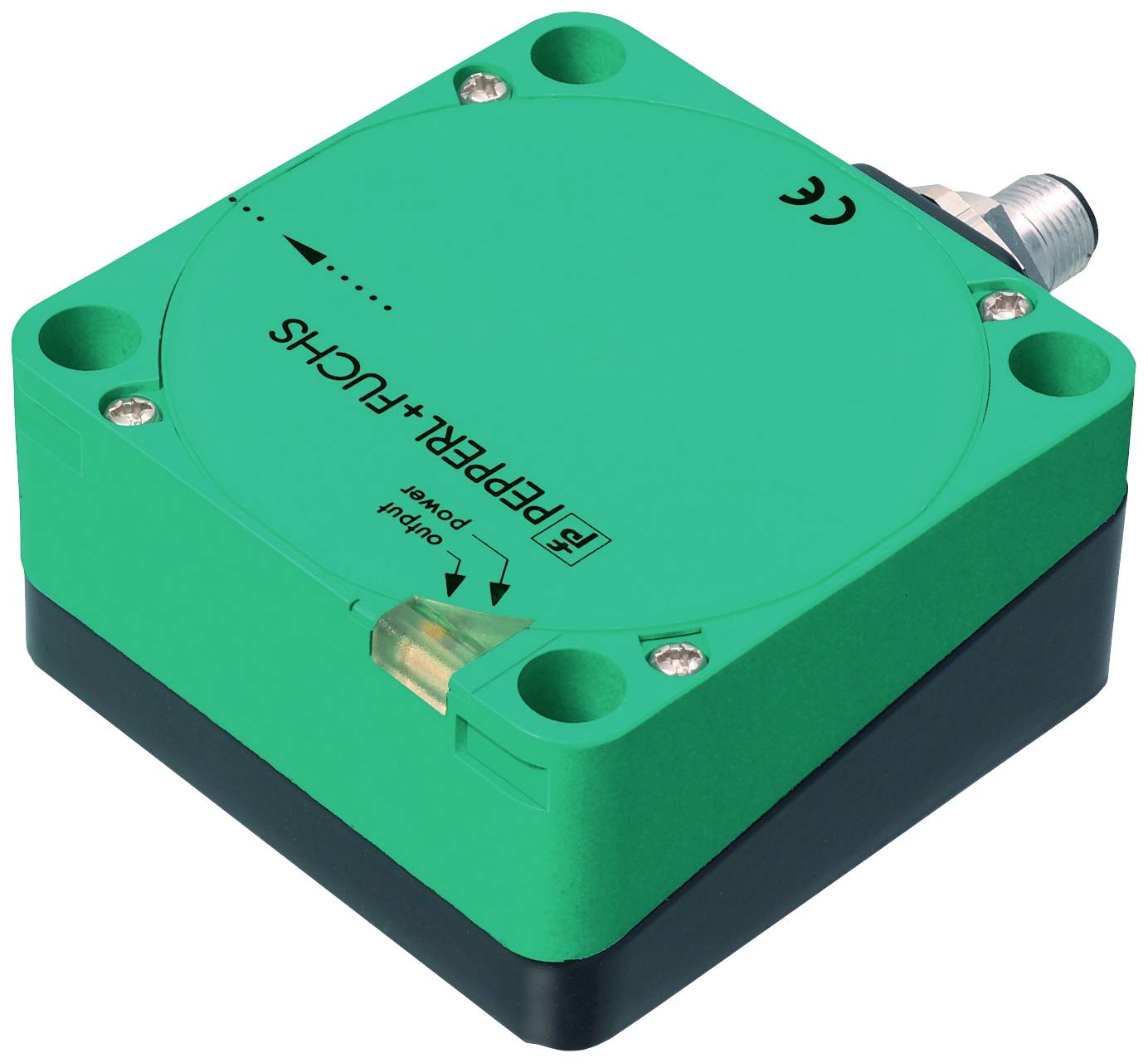

Pepperl+Fuchs Sensor Inductive NCB50-FP-A2-P4-V1 908489 shielded PNP
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
60 V DC
Contact type
Antivalent
Switching distance (max.)
50 mm
Outputs
PNP
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NCB50-FP-A2-P4-V1
- Min. operating voltage
10 V DC
- Max. operating voltage
60 V DC
- Operating voltage
10 - 60 V DC
- Contact type
Antivalent
- Switching distance (max.)
50 mm
- Outputs
PNP
- Model
Inductive
- Installation type
shielded
- Connector
M12 plug (4-pin)
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP68
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
80 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627772 Pepperl+Fuchs Sensor Inductive NCB50-FP-A2-P4-V1 908489 shielded PNP
User & Safety Instructions
User & Safety Instructions 2627772 Pepperl+Fuchs Sensor Inductive NCB50-FP-A2-P4-V1 908489 shielded PNP
Description
Switching distance: 50 mm, installation: Flush, switching function: Antivalent, output type: PNP, operating voltage: 10 ... 60 V DC, operating current: 0 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: AntivalentOutput type: PNPSwitching distance: 50 mmInstallation: FlushOutput polarity: DCSafe switching distance: 0 ... 40.5 mmReduction factor rAl: 0.38Reduction factor rCu: 0.35Reduction factor rV2A (1.4301) : 0.83Output type: 4-wireCharacteristicsOperating voltage 10 ... 60 V DCSwitching frequency: 0 ... 80 HzHysteresis: type. 3%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop ≤ 3 VOperating current: 0 ... 200 mAResidual current: 0 ... 0.5 mANo-load current ≤ 20 mAStandby delay: ≤ 300 msOperating voltage display: LED, greenSwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 680 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%ComplianceStandards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesUL approval: CULus Listed, General PurposeCSA approved: CCSAus Listed, General PurposeCCC approval: Certified by China Compulsory Certification (CCC)Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Storage temperature: -25 ... 85 °C (-13 ... 185 °F)Mechanical data:Connection type: Device plug M12 x 1 , 4-pinHousing material: PBT/metalFace: PBTLower part of housing: MetalProtection class: IP68
