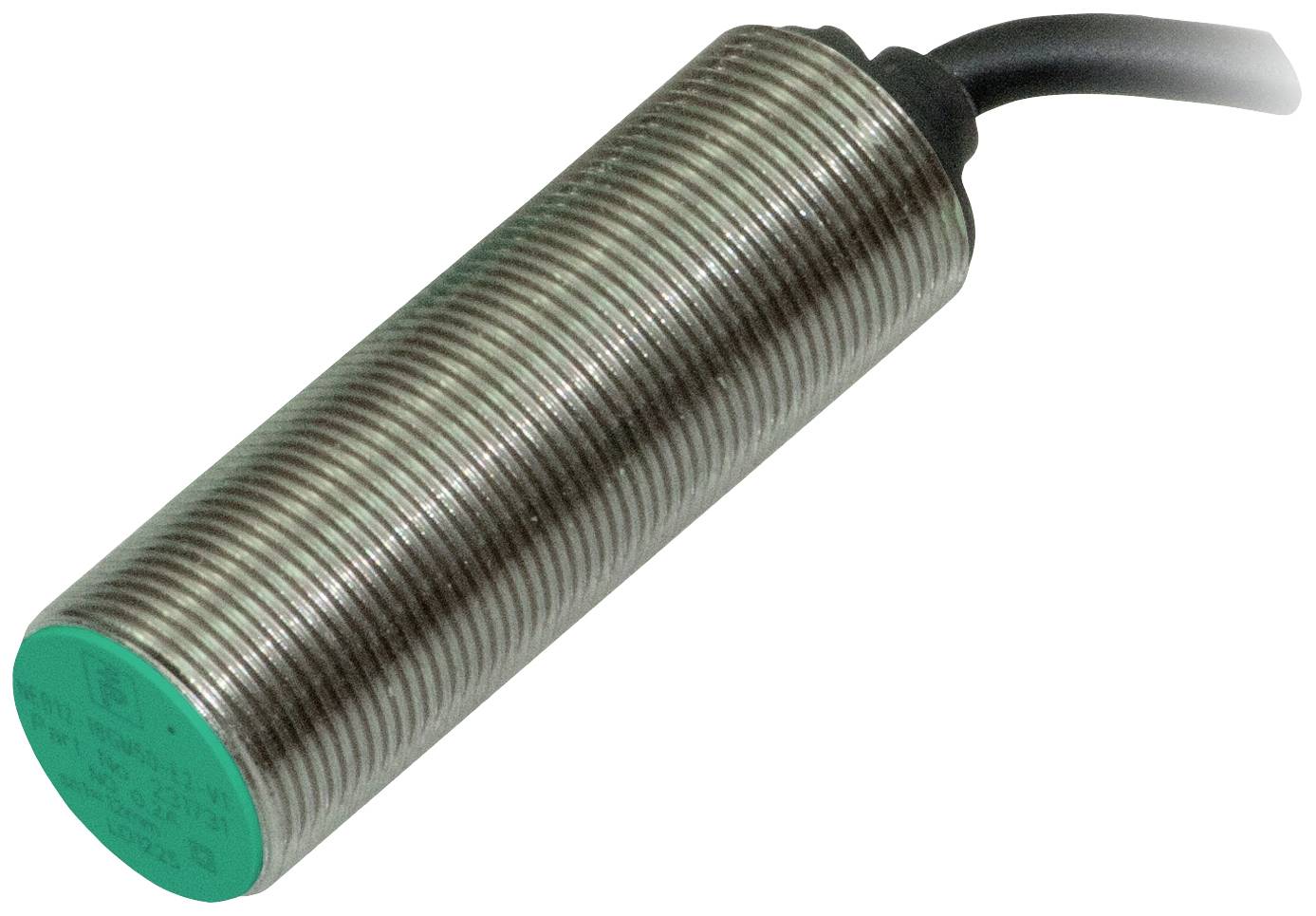

Pepperl+Fuchs Sensor Inductive NEB12-18GM50-E2-5M 231733 M18 quasi-shielded PNP
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V
Contact type
1 maker
Switching distance (max.)
12 mm
Outputs
PNP
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NEB12-18GM50-E2-5M
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Contact type
1 maker
- Switching distance (max.)
12 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
quasi-shielded
- Size
M18
- Connector
Cable
- Cable length
5 m
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
500 Hz
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2628443 Pepperl+Fuchs Sensor Inductive NEB12-18GM50-E2-5M 231733 M18 quasi-shielded PNP
User & Safety Instructions
User & Safety Instructions 2628443 Pepperl+Fuchs Sensor Inductive NEB12-18GM50-E2-5M 231733 M18 quasi-shielded PNP
Description
Switching distance: 12 mm, installation: Quasi-flush, switching function: Closer (NO), output type: PNP, operating voltage: 10 ... 30 V, operating current: 0 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: PNPSwitching distance: 12 mmInstallation: Quasi-flushOutput polarity: DCSafe switching distance: 0 ... 9.72 mmActuator: Structural steel, e.g. 1.0037, S235JR (formerly St37-2) | 36 mm x 36 mm x 1 mmReduction factor rAl: 0.26Reduction factor rCu: 0.2Reduction factor rV2A (1.4301) : 0.63Reduction factor rMS: 0.33Output type: 3-wireCharacteristicsInstallation conditions A: In steel 1.0037 (St37): 4 mm B: 14 mm C 36 mm F: 36 mmOperating voltage 10 ... 30 VSwitching frequency: 0 ... 500 HzHysteresis: 0.12 ... 1.8 mmReverse polarity protection: YesShort-circuit protection: IsochronousOverload resistance: YesWire break safety: YesInduction protection: YesSwitch-on pulse cut-off: YesRipple: 10%Voltage drop: ≤ 2 VRepeat accuracy 0.6 mmOperating current: 0 ... 200 mAResidual current ≤ 10 µANo-load current ≤ 11 mAStandby delay: ≤ 50 msSwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 2650 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesEAC COMPLIANCE: TR CU 020/2011UL approval: CULus Listed, General PurposeCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 85 °C (-13 ... 185 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: PUR cable, 5 mWire cross-section 0.34 mm2Housing material: Nickel-plated brassFace: PBTProtection class IP67Weight 100 g
