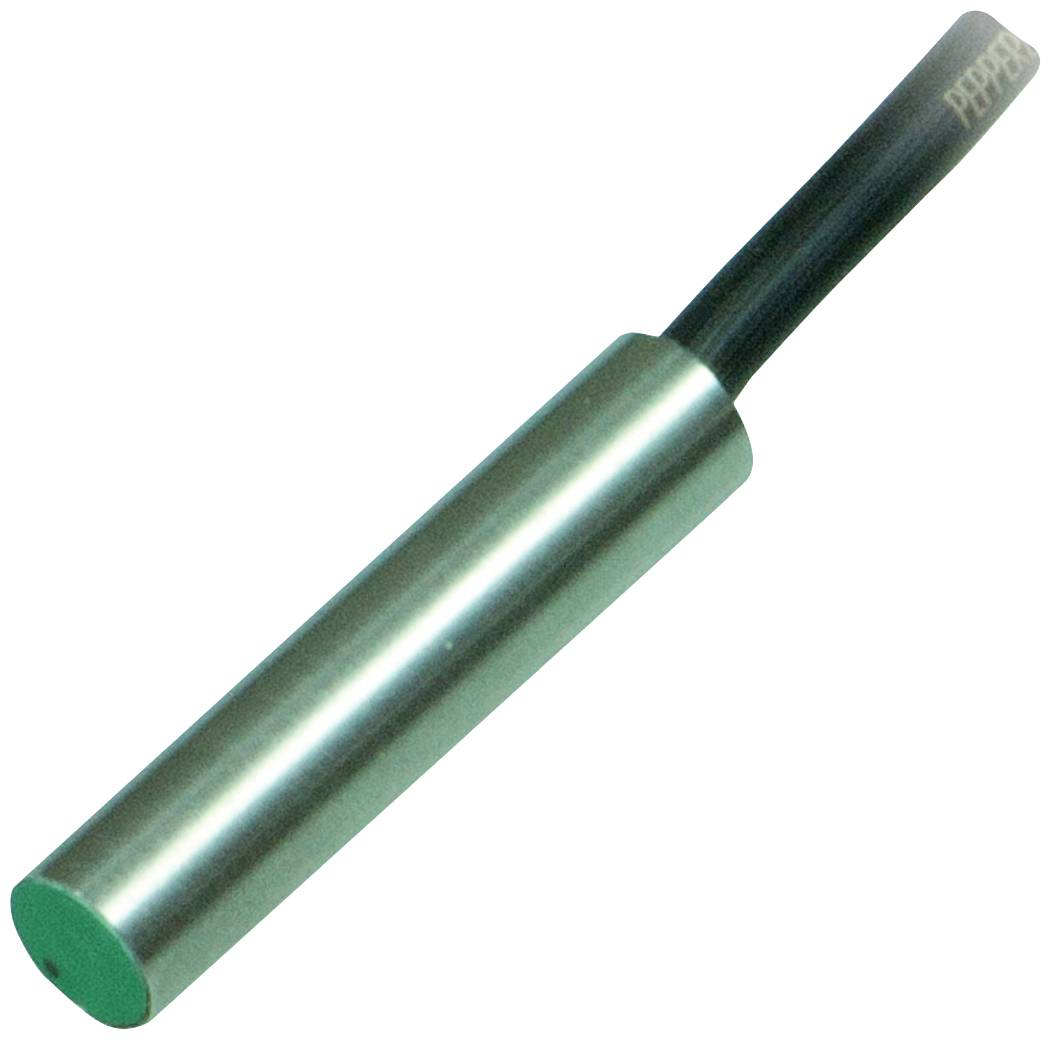

Pepperl+Fuchs Sensor Inductive NEB3-6,5M40-E0-PUR 304615-0142 quasi-shielded NPN
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V
Contact type
1 maker
Switching distance (max.)
3 mm
Outputs
NPN
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NEB3-6,5M40-E0-PUR
- Min. operating voltage
5 V
- Max. operating voltage
30 V
- Operating voltage
5 - 30 V
- Contact type
1 maker
- Switching distance (max.)
3 mm
- Outputs
NPN
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
quasi-shielded
- Connector
Cable
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-40 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
3500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627847 Pepperl+Fuchs Sensor Inductive NEB3-6,5M40-E0-PUR 304615-0142 quasi-shielded NPN
User & Safety Instructions
User & Safety Instructions 2627847 Pepperl+Fuchs Sensor Inductive NEB3-6,5M40-E0-PUR 304615-0142 quasi-shielded NPN
