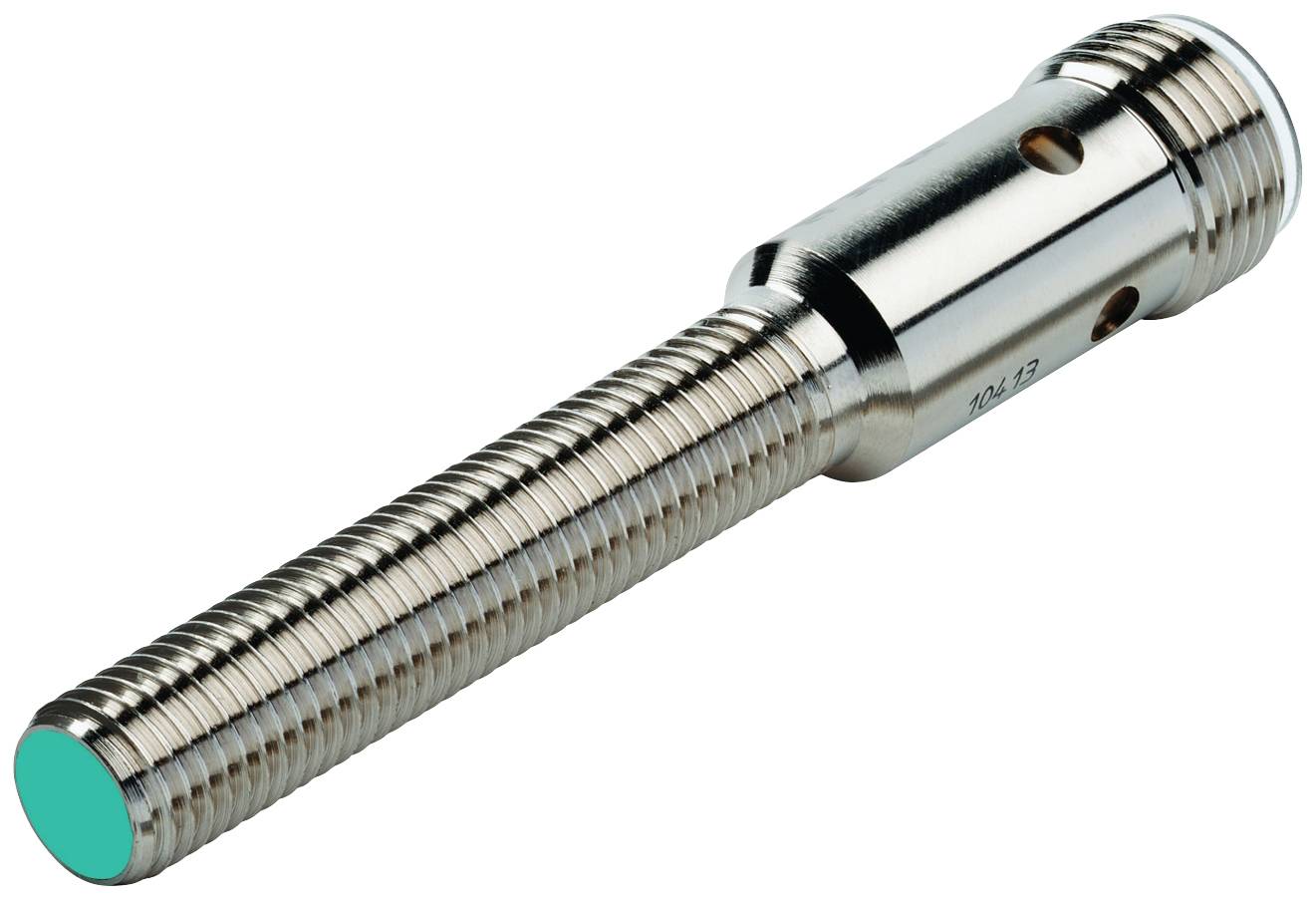

Pepperl+Fuchs Sensor Inductive NEB3-8GM40-E0-V1 304615-0157 shielded NPN
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V
Contact type
1 maker
Switching distance (max.)
3 mm
Outputs
NPN
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NEB3-8GM40-E0-V1
- Min. operating voltage
5 V
- Max. operating voltage
30 V
- Operating voltage
5 - 30 V
- Contact type
1 maker
- Switching distance (max.)
3 mm
- Outputs
NPN
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
shielded
- Connector
M12 plug (4-pin)
- Min. temperature
-40 °C
- Max. temperature
85 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
3500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627960 Pepperl+Fuchs Sensor Inductive NEB3-8GM40-E0-V1 304615-0157 shielded NPN
User & Safety Instructions
User & Safety Instructions 2627960 Pepperl+Fuchs Sensor Inductive NEB3-8GM40-E0-V1 304615-0157 shielded NPN
Description
Switching distance: 3 mm, installation: Flush, switching function: Normally open contact (NO), output type: NPN, operating voltage: 5 ... 30 V, operating current: 0 ... 100 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: NPNSwitching distance: 3 mmInstallation: FlushOutput polarity: DCSafe switching distance: 0 ... 2.43 mmActuator: Structural steel, e.g. 1.0037, S235JR (formerly St37-2) | 9 mm x 9 mm x 1 mmReduction factor rAl: 0.5Reduction factor rCu: 0.4Reduction factor rV2A (1.4301) : 0.75Reduction factor rMS: 0.5Output type: 3-wireCharacteristicsOperating voltage 5 ... 30 VSwitching frequency: 0 ... 3500 HzHysteresis: type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop: ≤ 1.5 VOperating current: 0 ... 100 mAResidual current: 0 ... 0.2 mANo-load current ≤ 10 mAStandby delay: ≤ 100 msSwitching status display: Multi-hole LED, yellowFunctional safety characteristicsMTTFd: 960 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012Approvals and certificatesUL recognized: CULus Listed, General Purpose, Class 2 power sourceCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -40 ... 85 °C (-40 ... 185 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: Device plug M12 x 1 , 4-pinHousing material: Nickel-plated brassFace: LCPProtection class IP67General informationSupplied with 2 hex nuts
