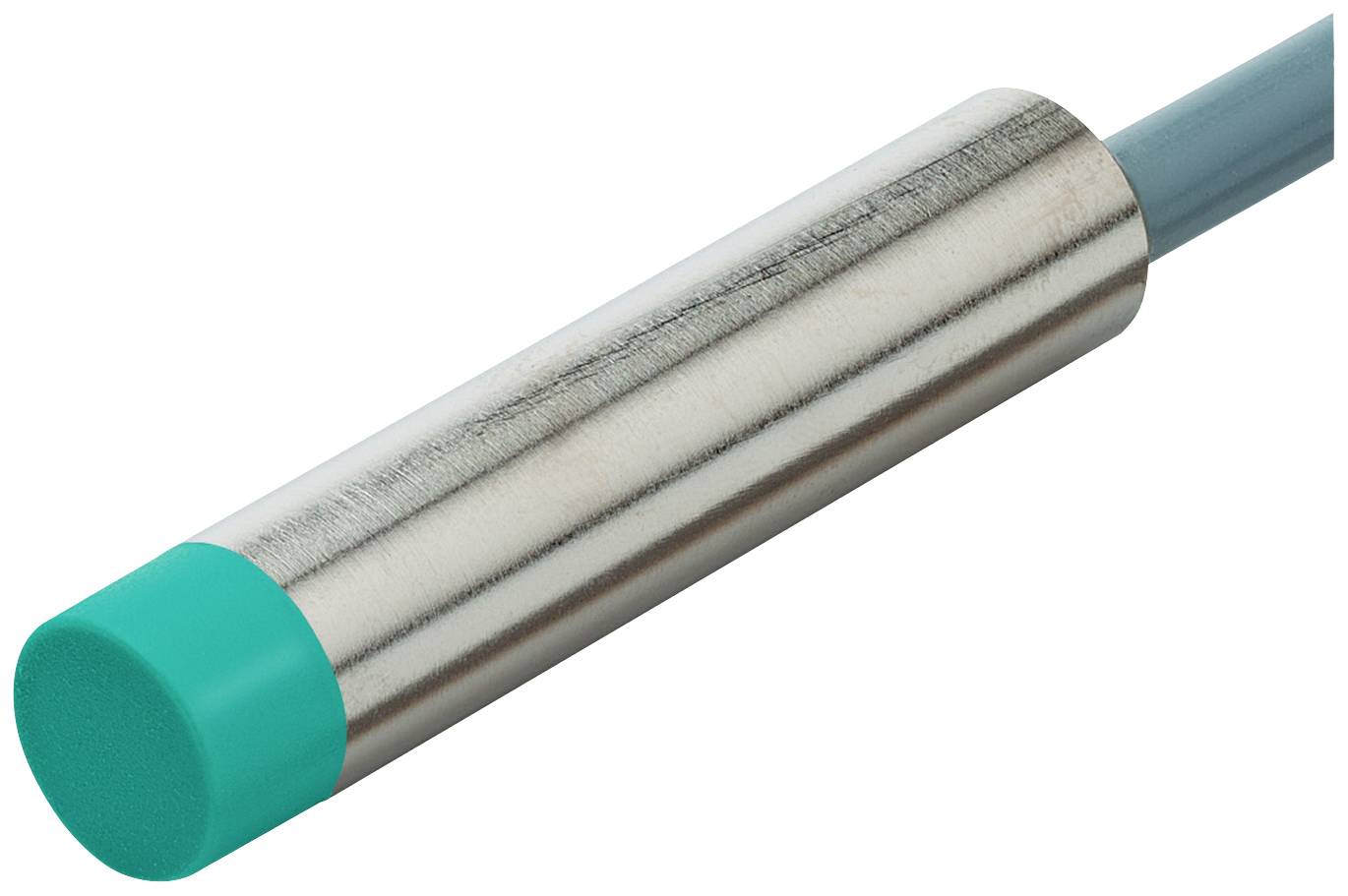

Pepperl+Fuchs Sensor Inductive NEN6-6,5M40-E3-PUR 304615-0174 non-shielded PNP (Ø) 3.3 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V
Contact type
1 breaker
Switching distance (max.)
6 mm
Outputs
PNP
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NEN6-6,5M40-E3-PUR
- Min. operating voltage
5 V
- Max. operating voltage
30 V
- Operating voltage
5 - 30 V
- Contact type
1 breaker
- Switching distance (max.)
6 mm
- Outputs
PNP
- Enclosure material
Brass
- Model
Inductive
- Material properties
nickel plated
- Installation type
non-shielded
- Connector
Cable
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP67
- (Ø)
3.3 mm
- Dim
(Ø) 3.3 mm
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
1500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627973 Pepperl+Fuchs Sensor Inductive NEN6-6,5M40-E3-PUR 304615-0174 non-shielded PNP (Ø) 3.3 mm
User & Safety Instructions
User & Safety Instructions 2627973 Pepperl+Fuchs Sensor Inductive NEN6-6,5M40-E3-PUR 304615-0174 non-shielded PNP (Ø) 3.3 mm
Description
Switching distance: 6 mm, installation: Non-flush, switching function: NC contact (NC), output type: PNP, operating voltage: 5 ... 30 V, operating current: 0 ... 100 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: NC contact (NC)Output type: PNPSwitching distance: 6 mmInstallation: Non-flushOutput polarity: DCSafe switching distance: 0 ... 4.86 mmActuator: Structural steel, e.g. 1.0037, S235JR (formerly St37-2) | 18 mm x 18 mm x 1 mmReduction factor rAl: 0.55Reduction factor rCu: 0.5Reduction factor rV2A (1.4301) : 0.75Reduction factor rMS: 0.55Output type: 3-wireCharacteristicsOperating voltage 5 ... 30 VSwitching frequency: 0 ... 1500 HzHysteresis: type. 5%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop: ≤ 1.5 VOperating current: 0 ... 100 mAResidual current: 0 ... 0.2 mANo-load current ≤ 10 mAStandby delay: ≤ 100 msSwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 960 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012Approvals and certificatesUL approval: CULus Listed, General PurposeCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 85 °C (-13 ... 185 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: PUR cable, 2 mWire cross-section 0.14 mm2Housing material: Nickel-plated brassFace: LCPProtection class IP67Cable Cable diameter 3.3 mm ± 0.15 mm Bending radius > : 10 x cable diameter
