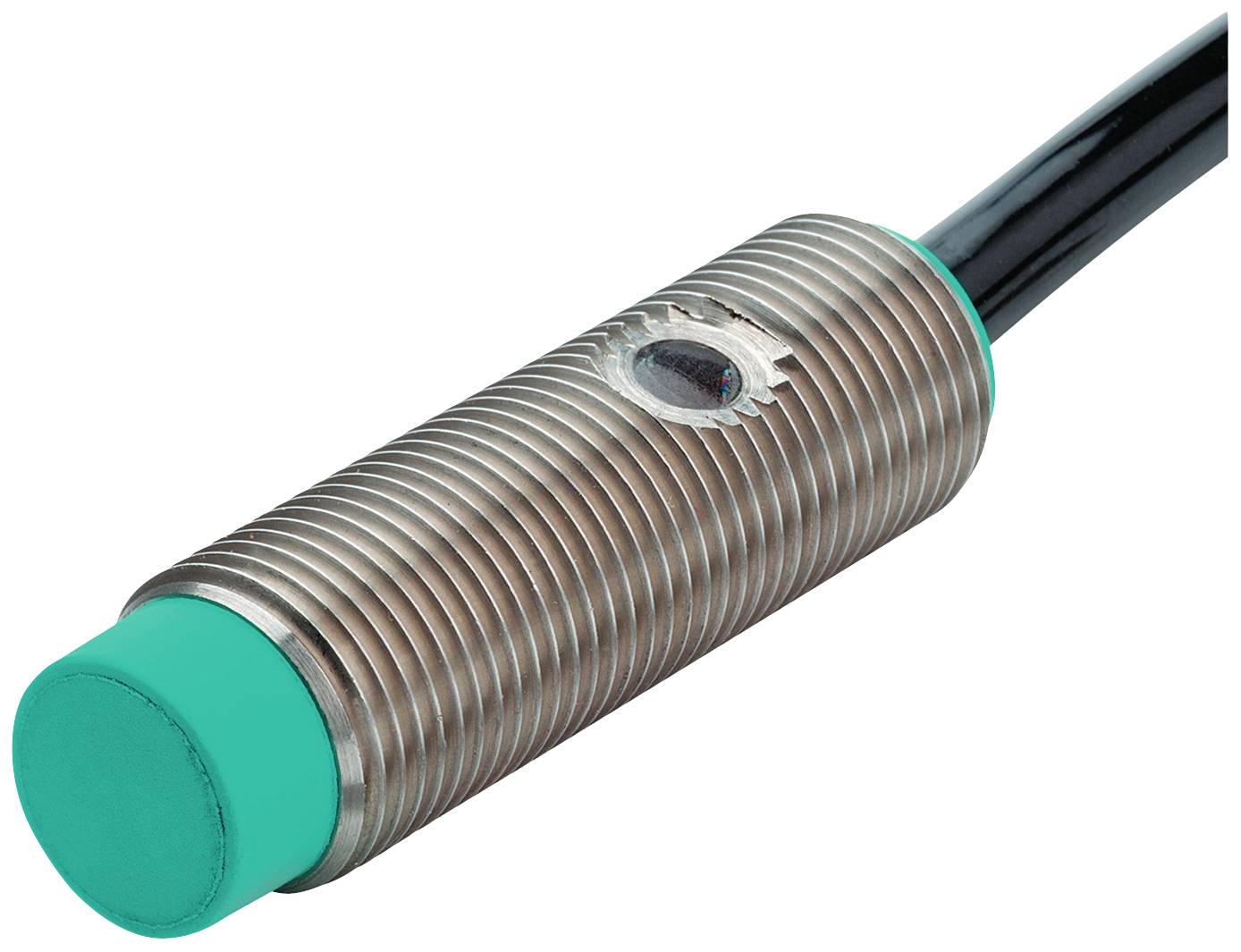

Image similar
Pepperl+Fuchs Sensor Inductive NJ4-12GM40-E3-10M 282953 non-shielded PNP
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
60 V
Contact type
1 breaker
Switching distance (max.)
4 mm
Outputs
PNP
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NJ4-12GM40-E3-10M
- Min. operating voltage
10 V
- Max. operating voltage
60 V
- Operating voltage
10 - 60 V
- Contact type
1 breaker
- Switching distance (max.)
4 mm
- Outputs
PNP
- Enclosure material
Stainless steel V2A
- Model
Inductive
- Material properties
rust-proof
- Installation type
non-shielded
- Connector
Cable
- Cable length
10 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
2000 Hz
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2627908 Pepperl+Fuchs Sensor Inductive NJ4-12GM40-E3-10M 282953 non-shielded PNP
User & Safety Instructions
User & Safety Instructions 2627908 Pepperl+Fuchs Sensor Inductive NJ4-12GM40-E3-10M 282953 non-shielded PNP
Description
Switching distance: 4 mm, installation: Non-flush, switching function: NC contact (NC), output type: PNP, operating voltage: 10 ... 60 V, operating current: 0 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: NC contact (NC)Output type: PNPSwitching distance: 4 mmInstallation: Non-flushOutput polarity: DCSafe switching distance: 0 ... 3.24 mmReal switching distance: 3.6 ... 4.4 mm type.Reduction factor rAl: 0.37Reduction factor rCu: 0.36Reduction factor rV2A (1.4301) : 0.74Output type: 3-wireCharacteristicsOperating voltage 10 ... 60 VSwitching frequency: 0 ... 2000 HzHysteresis: 1 ... 10 type. 3%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop ≤ 3 VVoltage drop at IL. Voltage drop IL = 100mA, switching element on: 1.2 ... 2.5 VOperating current: 0 ... 200 mANo-load current ≤ 9 mAStandby delay: ≤ 20 msSwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 750 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesUL approval: CULus Listed, General PurposeCSA approved: CCSAus Listed, General PurposeAmbient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: PUR cable, 10 mWire cross-section 0.34 mm2Housing material: Stainless steel 1.4305 / AISI 303 (V2A)Face: PBTProtection class IP67General informationScope of delivery: Supplied with 2 nuts with locking teeth
