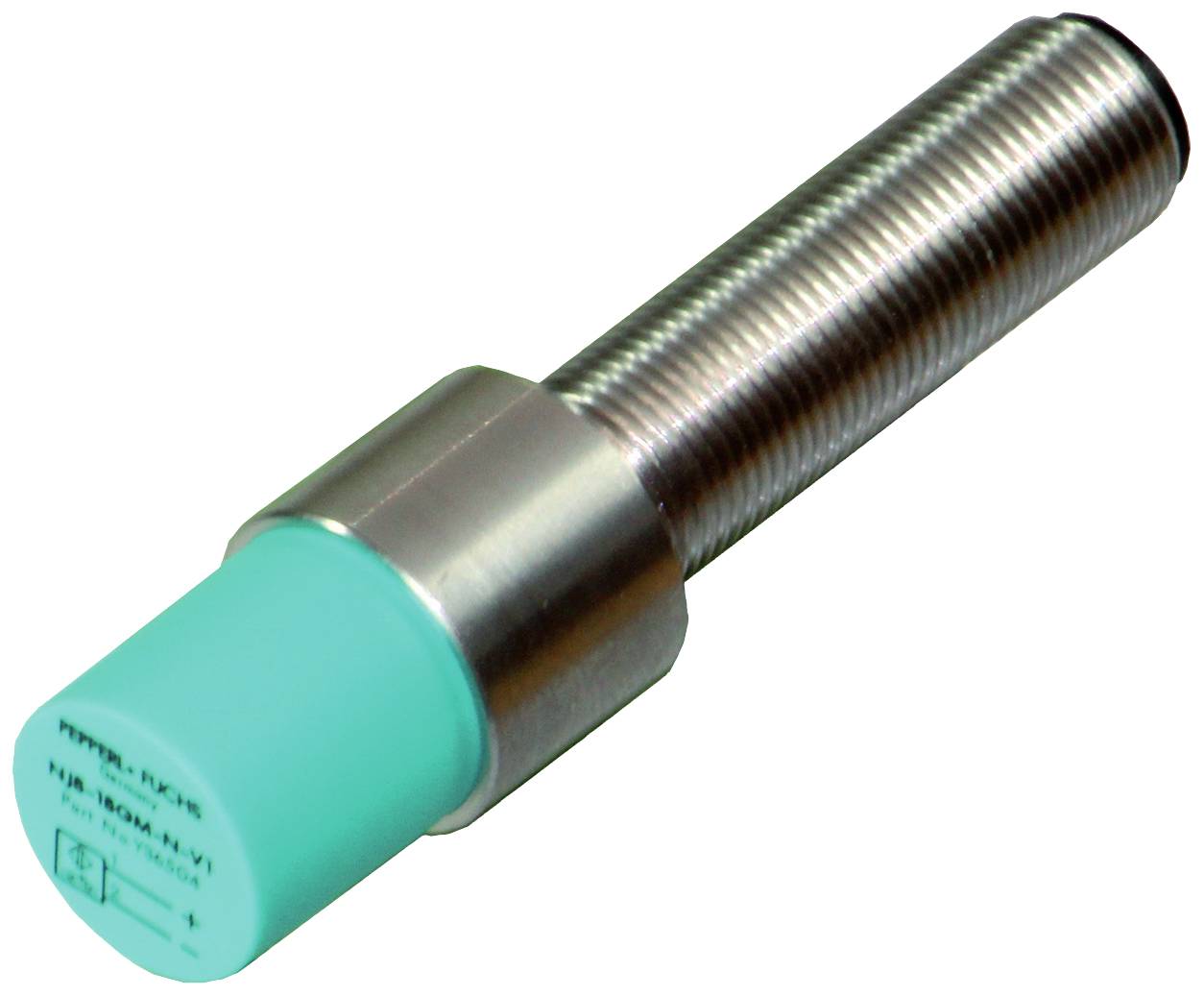

Pepperl+Fuchs Sensor Inductive NJ8-18GM-N-V1-Y36504 036504 M18 non-shielded NAMUR
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
25 V
Contact type
1 breaker
Switching distance (max.)
8 mm
Outputs
NAMUR
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NJ8-18GM-N-V1-Y36504
- Min. operating voltage
5 V
- Max. operating voltage
25 V
- Operating voltage
5 - 25 V
- Contact type
1 breaker
- Switching distance (max.)
8 mm
- Outputs
NAMUR
- Enclosure material
Stainless steel V2A
- Model
Inductive
- Material properties
rust-proof
- Installation type
non-shielded
- Size
M18
- Connector
M12 plug (4-pin)
- Min. temperature
-25 °C
- Max. temperature
100 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
200 Hz
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2627780 Pepperl+Fuchs Sensor Inductive NJ8-18GM-N-V1-Y36504 036504 M18 non-shielded NAMUR
User & Safety Instructions
User & Safety Instructions 2627780 Pepperl+Fuchs Sensor Inductive NJ8-18GM-N-V1-Y36504 036504 M18 non-shielded NAMUR
Description
Switching distance: 8 mm, installation: Non-flush, switching function: NC contact (NC), output type: NAMUR, operating voltage: 5 ... 25 V, nominal voltage 8.2 V (Ri approx. 1 co)
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: NC contact (NC)Output type: NAMURSwitching distance: 8 mmInstallation: Non-flushSafe switching distance: 0 ... 6.48 mmReduction factor forAl: 0.4Reduction factor rCu: 0.3Reduction factor rV2A (1.4301) : 0.85Output type: 2-wireCharacteristicsNominal voltage 8.2 V (Ri approx. 1 kΩ)Operating voltage 5 ... 25 VSwitching frequency: 0 ... 200 HzHysteresis: 3 %Current consumption Measuring plate not detected: Min. 3 mA Measuring plate recorded: ≤ 1 mACompliance with standards and directivesCompliance NAMUR: EN 60947-5-6:2000 | IEC 60947-5-6:1999 Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 100 °C (-13 ... 212 °F)Mechanical data:Connection type: Device plug M12 x 1 , 4-pinHousing material: Stainless steel 1.4305 / AISI 303 (V2A)Face: PBTProtection class IP67
