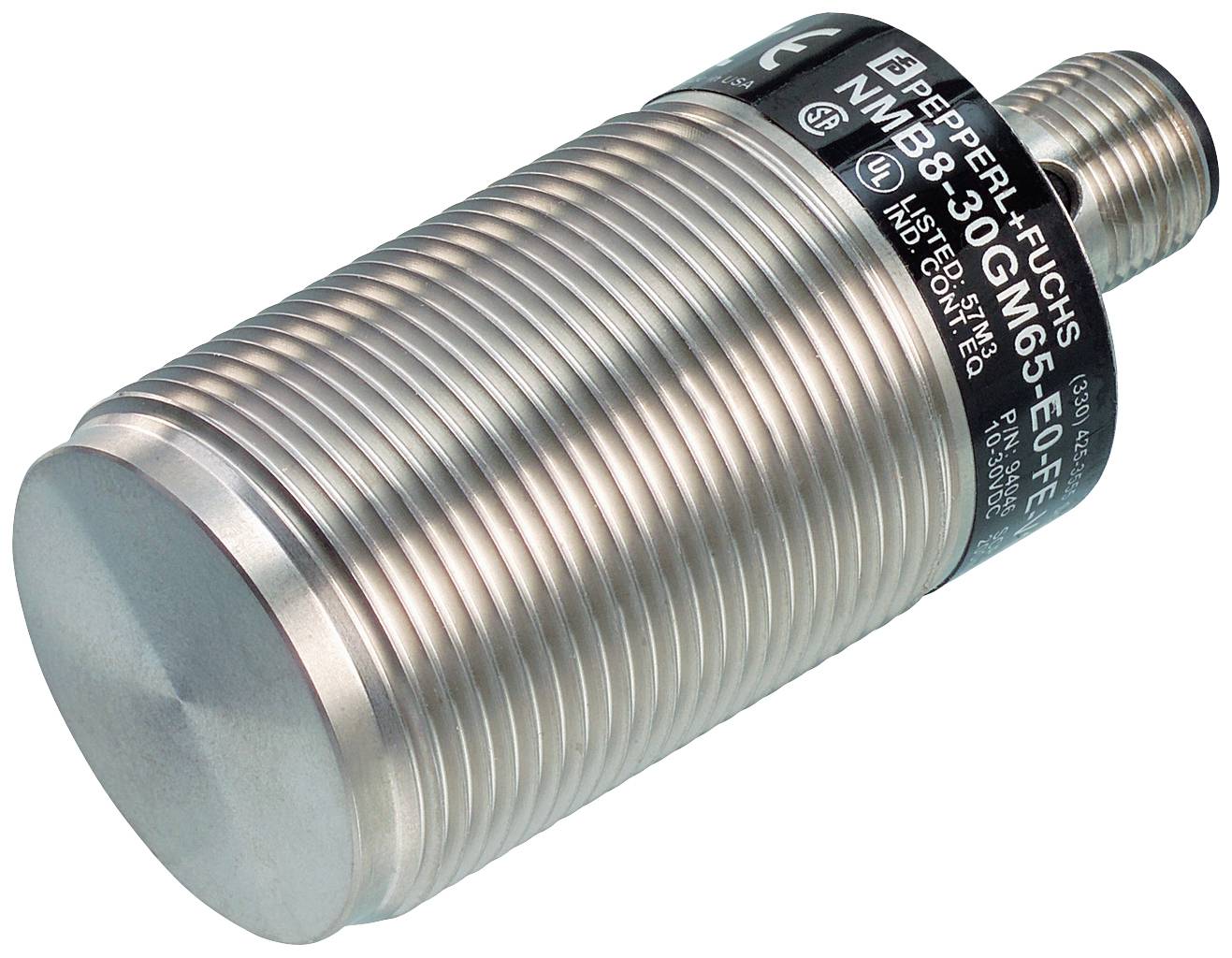

Pepperl+Fuchs Sensor Inductive NMB8-30GM65-E0-FE-V1 908453 shielded NPN
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
8 mm
Outputs
NPN
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NMB8-30GM65-E0-FE-V1
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Switching distance (max.)
8 mm
- Outputs
NPN
- Enclosure material
Stainless steel V2A
- Model
Inductive
- Material properties
rust-proof
- Installation type
shielded
- Connector
M12 plug (4-pin)
- Features
LED indicator
- Min. temperature
-40 °C
- Max. temperature
70 °C
IP67
IP68
IP69K
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
10 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2627771 Pepperl+Fuchs Sensor Inductive NMB8-30GM65-E0-FE-V1 908453 shielded NPN
User & Safety Instructions
User & Safety Instructions 2627771 Pepperl+Fuchs Sensor Inductive NMB8-30GM65-E0-FE-V1 908453 shielded NPN
Description
Sensing distance: 8 mm, Installation: Flush (requirements: See drawing below), Switching function: Normally open contact (NO), Output type: NPN, Operating voltage: 10 ... 30 V DC, operating current = 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: Closer (NO)Output type: NPNSwitching distance: 8 mmInstallation: Flush (requirements: See drawing below)Output polarity: DCSafe switching distance: 0 ... 6.48 mmActuator: Ferromagnetic objectsReduction factor forAl: 0Reduction factor rCu: 0Reduction factor rV2A (1.4301) : 0.6 - 0.8Reduction factor rSt37: 1Reduction factor forMS: 0Output type: 3-wireCharacteristicsOperating voltage 10 ... 30 V DCSwitching frequency 10 HzHysteresis: 3 ... 15 type. 5%Reverse polarity protection: YesShort-circuit protection: YesVoltage drop: ≤ 2 VOperating current ≤ 200 mACurrent consumption: 14 mAResidual current ≤ 10 µADisplays/controlsPower indicator: 4-way dual LED | Green:Power | Yellow: OutputCompliance with standards and directivesCompliance Standards EN 60947-5-2:2007 | IEC 60947-5-2:2007Approvals and certificatesUL approval: CULus Listed, General PurposeCSA approved: CCSAus Listed, General PurposeCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -40 ... 70 °C (-40 ... 158 °F)Mechanical data:Connection type: Device plug V1 (M12 x 1), 4-pinHousing material: Stainless steel 1.4305 / AISI 303 (V2A)Face: Stainless steel 1.4305 / AISI 303 (V2A)Protection class: IP67 / IP68 / IP69K - depending on the connection cable according to the cable specification
