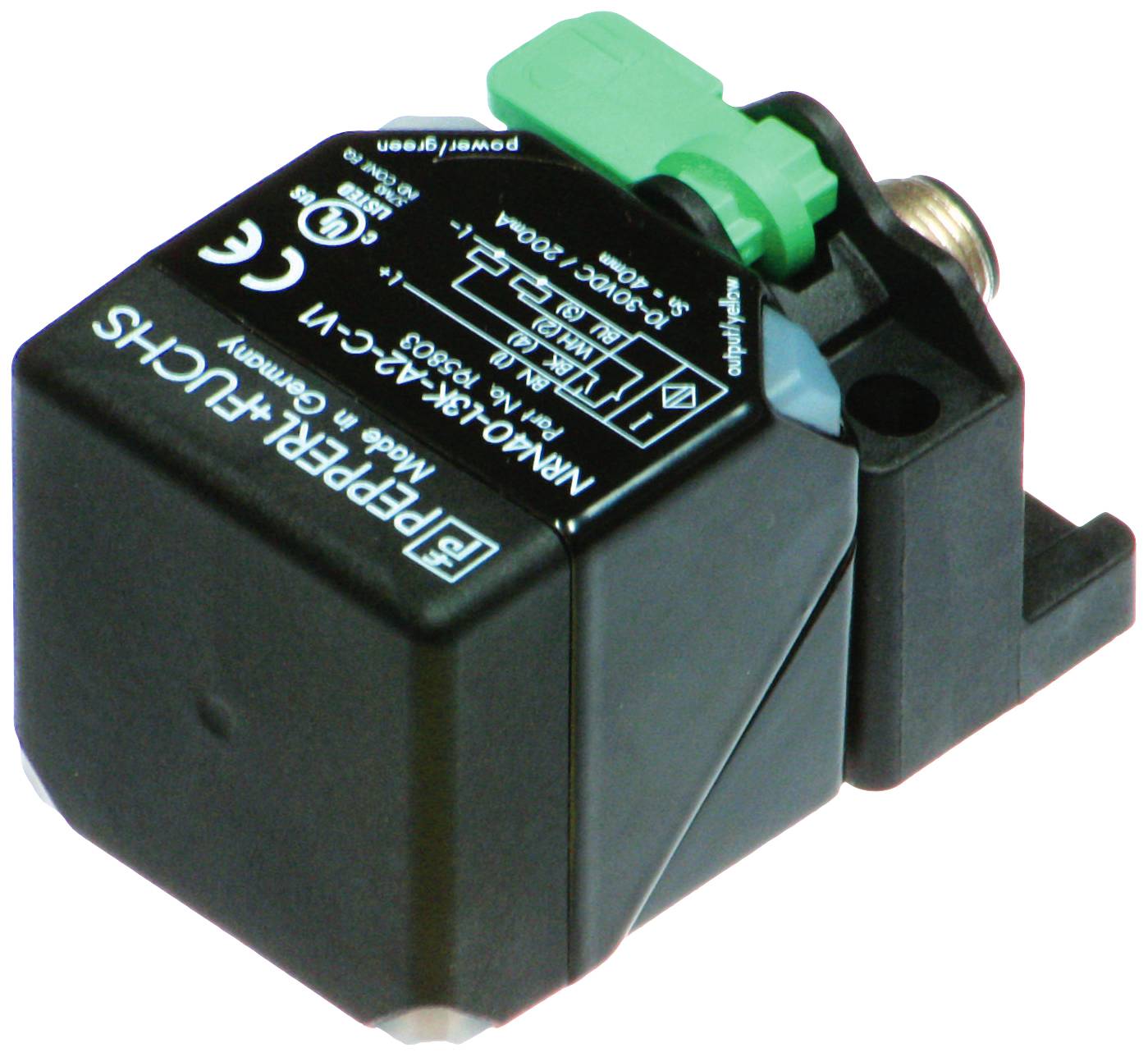

Pepperl+Fuchs Sensor Inductive NRN40-L3K-A2-C-V1 306534-0108 M12 non-shielded PNP
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
Antivalent
Switching distance (max.)
40 mm
Outputs
PNP
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
NRN40-L3K-A2-C-V1
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
Antivalent
- Switching distance (max.)
40 mm
- Outputs
PNP
- Enclosure material
GD-ZnAl4Cu1
- Model
Inductive
- Installation type
non-shielded
- Size
M12
- Connector
M12 plug (4-pin)
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
180 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628483 Pepperl+Fuchs Sensor Inductive NRN40-L3K-A2-C-V1 306534-0108 M12 non-shielded PNP
User & Safety Instructions
User & Safety Instructions 2628483 Pepperl+Fuchs Sensor Inductive NRN40-L3K-A2-C-V1 306534-0108 M12 non-shielded PNP
Description
Switching distance: 40 mm, installation: Non-flush, switching function: Antivalent, output type: PNP, operating voltage: 10 ... 30 V DC, operating current: 0 ... 200 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: AntivalentOutput type: PNPSwitching distance: 40 mmInstallation: Non-flushOutput polarity: DCSafe switching distance: 0 ... 32.4 mmReal switching distance: 36 ... 44 mmReduction factor forAl: 1Reduction factor rCu: 1Reduction factor rV2A (1.4301) : 1Reduction factor rSt37: 1Output type: 4-wireCharacteristicsOperating voltage 10 ... 30 V DCSwitching frequency: 0 ... 180 HzHysteresis: 2 ... 15%Reverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop: ≤ 2.5 VOperating current: 0 ... 200 mAResidual current: 0 ... 0.5 mA type. 0.01 mANo-load current ≤ 25 mAStandby delay: 15 msMagnetic DC field 200 MTMagnetic field: 200 MTOperating voltage display: LED, greenSwitching status indicator: LED, yellowFunctional safety characteristicsMTTFd: 1123 a.Service life (TM): 20 a.Diagnostic coverage level (DC): 0%Compliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012Approvals and certificatesProtection class: II Rated insulation voltage 60 V. Rated surge voltage resistance 800 V.UL approval: CULus Listed, General PurposeCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 70 °C (-13 ... 158 °F)Storage temperature: -40 ... 85 °C (-40 ... 185 °F)Mechanical data:Connection type: Device plug M12 x 1 , 4-pinHousing material: GD-ZnAl4Cu1, coated | Mounting flange PA6-GF35Front face: PA 6 Grivory GVN-35HProtection class IP67Weight 180 g
