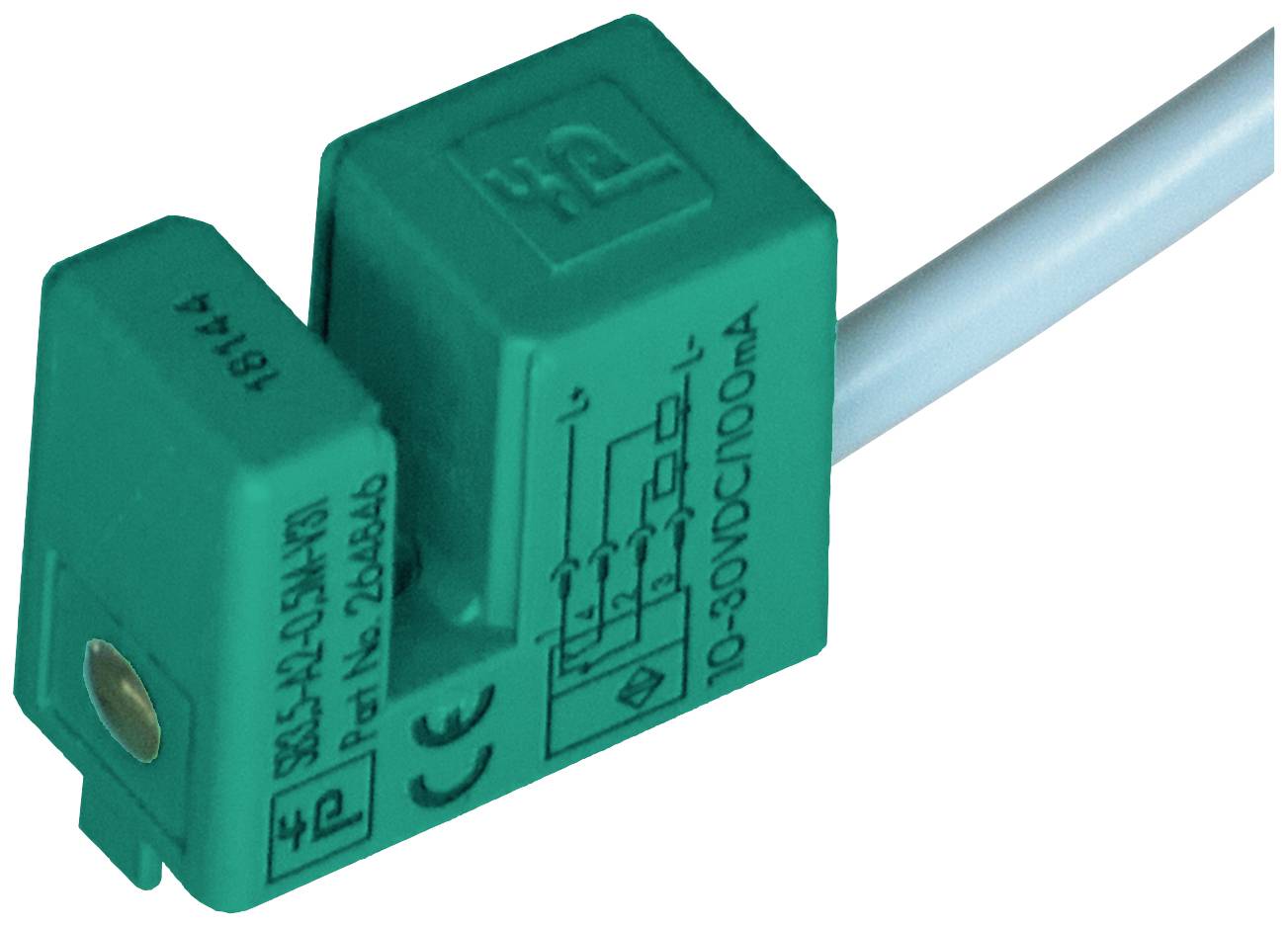

Pepperl+Fuchs Sensor Inductive SB3,5-A2-0,5M-V31 264846 PNP
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
Antivalent
Outputs
PNP
Model
Inductive
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
SB3,5-A2-0,5M-V31
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
Antivalent
- Outputs
PNP
- Enclosure material
PBTB
- Model
Inductive
- Connector
Cable
- Cable length
500 mm
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP67
- Content
1 pc(s)
- Wireless charging
No
- Switching frequency
3000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2628012 Pepperl+Fuchs Sensor Inductive SB3,5-A2-0,5M-V31 264846 PNP
User & Safety Instructions
User & Safety Instructions 2628012 Pepperl+Fuchs Sensor Inductive SB3,5-A2-0,5M-V31 264846 PNP
Description
Slot width: 3.5 mm, switching function: Antivalent, output type: PNP, operating voltage: 10 ... 30 V DC, operating current: 0 ... 100 mA
This text is machine translated.
This text is machine translated.
Features
- General dataSwitching function: AntivalentOutput type: PNPSlot width 3.5 mmImmersion depth (lateral): 5 ... 7 mmOutput polarity: DCOutput type: 3-wireCharacteristicsOperating voltage 10 ... 30 V DCSwitching frequency: 0 ... 3000 HzHysteresis: 0.1 ... 0.4 mmReverse polarity protection: Reverse polarity protectedShort-circuit protection: IsochronousVoltage drop: ≤ 2 VOperating current: 0 ... 100 mANo-load current ≤ 15 mASwitching status indicator: LEDCompliance with standards and directivesCompliance STANDARDS EN 60947-5-2:2007 | EN 60947-5-2/A1:2012 | IEC 60947-5-2:2007 | IEC 60947-5-2 AMD 1:2012Approvals and certificatesUL approval: CULus Listed, General PurposeCSA approved: CCSAus Listed, General PurposeCCC approval: Products with a maximum operating voltage of ≤36 V are not subject to approval and therefore do not have a CCC marking.Ambient conditionsAmbient temperature: -25 ... 85 °C (-13 ... 185 °F)Mechanical data:Connection type: Cable connector M8 x 1 , 4-pin , cable: PVC , L = 500 mm ± 5 mmHousing material: Crastin (PBTB)Protection class IP67Cable Cable diameter 3 mm + 0.3 mm Bending radius > : 10 x cable diameterGeneral informationDelivery information: Screw M 1.7 x 10, nut M 1.7
