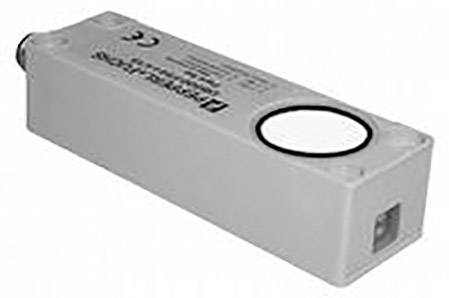

Pepperl+Fuchs Sensor Ultrasound Analogue UB2000-F54-U-V15 Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
Analogue
Switching distance (max.)
2000 mm
Datasheet (PDF)
Technical specifications
- Detection range 80 mm - 2000 mm
- Blind zone: 0 mm - 80 mm
- Setting range 100 mm - 2000 mm
- Standard plate 100 mm x 100 mm
- Converter frequency: Approx. 175 kHz
- Response delay: ≤ 150 ms
- Green LED: Steady green: Power indicator, flashing green: Learning function
- LED red: Flashing: Normal operation: Malfunction, learning function: Object not detected, permanent: Learning function, object unsafe
- No-load current ≤ 55 mA
- Storage temperature: -40 °C to +85 °C.
- Resolution 0.47 mm
- Synchronization frequency, common mode: Max. 33 Hz
- Reproducibility: ± 0.1% of the final value
- Default setting: Evaluation limit A1: 100 mm, evaluation limit A2: 2000 mm
- Converter: Epoxy resin/glass-shout ball mixture, foam polyurethane
- Weight 100 g
- Characteristic deviation: ± 1% from the end value
- Load impedance: ≥ 1 kOhm
- Packaging type
Piece
- Product type
Sensor
- Type
UB2000-F54-U-V15
- Min. operating voltage
15 V DC
- Max. operating voltage
30 V DC
- Operating voltage
15 - 30 V DC
- Outputs
Analogue
- Switching distance (max.)
2000 mm
- Model
Ultrasound
- Features
LED indicator
- Connector
M12 (5-pin)
- Enclosure material
Acrylonitrile butadiene styrene
- Contact type
Analogue
IP65
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
105 mm
- Width
32 mm
- Height
25 mm
- Dim
(L x W x H) 105 x 32 x 25 mm
- UKCA
yes
