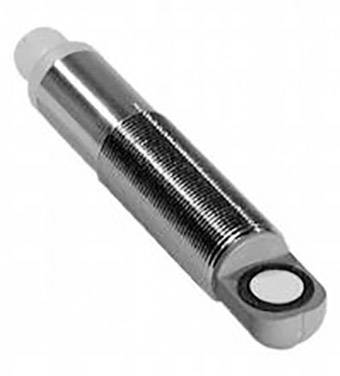

Pepperl+Fuchs Sensor Ultrasound M18 Analogue UB1000-18GM75-I-V15
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
Analogue
Switching distance (max.)
1000 mm
Model
Ultrasound
Datasheet (PDF)
Technical specifications
- Detection range 70 mm - 1000 mm
- Blind zone: 0 mm - 70 mm
- Setting range 90 mm - 1000 mm
- Standard plate 100 mm x 100 mm
- Converter frequency: Approx. 255 kHz
- Response delay: Approx. 125 ms
- Red LED: Permanently red: Malfunction, flashing red: Learning function, object not detected
- No-load current ≤ 45 mA
- Storage temperature: -40 °C to +85 °C.
- Resolution 0.35 mm
- Synchronization frequency, common mode: Max. 40 Hz
- Reproducibility: ± 0.1% of the final value
- Converter: Epoxy resin/glass-shout ball mixture, foam polyurethane, cover PBT
- Weight 60 g
- Characteristic deviation: ± 1% from the end value
- Load impedance 0 Ω - 300 Ω
- Product type
Sensor
- Type
UB1000-18GM75-I-V15
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
Analogue
- Switching distance (max.)
1000 mm
- Model
Ultrasound
- Features
LED indicator
- Connector
M12 (5-pin)
- Size
M18
- Material properties
nickel plated
- Enclosure material
Brass
- Contact type
Analogue
IP67
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
75 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 75 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2230331 Pepperl+Fuchs Sensor Ultrasound M18 Analogue UB1000-18GM75-I-V15
User & Safety Instructions
User & Safety Instructions 2230331 Pepperl+Fuchs Sensor Ultrasound M18 Analogue UB1000-18GM75-I-V15
