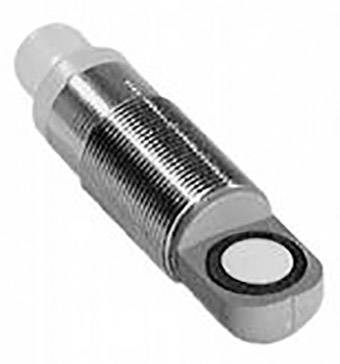

Pepperl+Fuchs Sensor Ultrasound M18 Analogue UB300-18GM40A-I-V1
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
Analogue
Model
Ultrasound
Connector
M12 (4-pin)
Datasheet (PDF)
Technical specifications
- Detection range 35 mm - 300 mm
- Blind zone: 0 mm - 35 mm
- Setting range 50 mm - 300 mm
- Standard plate 100 mm x 100 mm
- Converter frequency: Approx. 390 kHz
- Response delay: Approx. 50 ms
- LED green: Power on
- Red LED: Permanently red: Malfunction, flashing red: Learning function, object not detected
- No-load current ≤ 20 mA
- Storage temperature: -40 °C to +85 °C.
- Resolution: 0.4 mm at max. detection
- Reproducibility: ± 0.5% of the final value
- Default setting: Evaluation limit A1: 50 mm, evaluation limit A2: 300 mm
- Converter: Epoxy resin/glass-shout ball mixture, foam polyurethane, cover PBT
- Weight 25 g
- Characteristic deviation: ± 1% from the end value
- Load impedance 0 Ω - 300 Ω
- Product type
Sensor
- Type
UB300-18GM40A-I-V1
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
Analogue
- Model
Ultrasound
- Connector
M12 (4-pin)
- Size
M18
- Material properties
nickel plated
- Enclosure material
Brass
- Contact type
Analogue
IP67
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- UKCA
yes
