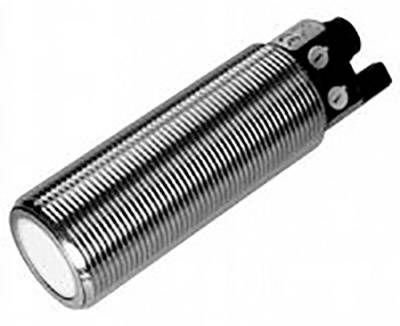

Pepperl+Fuchs Sensor Ultrasound PNP NO UC3500-30GM70-IE2R2-V15 Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
PNP NO
Switching distance (max.)
3500 mm
Datasheet (PDF)
Technical specifications
- Detection range 200 mm - 3500 mm
- Blind zone 0 mm - 200 mm
- Setting range 300 mm - 3500 mm
- Standard plate 100 mm x 100 mm
- Converter frequency: Approx. 120 kHz
- Response delay: ≤ 150 ms
- No-load current ≤ 50 mA
- Storage temperature: -40 °C to +85 °C.
- Interface type: Infrared
- Input/output type: 1 synchronization connection, bidirectional ( default setting
- Common mode ) / Teach-in input
- Input impedance: Type. 900 Ω
- Voltage drop ≤ 3 V
- Pre-setting: 300 mm - 3500 mm (adjustable via potentiometer)
- Converter: Epoxy resin/glass-shout ball mixture, foam polyurethane
- Weight 140 g
- Operating current 300 mA, short-circuit/overload-proof
- Load resistance ≤ 500 Ω
- Residual current ≤ 10 µA
- LED green/yellow: Yellow: Object in evaluation area, green: Teach-in
- Potentiometer: Adjustable switching output
- Number of sensors: Max. 10
- Repeat accuracy ± 5 mm
- Switching hysteresis: 35 mm (parameterizable)
- Design: Cylindrical
- Packaging type
Piece
- Product type
Sensor
- Type
UC3500-30GM70-IE2R2-V15
- Min. operating voltage
20 V DC
- Max. operating voltage
30 V DC
- Operating voltage
20 - 30 V DC
- Outputs
PNP NO
- Switching distance (max.)
3500 mm
- Model
Ultrasound
- Features
LED indicator
- Connector
M12 (5-pin)
- Material properties
nickel plated
- Enclosure material
Brass
- Contact type
1 maker
IP65
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Switching frequency
≤ 2 Hz
- UKCA
yes
