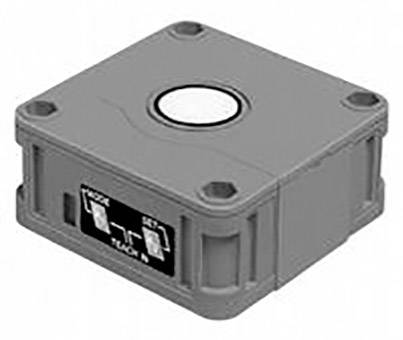

Pepperl+Fuchs Sensor Ultrasound PNP UB2000-F42-E6-V15 Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
PNP
Switching distance (max.)
2000 mm
Datasheet (PDF)
Technical specifications
- Detection range 60 mm - 2000 mm
- Blind zone: 0 mm - 60 mm
- Setting range 90 mm - 2000 mm
- Standard plate 100 mm x 100 mm
- Converter frequency: Approx. 175 kHz
- Response delay: Approx. 150 ms
- LED green: Permanent green: Power on
- Yellow LED: Permanent: Switching state Switching output, flashing: Learning function
- Red LED: Normal operation: Malfunction, learning function: No object detected
- No-load current ≤ 50 mA
- Storage temperature: -40 °C to +85 °C.
- Distance hysteresis: 1 % of the set switching distance
- Synchronization frequency, common mode: Max. 30 Hz
- Rated operating current 200 mA, short-circuit/overload-proof
- Voltage drop: ≤ 2.5 V
- Reproducibility: ≤ 0.5 % from switching point
- Default setting: Switching point A1: 90 mm, switching point A2: 2000 mm, wide ultrasonic lobe
- Converter: Epoxy resin/glass-shout ball mixture, foam polyurethane, cover PBT
- Weight 140 g
- Packaging type
Piece
- Product type
Sensor
- Type
UB2000-F42-E6-V15
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Switching distance (max.)
2000 mm
- Model
Ultrasound
- Features
LED indicator
- Connector
M12 (5-pin)
- Enclosure material
Acrylonitrile butadiene styrene
- Contact type
2 breakers
IP54
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
80 mm
- Width
80 mm
- Height
34 mm
- Dim
(L x W x H) 80 x 80 x 34 mm
- Switching frequency
≤ 2.7 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2229937 Pepperl+Fuchs Sensor Ultrasound PNP UB2000-F42-E6-V15 Piece
User & Safety Instructions
User & Safety Instructions 2229937 Pepperl+Fuchs Sensor Ultrasound PNP UB2000-F42-E6-V15 Piece
