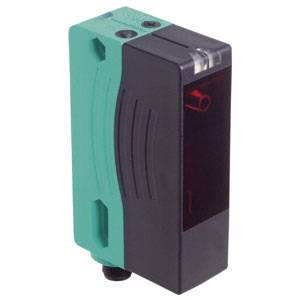

Pepperl+Fuchs Sensor VDM28-50-R1-IR-IO/73c/110/122 239793 Retroreflective 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor
Functions
Retroreflective
Max. operating voltage
30 V DC
Connector
M12 plug (4-pin)
Type
VDM28-50-R1-IR-IO/73c/110/122
Datasheet (PDF)
Technical specifications
- Light spot diameter: 50 mm at a distance of 50 m at 20°C, Function display: 2 yellow LEDs for Switch Status
- Product type
Sensor
- Type
VDM28-50-R1-IR-IO/73c/110/122
- Functions
Retroreflective
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
IO link
- Connector
M12 plug (4-pin)
- Enclosure material
Plastic
Acrylonitrile butadiene styrene
- Transmitter type
Laser diode
- Laser class
1
- Wavelength
780 nm
50 m
- Features
LED indicator
IP67
- Width
25.8 mm
- Height
88 mm
- Depth
54.6 mm
- Dim
(W x H x D) 25.8 x 88 x 54.6 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2130885 Pepperl+Fuchs Sensor VDM28-50-R1-IR-IO/73c/110/122 239793 Retroreflective 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2130885 Pepperl+Fuchs Sensor VDM28-50-R1-IR-IO/73c/110/122 239793 Retroreflective 1 pc(s)
Conformity certificate
Conformity certificate 2130885 Pepperl+Fuchs Sensor VDM28-50-R1-IR-IO/73c/110/122 239793 Retroreflective 1 pc(s)
Description
Universal distance sensor, measurement on reflector, IO-Link interface, measurement methods, Range 50 m, laser light infrared, PRT laser class 1, push-pull output, analog output, M12 plug
This text is machine translated.
This text is machine translated.
Hints
For more information on this 239793, please refer to its datasheet under 'downloadable documents'
