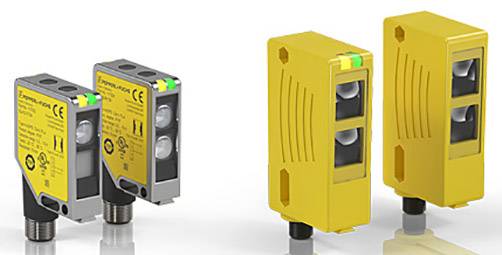

Image similar
Image similar
Pepperl+Fuchs Transmitter SLCS14-500-T 24 V DC
EAN:
Part number:
Item no:
Product type
Transmitter
Type
SLCS14-500-T
Model
Transmitter
Range of uses
PPE
Operating voltage
24 V DC
Datasheet (PDF)
Technical specifications
- Light transmitter: IRED
- Light type: infrared, alternating light, 850 nm
- Operating mode: Start-up/restart inhibit, can be switched off
- Aperture angle: 5 °
- Safety integrity level (SIL): SIL 3
- Performance level (PL): PL e
- Life (TM): 20a
- Power indicator: Green: power on
- Function display: Green: OSSD ON, red: OSSD OFF
- Status indicator: Transmitter unit: Yellow LED: Mode, test or error
- Receiver unit: Yellow LED: Start-up readiness, function reserve or error
- Protection class III, IEC 61140
- Power consumption: Transmitter unit: 5 W.
- Receiver unit 15 W
- Input type: Transmitter unit test
- Input format: Normally closed contact
- Function: Mode A: Open or 0 V.
- Mode B: 24 V DC, 5 mA
- Response time: Max. 54 ms
- Output type: Receiver unit OSSD
- Signal output: PNP semiconductor , monitored against short-circuit and cross-circuit
- Switching current: ON: Max. 0.1 A; OFF: < 5 µA
- Product type
Transmitter
- Type
SLCS14-500-T
- Model
Transmitter
- Range of uses
PPE
- Operating voltage
24 V DC
- Response time
54 ms
- Switching voltage (max.)
24 V DC
- Connector
M12 (4-pin)
M12 (8-pin)
- Transmitter type
IRED
- Wavelength
850 nm
- Outputs
PNP
- Output current
0.1 A
- Performance level
PL e
- Safety integrity level
SIL 3
- Safety rating
4
- Content
1 pc(s)
IP67
- Min. temperature
-35 °C
- Max. temperature
60 °C
Documents & Downloads
Datasheet
Datasheet 2232868 Pepperl+Fuchs Transmitter SLCS14-500-T 24 V DC
User & Safety Instructions
User & Safety Instructions 2232868 Pepperl+Fuchs Transmitter SLCS14-500-T 24 V DC
