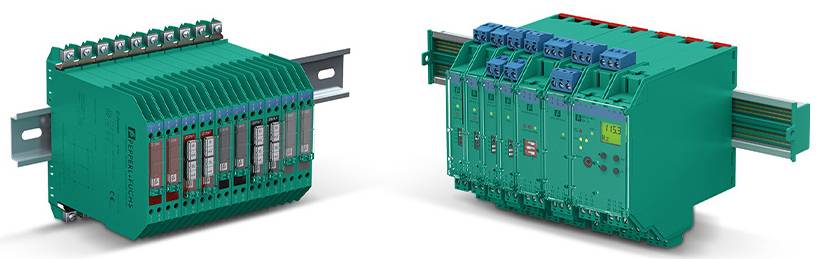

Image similar
Image similar
Pepperl+Fuchs WE 77/Ex-2 230V 129198 Amplifier 1 pc(s)
EAN:
Part number:
Item no:
Product type
Amplifier
Input signal (current) (max.)
8 mA
Input signal (voltage) (max.)
8 V
Type
WE 77/Ex-2 230V
Dim
(L x W x H) 104 x 60 x 110 mm
Datasheet (PDF)
Technical specifications
- Connection side: Field side
- Open circuit voltage/short circuit current: Approx. 8 V DC / approx. 8 mA
- Display elements: LEDs
- Weighs about 410 g
- Input/output: Reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Vrms
- Input/supply: Reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Vrms
- Output/supply: Basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Vrms
- Pick-up/drop delay: Approx. 10 ms / approx. 20 ms
- Power: 145 mW (trapezoidal characteristic curve)
- Type
WE 77/Ex-2 230V
- Product type
Amplifier
- Input signal (current) (max.)
8 mA
- Input signal (voltage) (max.)
8 V
- Dim
(L x W x H) 104 x 60 x 110 mm
- Connection
Clamp
- Output (voltage)
253 V
- Output (current)
2 A
- Operating voltage
198 - 253 V AC
- Max. operating voltage
253 V AC
- Min. operating voltage
198 V AC
- Input signal (voltage)
ca. 8 V DC
- Input signal (current)
ca. 8 mA
- Content
1 pc(s)
- Width
60 mm
- Height
110 mm
- Length
104 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
- Operating voltage U(B)
198...253 V AC
- UKCA
not relevant
