Peter Electronic Versibrake Safe LP 480-60 Plc 2B600.48060 Decelerator Motor power at 400 V 15 kW 400 V AC Nominal curre
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 533.61 / piece)
€ 533.61
plus VAT.
Only 4 Piece(s) available
Highlights & Details

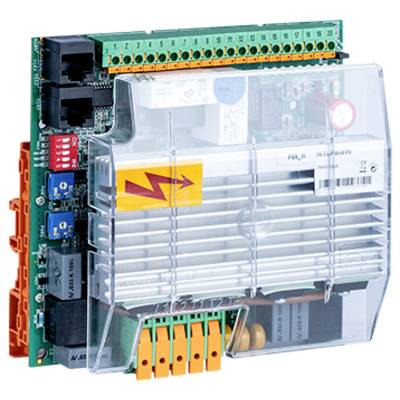

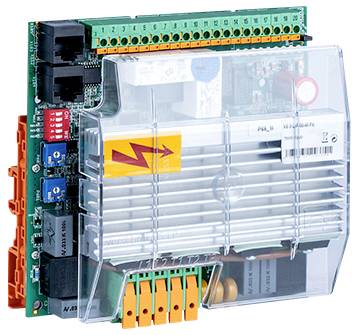

DC brake with device protection, PCB version VersiBrake Safe Plc [60A]
- Brake device in PCB design
- DC brake with fully controlled bridge circuit up to 60A
- Construction without mechanical switching elements in the power circuit
- Integrated standstill detection
- Monitoring the standstill time
- Suitable for all asynchronous motors
- Suitable for IE1, IE2 and IE3 motors
- Self-optimizing braking process
- CANopen on board
- Push-in power and control terminals
- TÜV certified
- Meets the requirements of PL = c / SIL1, according to DIN EN ISO 13849-1:2016-06 / DIN EN 61508-1:2011-02
Technical specifications
- Weight 505 g
- Product type
Decelerator
- Motor power at 400 V
15 kW
- Operating voltage
200...480 V AC (±10%), 50/60 Hz.
- Nominal voltage
400 V AC
- Manufacturer part #
2B600.48060
- Nominal current
60 A
- Nominal current - rounded value
60 A
- Type
Versibrake Safe LP 480-60 Plc
- Dim
(W x H x D) 140 x 130 x 65 mm
- Width
140 mm
- Height
130 mm
- Depth
65 mm
- Max. temperature
45 °C
- Min. temperature
0 °C
Documents & Downloads
Datasheet
Datasheet 3766805 Peter Electronic Versibrake Safe LP 480-60 Plc 2B600.48060 Decelerator Motor power at 400 V 15 kW 400 V AC Nominal curre
User & Safety Instructions
User & Safety Instructions 3766805 Peter Electronic Versibrake Safe LP 480-60 Plc 2B600.48060 Decelerator Motor power at 400 V 15 kW 400 V AC Nominal curre
Description
The new VersiBrake Safe LP 480-60 Plc keeps all the performance and safety relevant values of a motor under control, so that all components are protected to the maximum extent during braking and a highest level of operational safety can be ensured. The European DIN standards (DIN EN ISO 13849-1:2016-06 / DIN EN 61508-1:2011-02) for the safety of woodworking machines are met. Safety functions include, for example, preventing accidental start-up due to a fault, monitoring or controlled stop-down, controlling the (protective) door lock or also external standstill monitoring with intelligent standstill detection.
