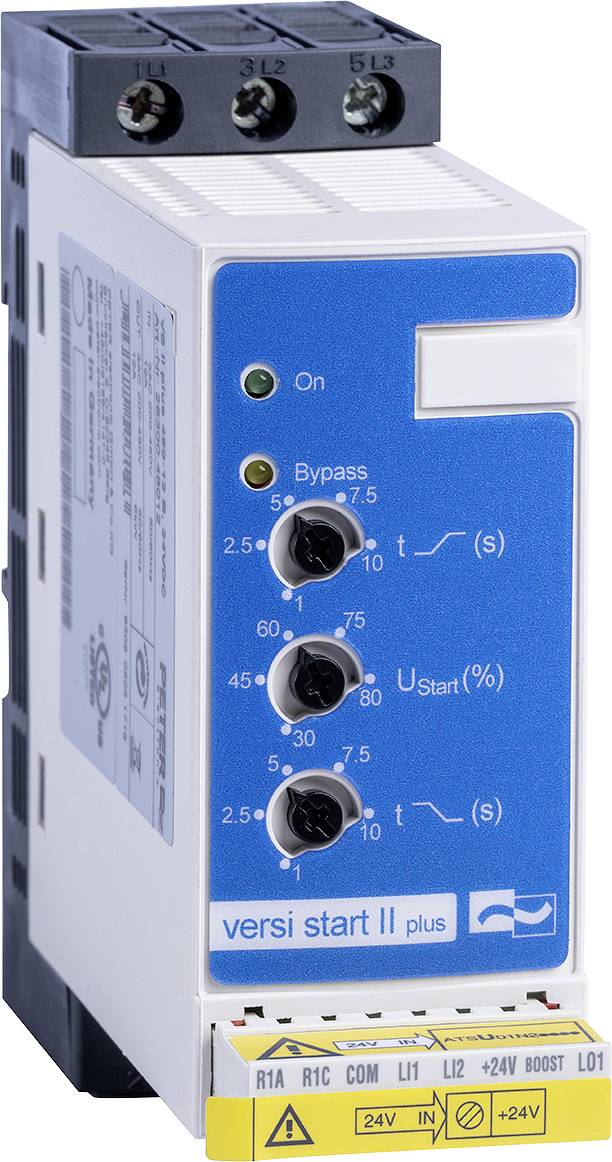

'Versi Start II Plus' motor starter with labeled controls, indicators, and connection ports. Used for motor control applications.

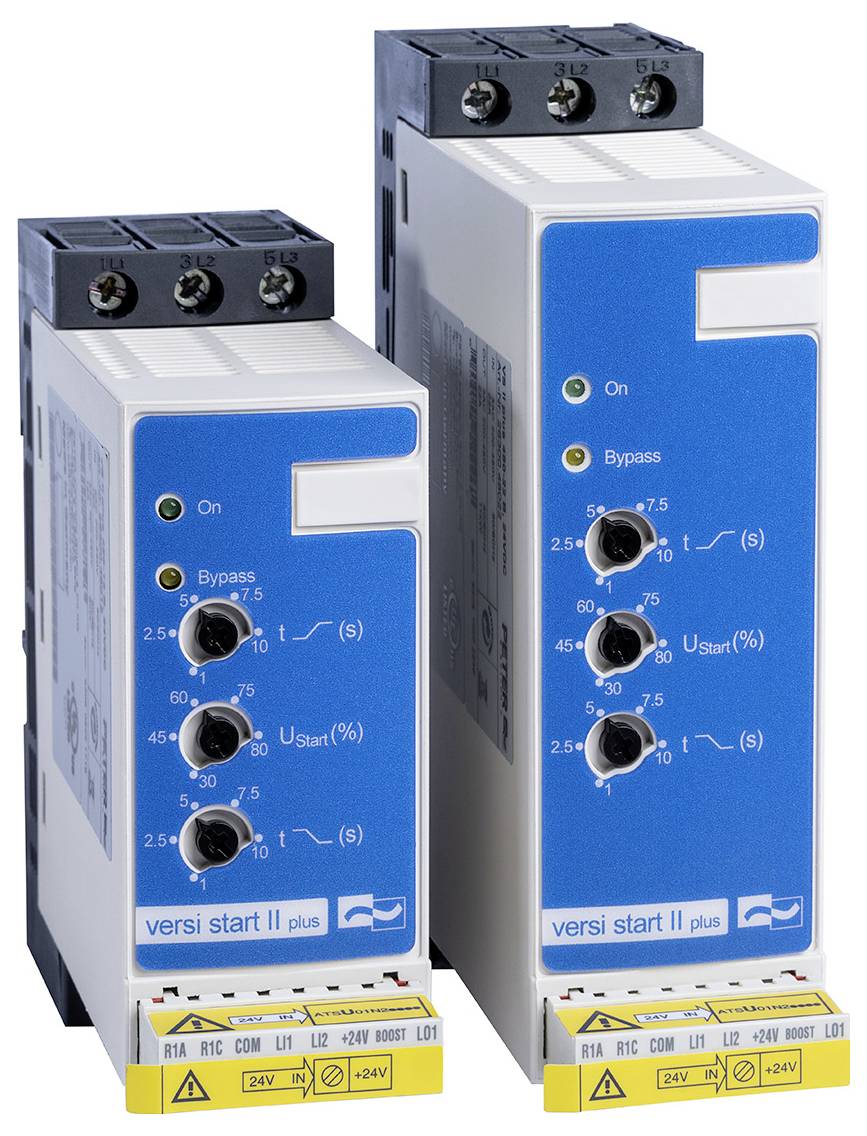

Two blue Versi Start II plus motor starters with adjustable dials for settings, indicator lights for 'On' and 'Bypass', and labeled connections.

1/2

Datasheet (PDF)

Fast track dispatch on Wed, 9 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 134.45 / piece)

€ 134.45

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Soft start-up device VersiStart II plus 480-12 B

Two-phase-controlled soft start-up device
Microcontroller synchronised
Optimised soft start-up
Current and three-phase reduction with start-up
Simple installation, to snap open on 35 mm standard rail or directly mountable
Integrated bypass relay
Parameterization with three potentiometers
No network neutral conductor (N) required
Replacement for Stern-/Dreieckschalter Inclusive bulb
Control side screw terminals
Compact design - 45 x 124 x 131mm (6-12A)
Protection type IP20

Technical specifications

Protection type IP20
Integrated bypass relay

Motor voltage: 3x200-480 V AC

Product type: Soft starter

Supply current: 12 A

Motor power at 400 V: 5.5 kW

Operating voltage: 3x200-480 V AC

Nominal voltage: 480 V AC

Operating phases: 2

Type: Two-phase-controlled soft start-up device

Manufacturer part #: 26300.48012

Nominal current: 12 A

Nominal current - rounded value: 12 A

Type: VersiStart II plus 480-12 B, 24VDC

Motor power at 230V / 400V: 5,5 kW

Slow-down time: 1 - 10 s

Dim: (L x W x H) 131 x 45 x 124 mm

Connection: Screw terminal

Power rating: 24 V DC

Width: 45 mm

Height: 124 mm

Length: 131 mm

Max. temperature: 50 °C

Min. temperature: -10 °C

Documents & Downloads

Datasheet

Datasheet 3715760 Peter Electronic VersiStart II plus 480-12 B, 24VDC 26300.48012 Soft starter Motor power at 400 V 5.5 kW 480 V AC Nomina

User & Safety Instructions

User & Safety Instructions 3715760 Peter Electronic VersiStart II plus 480-12 B, 24VDC 26300.48012 Soft starter Motor power at 400 V 5.5 kW 480 V AC Nomina

Description

The VersiStart II plus soft start units extend the 2-phase series by a further five power variants from 6 to 32A. The "Plus" offers even more robustness, high performance and high maximum switching frequency.

This text is machine translated.

Features

Soft start-up and deceleration
Potential free control input for soft acceleration and deceleration
3 separate adjustable parameters: Start-up time, start-up voltage, slow-down time
Boost start can be selected
Potential-free relay output (closed when engine is running)
